DESCRIPTION:
促销8
|
Model |

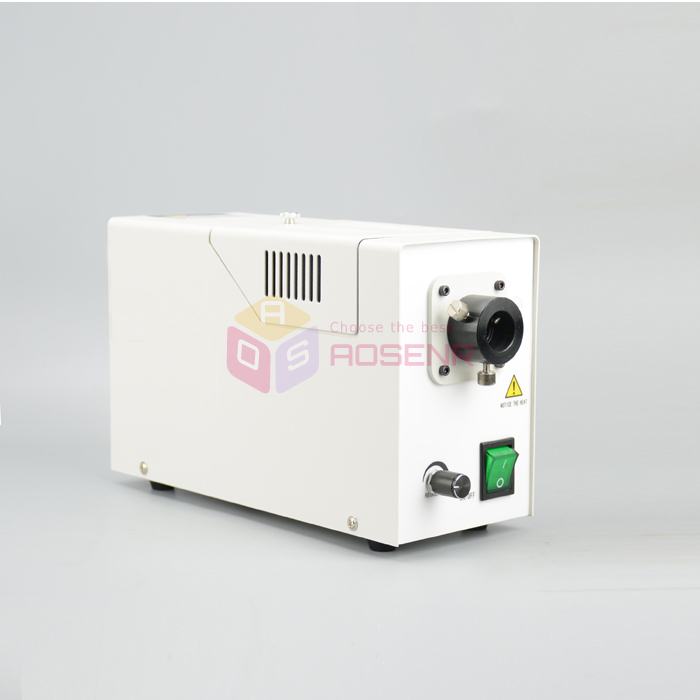

Cold light source XD-301 |
|
Voltage |
AC110V/AC220V |
|
Color Filters |
Warm Yellow |
|
Lamp Model |
24V 150W |
|
Color Temperature |
≥3200K |
|
Optical Port Dimensions |
Diameter 8mm/0.31in-22mm/0.87in |
|
Leakage current |
less than 0.5MA |
|
Machine noise |
less than 55DB |
|
Working temperature |
-5℃~45℃ |
|

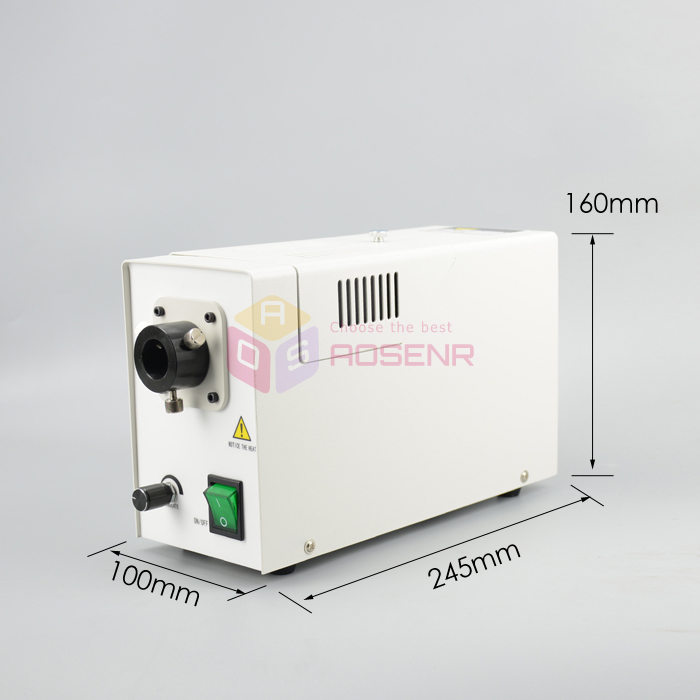

Machine Case size |
245mm*160mm*100mm |
|
Weight |
11 lbs (Around 5 Kg) |
Operating
Information:
Open the package and
take out the cold light source and power cable.
Check if the voltage switch matches the electric voltage of the power outlet
that you are using.
Connect the power cable to the power cable port and then turn on the unit by
switch to "I" the ON/OFF switch.
The light source will begin to work if all the parts of the units are
functioning well.
You can use air pump to check if the light source is running well.
If the light source in functioning properly, adjust the brightness using the
light regulator.
To change the preferred lighting color, insert the color filter into the filter
holder which can be found on the topmost-front part of the unit.
Usage:
1.Make sure the power voltage, have a good ground connection.
2.the dimmer knob counterclockwise rotation in the end, turn on the power switch
micro-light bulb, and then adjust the knob clockwise, from childhood to the
maximum light sink will.
3.the guide beam connector into the cold light source output port, in the case
confidential holes to adjust brightness knob to select the corresponding size.
4.to choose good ventilation during use.
Troubleshooting
and Maintenance:
1.turn on the power
switch, the lamp is not lit fan does not turn, check the fuse is blown, the
power plug and the power network connection is good.
2.the fan is operating normally, check the bulb is damaged or bad.
3.fan as normal but no output, you should check whether the power board voltage
output, without the power supply board failure.
4.the fan does not turn light properly, this time to stop using, check the fan
and fan connections, troubleshooting before use.
Lamp Replacement:
1.when the lamp
replacement, should use the same type halogen bulb.
2.off the power switch, unplug the power connection.
3.unscrew the top of the chassis for lights mouth "captive" screws, take the
mail from the bad bulb lamp holder. The new lamp slowly into the retainer being
(must be in place). Replace the cover and tighten the fixing screws.

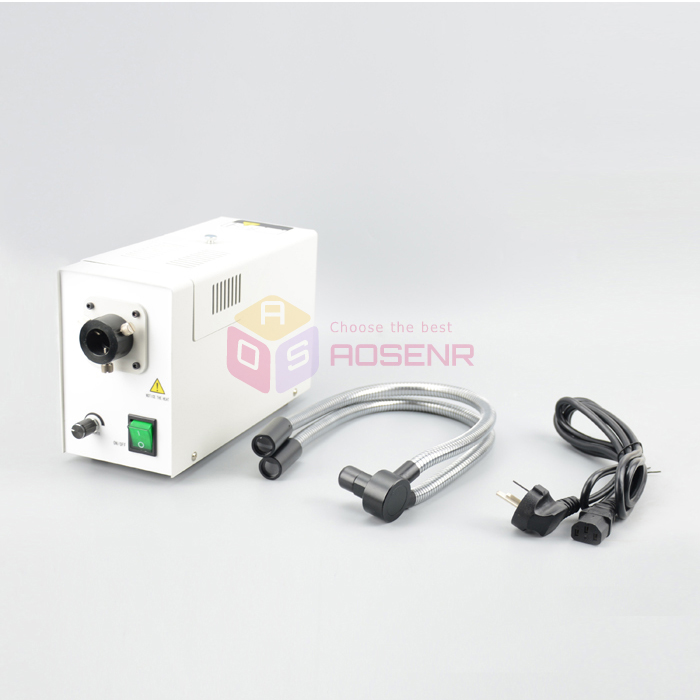

Package included:

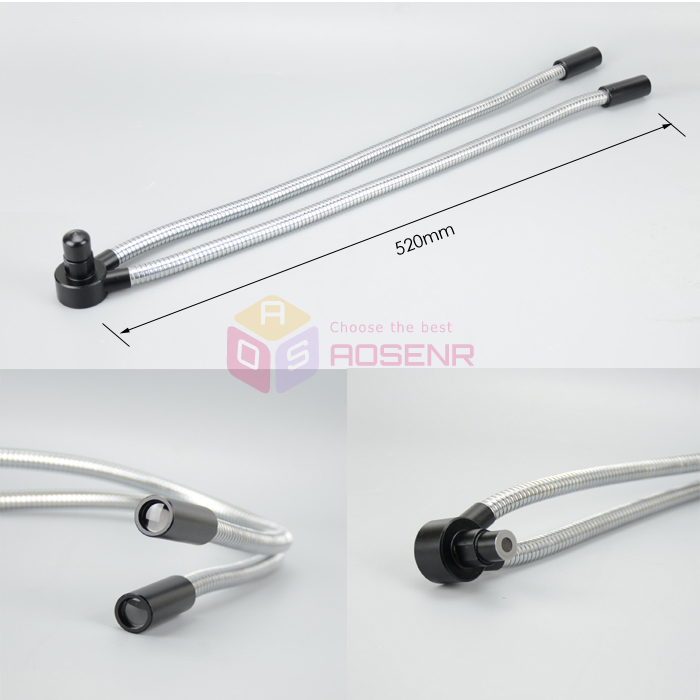

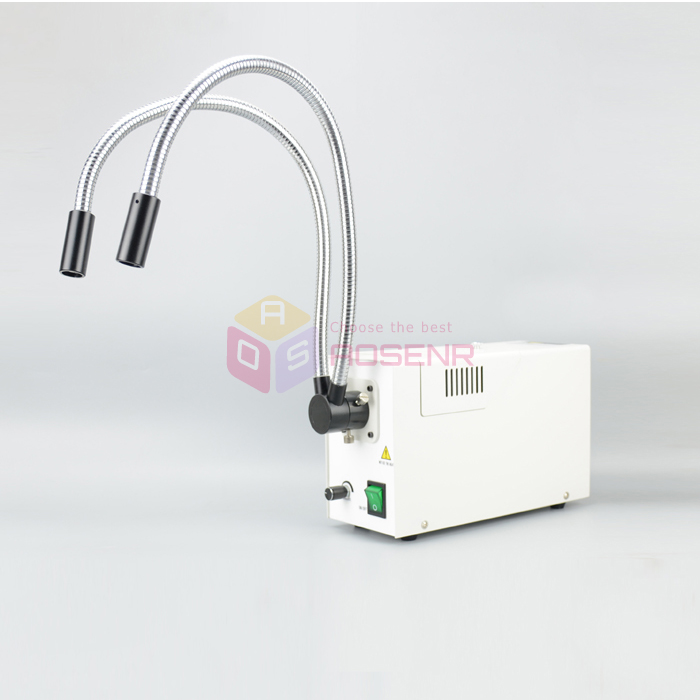

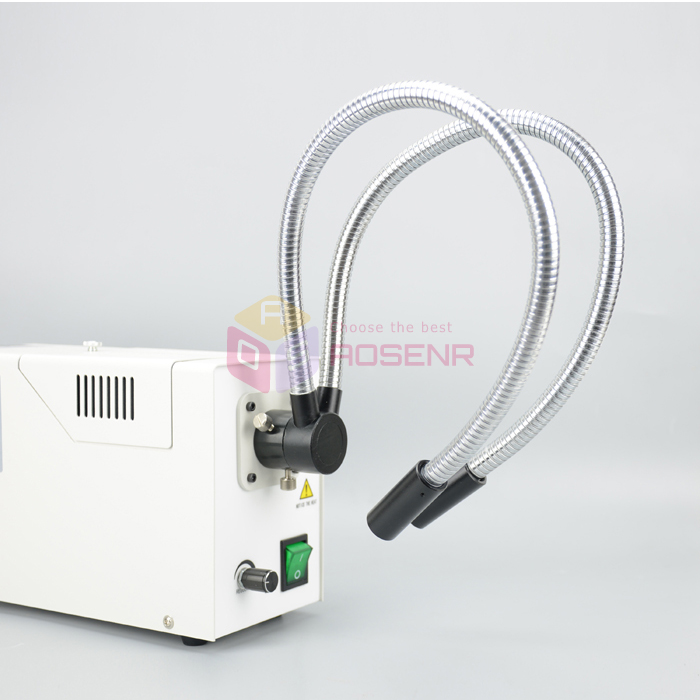

1 X Dual Metal Pipe Cold light source XD-301
|
