UNI-T Digital Automotive Multimeter UT107+ AC DC T-RMS Tester Voltmeter Capacimeter Frequency Meter Temperature Test

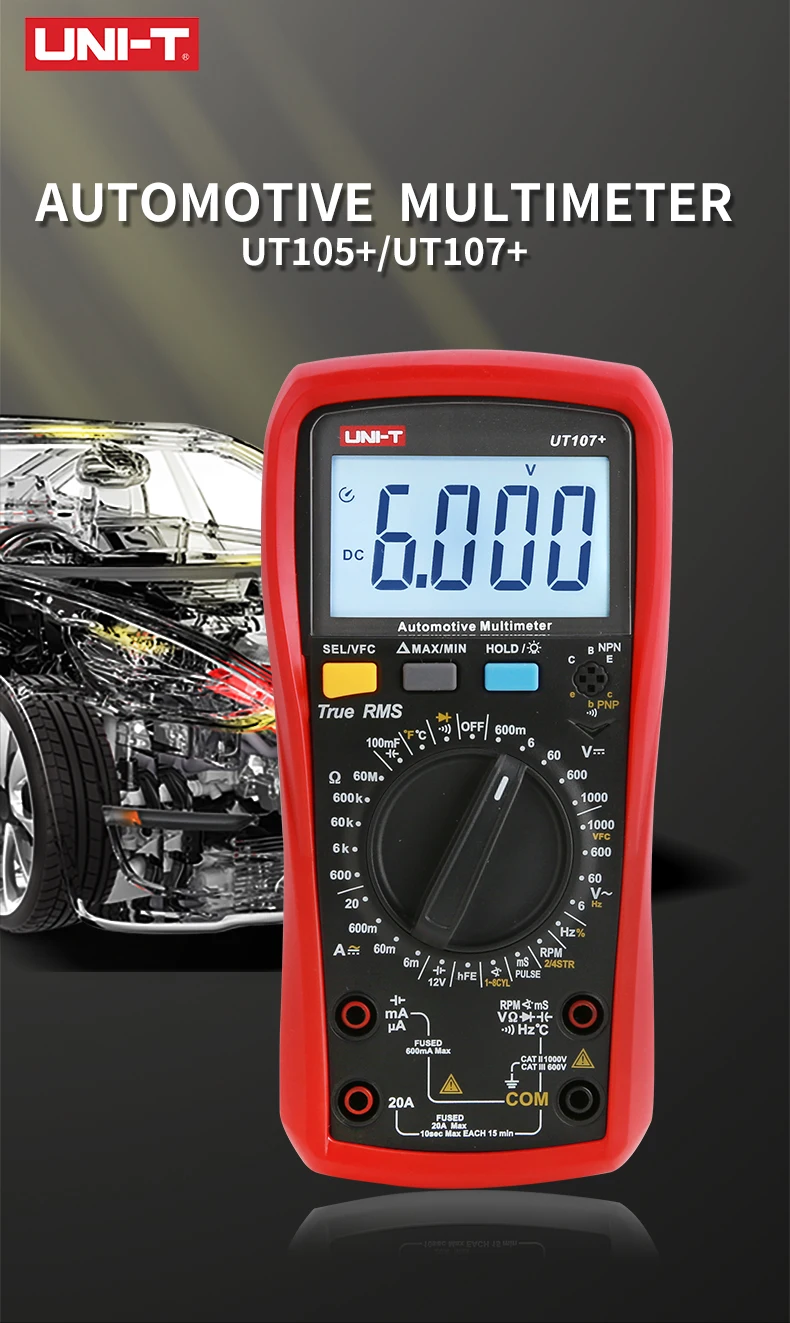

UT105+/UT107+ is a high reliability and high safety handheld car multimeter.
This instrument adopts high-resolution A/D converter and microcontroller data processing technology, with large-screen digital display, full-scale overload protection and unique appearance design, making it an electrical instrument with superior performance and safer use.
This instrument series can be used to measure: AC and DC voltage and current, resistance, diode, triode, circuit on-off, capacitance, frequency, temperature, 1-8CYL dwell angle, 2/4STR speed, pulse width and 12V battery (UT107+ only), etc. With low-pass filtering (VFC), maximum and minimum value/relative value measurement, under-voltage prompt, backlight and automatic shutdown and other functions.
Widely used in: communication, manufacturing, auto repair testing and auto repair fields, making it the right-hand man for electronic and electrical technicians.
Features

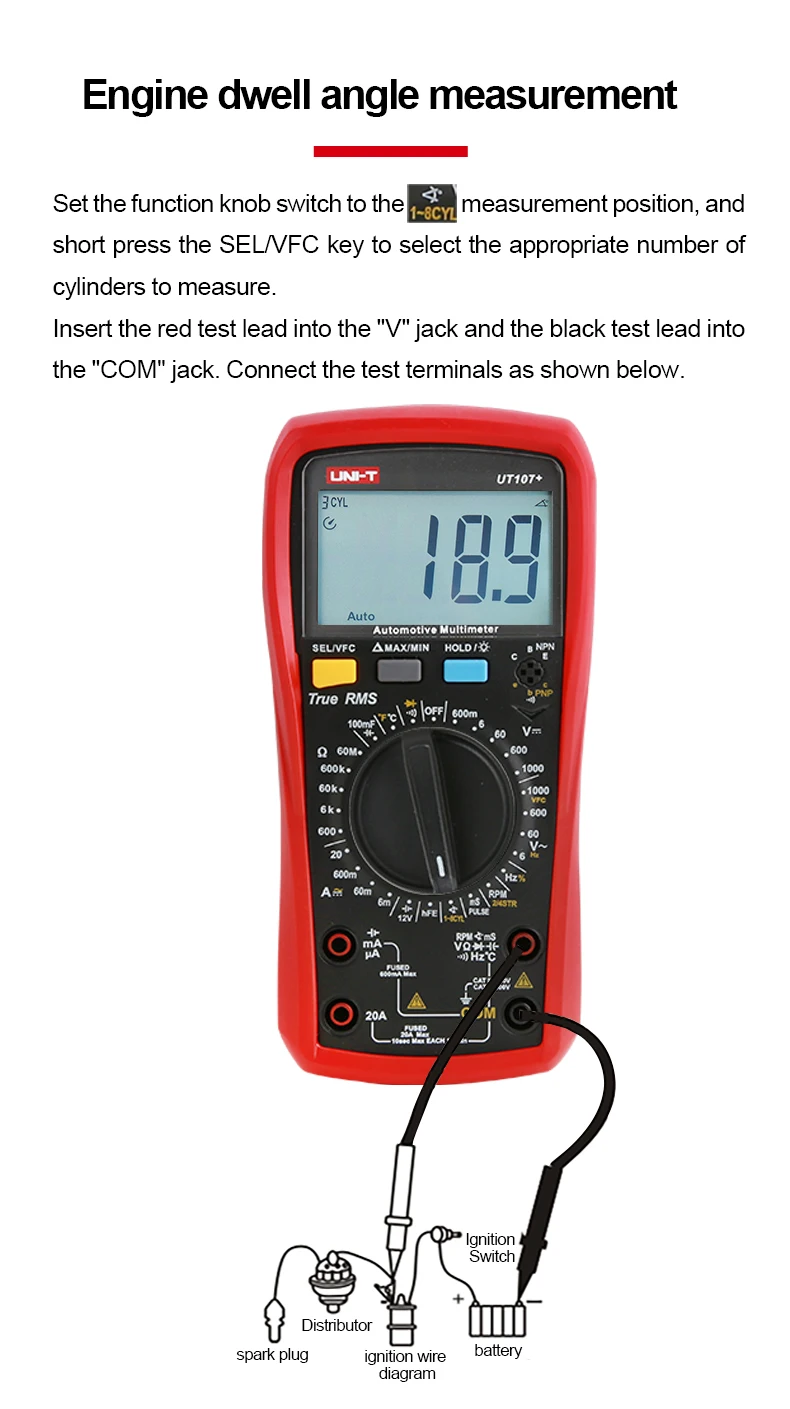

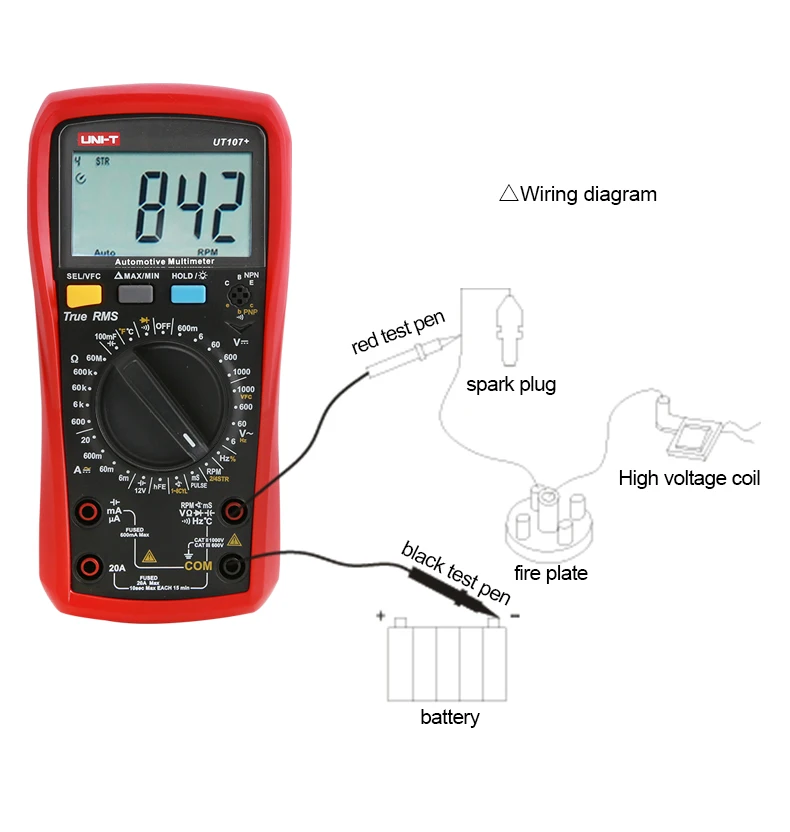

1.1-8CYL dwell angle measurement / 2/4STR speed measurement

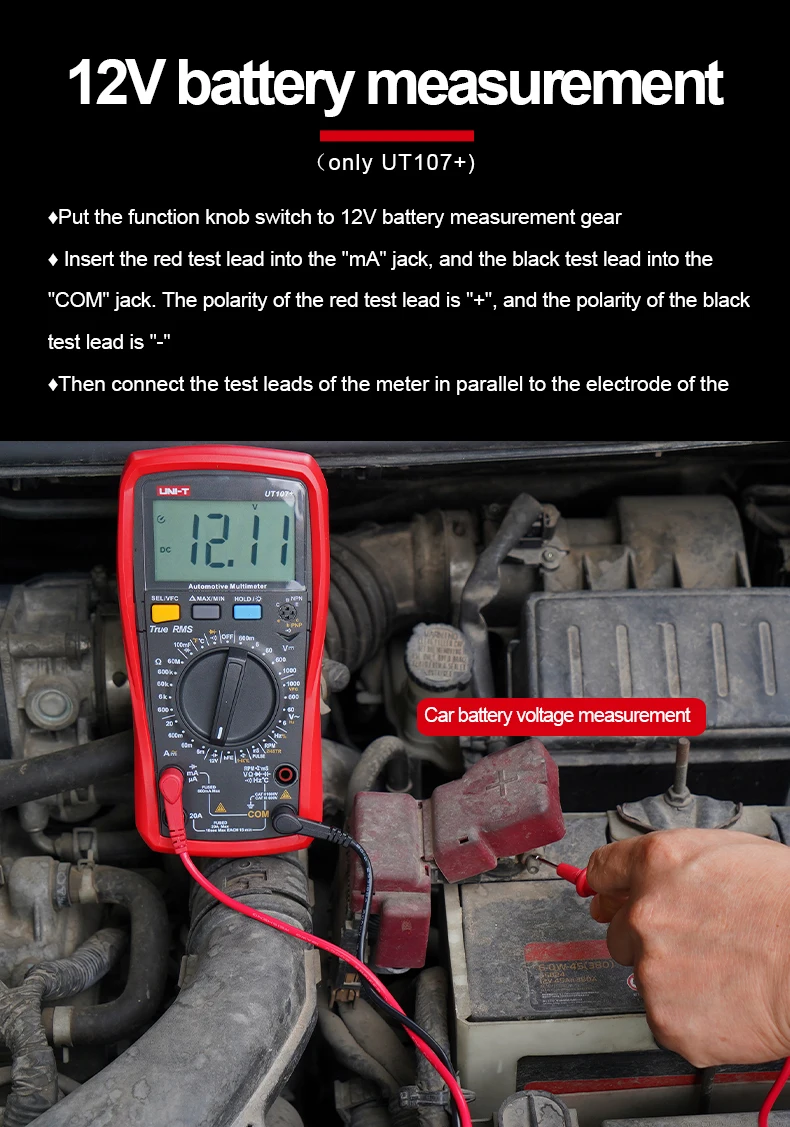

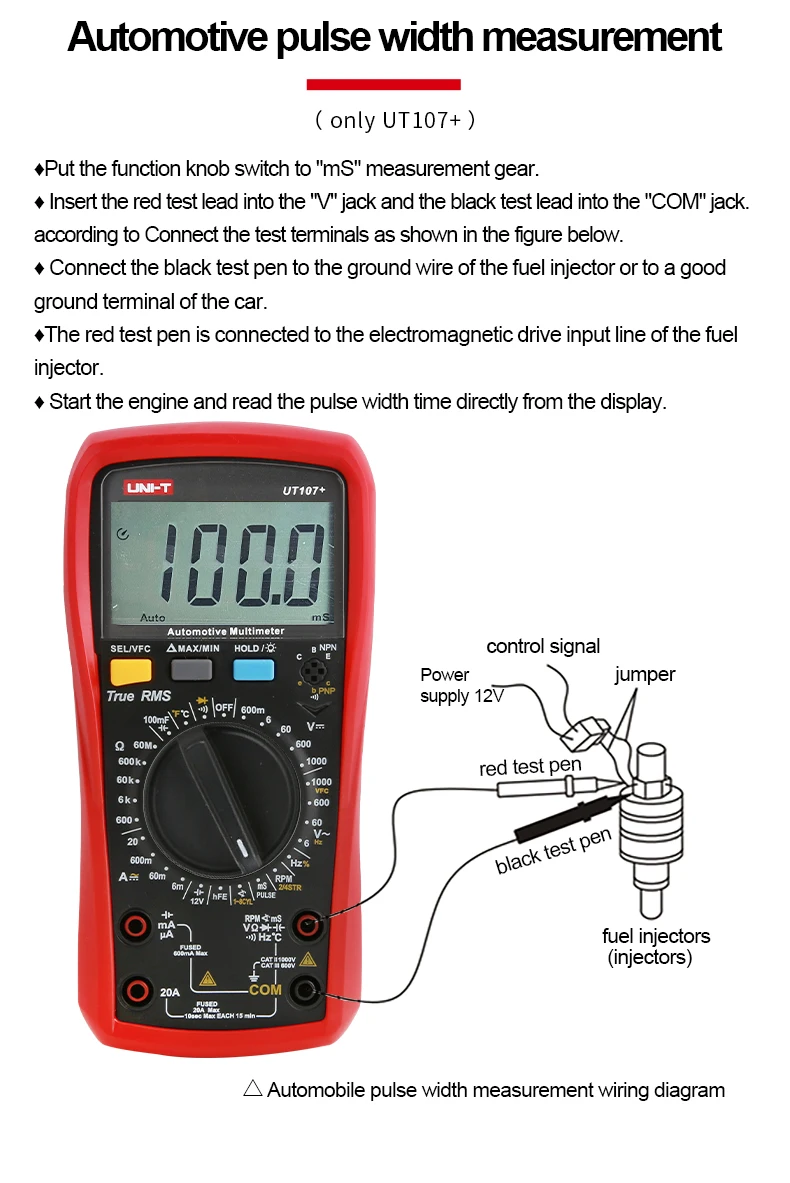

2.Pulse width/12V battery measurement (UT107+ only)
3.True effective value UT105+4000 digits display

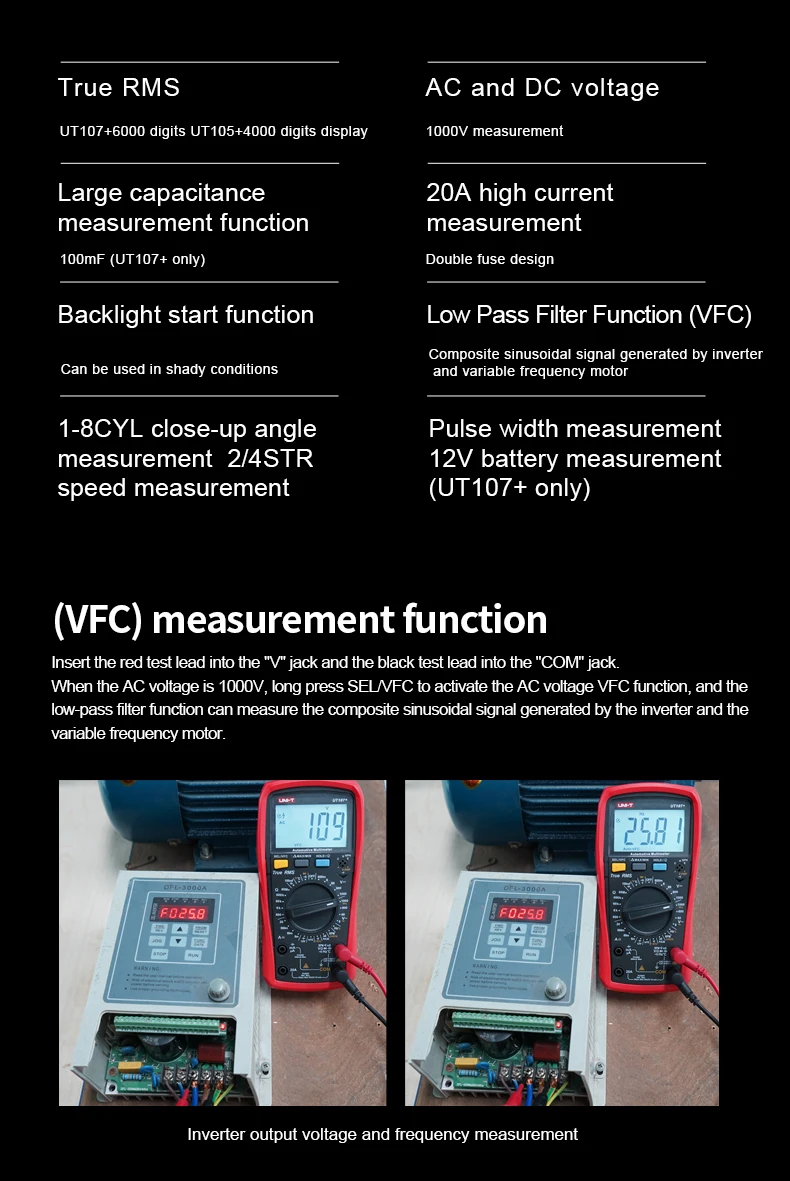

4.Built-in VFC low-pass filter: (only AC1000V file)
5.AC and DC voltage 1000V measurement
6.100mF large capacitance measurement function (UT107+ only)
7.20A high current measurement, double fuse design

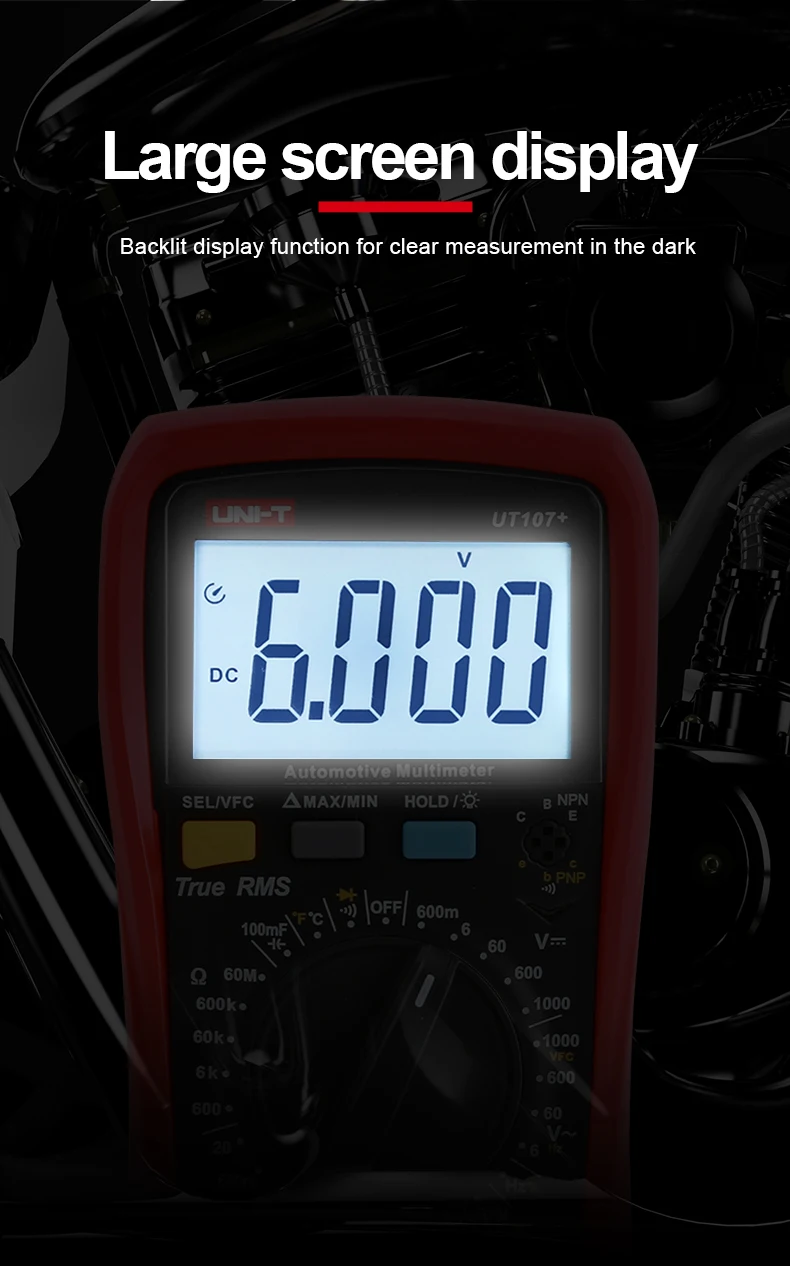

8.Product setting backlight start function: can be used in dark conditions
9.2mm soft rubber protective cover design: prevent 1 meter drop to ensure accuracy

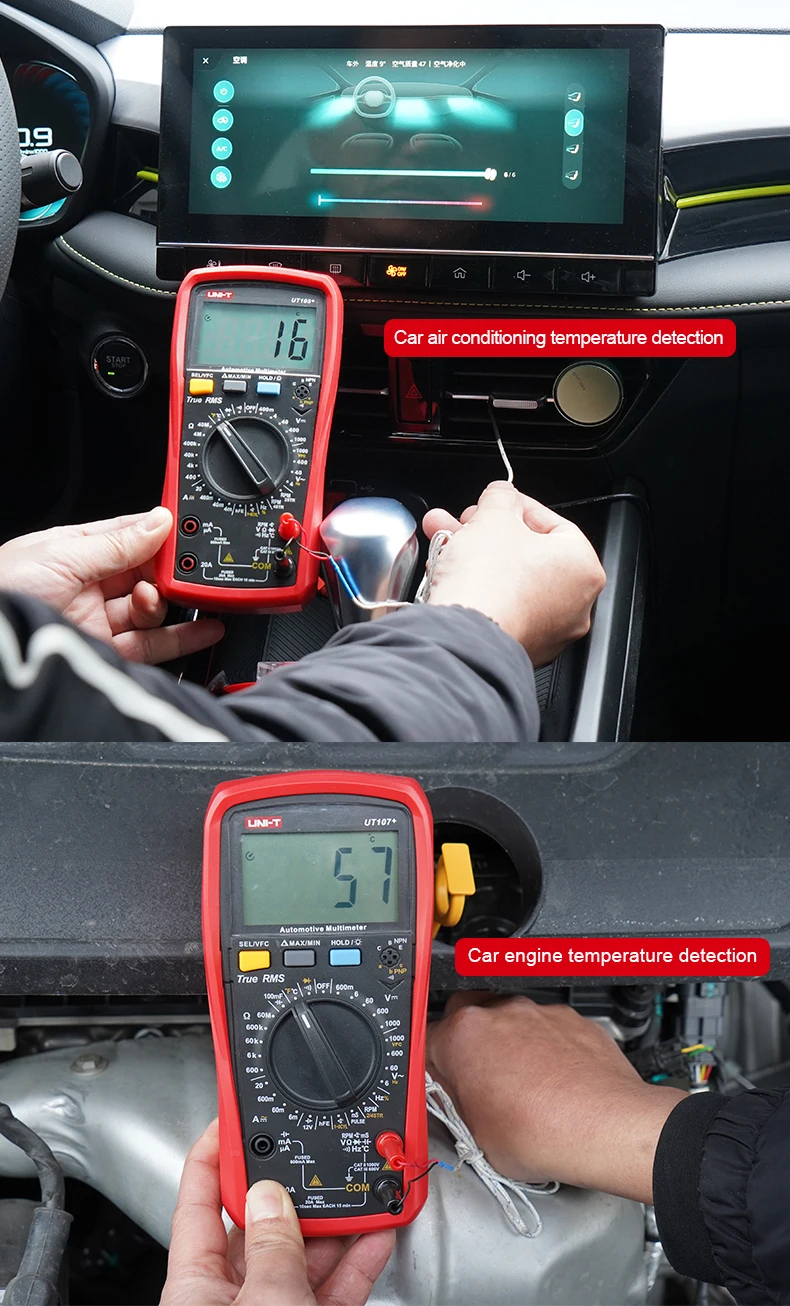

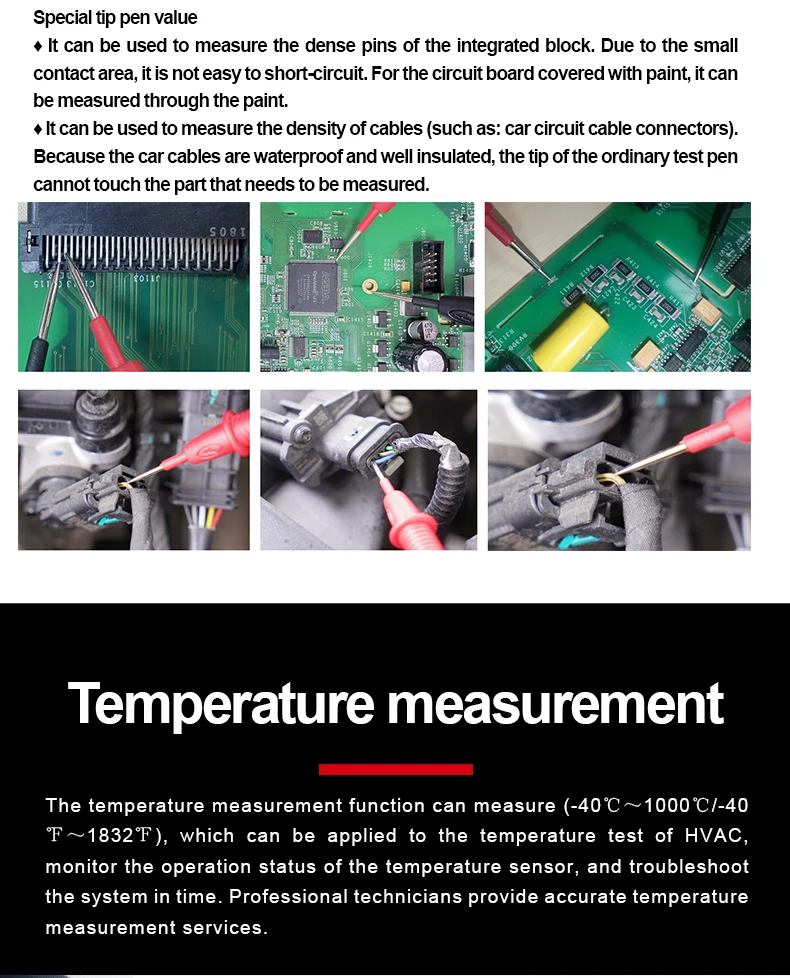

10.Frequency/Duty Cycle/Temperature/Triode Measurements

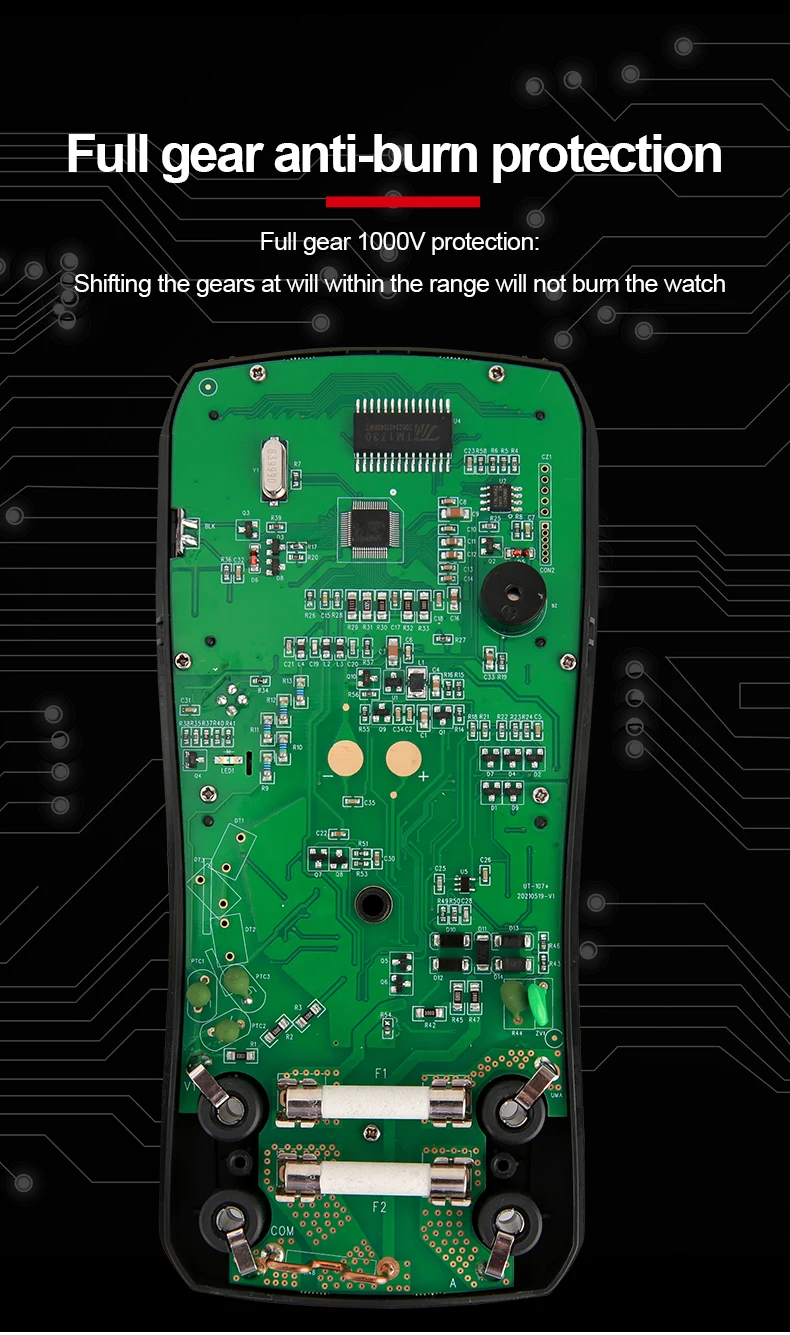

11.1000V full gear intelligent anti-burn

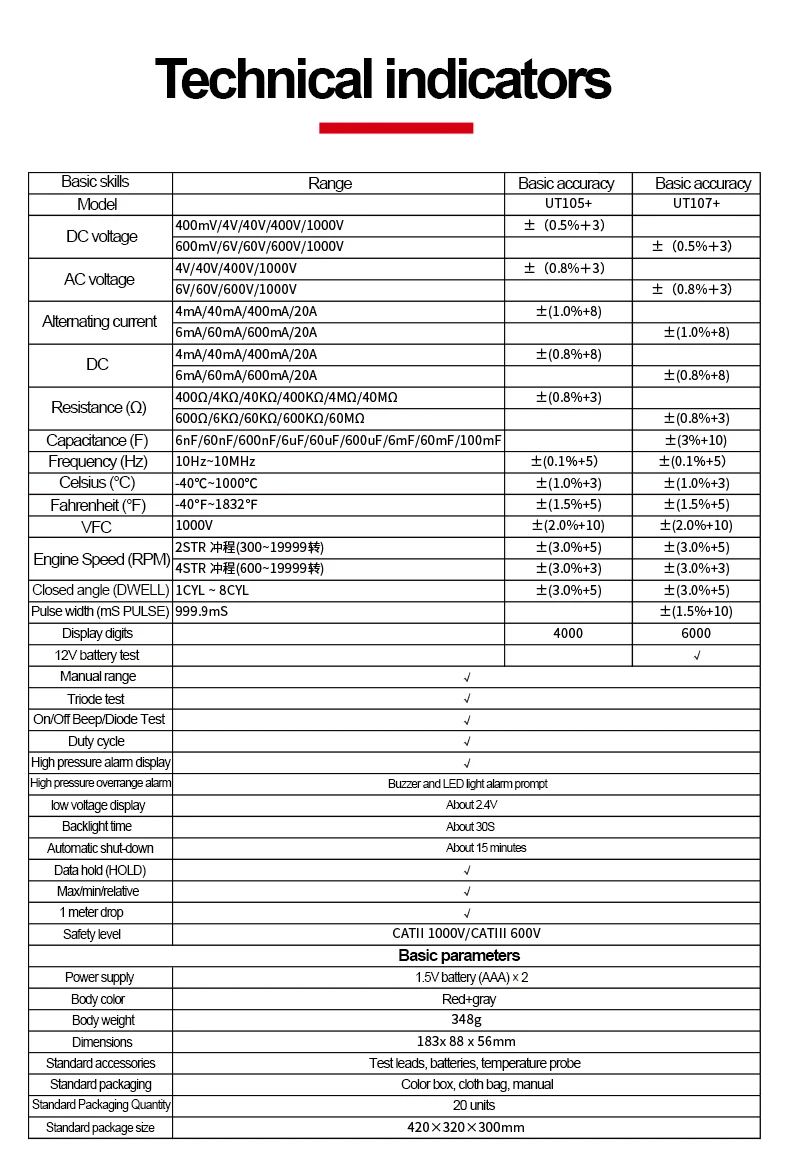

Parameter
|
Model |
Range |
UT105+ |
UT107+ |
|
DC Voltage(V) |
400mV/4V/40V/400V/1000V |
±（0.5%＋3） |
|
|
600mV/6V/60V/600V/1000V |
|
±（0.5%＋3） |
|
|
AC Voltage(V) |
4V/40V/400V/1000V |
±（0.8%＋3） |
|
|
6V/60V/600V/1000V |
|
±（0.8%＋3） |
|
|
AC Current(A) |
4mA/40mA/400mA/20A |
±(1.0%+8) |
|
|
6mA/60mA/600mA/20A |
|
±(1.0%+8) |
|
|
DC Current(uA) |
4mA/40mA/400mA/20A |
±(0.8%+8) |
|
|
6mA/60mA/600mA/20A |
|
±(0.8%+8) |
|
|
Resistance(Ω) |
400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ |
±(0.8%+3) |
|
|
600Ω/6KΩ/60KΩ/600KΩ/60MΩ |
|
±(0.8%+3) |
|
|
Capacitance(F) |
6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF |
|
±(3%+10) |
|
Frequency(Hz) |
10Hz~10MHz |
±(0.1％+5） |
±(0.1％+5） |
|
Celsius(℃) |
-40℃~1000℃ |
±(1.0%+3) |
±(1.0%+3) |
|
Fahrenheit(℉) |
-40℉~1832℉ |
±(1.0%+3) |
±(1.5%+5) |
|
VFC |
1000V |
±(2.0%+10) |
±(2.0%+10) |
|
Engine Speed(RPM) |
2STR |
±(3.0%+5) |
±(3.0%+5) |
|
4STR |
±(3.0%+3) |
±(3.0%+3) |
|
|
Closed Angle(DWELL) |
1CYL~8CYL |
±(3.0%+5) |
±(3.0%+5) |
|
Pulse Width(mS PULSE) |
999.9mS |
|
±(1.5%+10) |
|
Special Function |
|
|
|
|
Display Digits |
|
4000 |
6000 |
|
Manual Range |
|
√ |
√ |
|
Continuity/Diode Test/Triode Test |
|
√ |
√ |
|
On and Off Beep |
|
√ |
√ |
|
Duty Cycle |
|
√ |
√ |
|
High Pressure Alarm Display |
|
√ |
√ |
|
High Pressure Overrange Alarm |
|
√ |
√ |
|
High Current Alarm |
|
√ |
√ |
|
OL Display |
|
√ |
√ |
|
Low Voltage Display |
<about 2.4V |
√ |
√ |
|
Backlight Time |
About 30S |
√ |
√ |
|
Automatic Shut-down |
about 15 minutes |
√ |
√ |
|
Data Retention（HOLD) |
|
√ |
√ |
|
Maximum/Minimum/Relative Value Measurement |
|
√ |
√ |
|
SEL/VFC |
|
√ |
√ |
|
1 Meter Drop |
|
√ |
√ |
|
12V Battery Test |
|
|
√ |
|
Safety Level |
|
CATII 1000V/CATIII 600V |
CATII 1000V/CATIII 600V |
Please note: Product does not include batteries.
