Product Type: Alternator |
Replaces: 1C010-64010 A7TA1677 A7TA1677 A007TA1677 |
  • Amperage: 45 |
  • Fan: Internal |
  • Grooves: 1 |

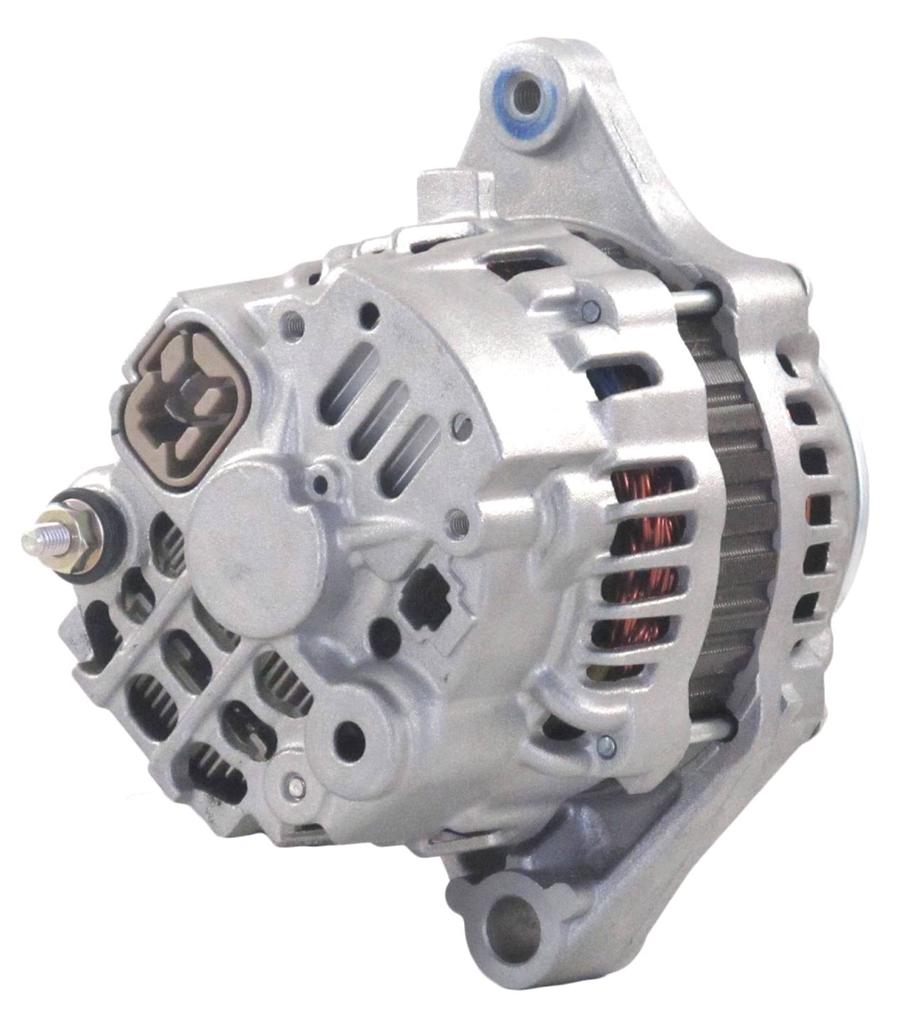

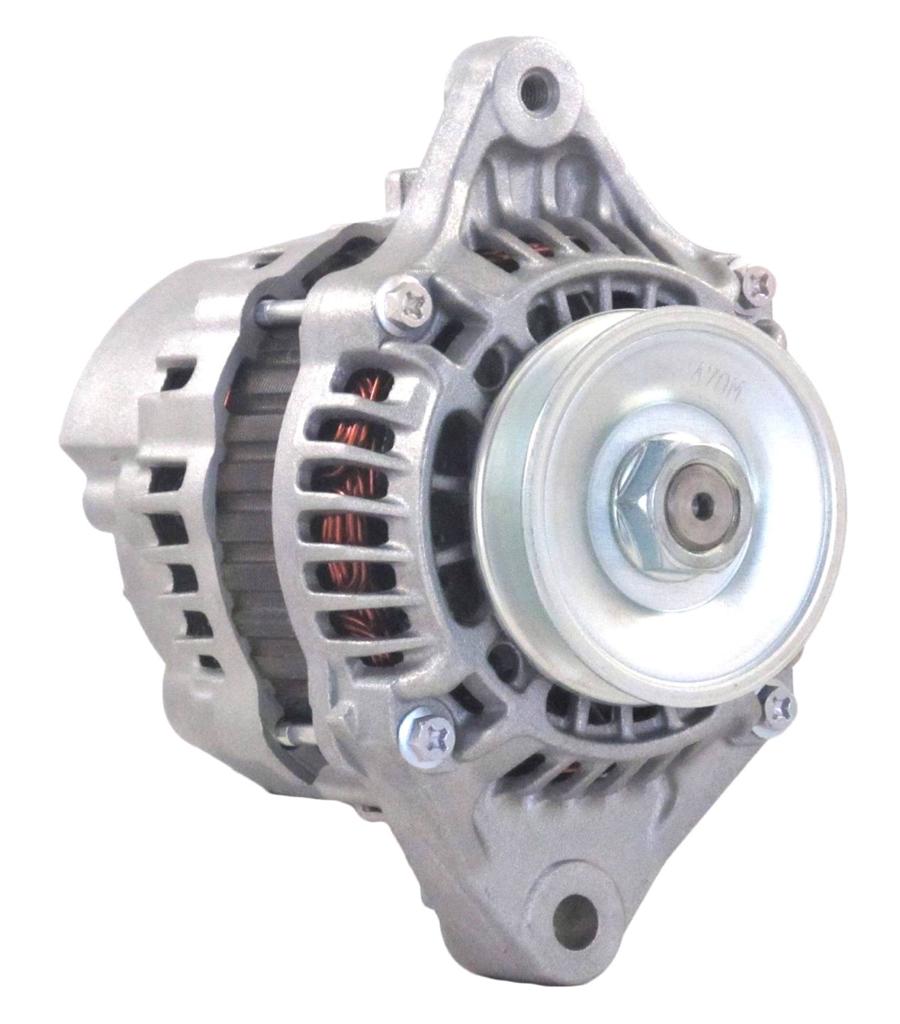

Alternator 12V 60A Kubota M8540 M9540 V3800DI Diesel Tractor 3C581-74011

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• Kubota: 1C011-64010 / 1C01164010 / 1C011-64011 / 1C01164011 / 1C011-64013 / 1C01164013
• Kubota: 3A651-74010 / 3A65174010 / 3A651-74011 / 3A65174011
• Kubota: 3C581-74011 / 3C58174011 / 3C581-74012 / 3C58174012
• Kubota: KEARA1C011
• Mitsubishi: A001TA1777 / A001TA1777ZC / A1TA1777ZC / A1TA3677 / A001TA3677 / A001TA3677B

SPECIFICATIONS:
• Product Type: Alternator
• Unit Type: Mitsubishi
• Voltage: 12V
• Amperage: 60A
• Rotation: CW
• Fan: Internal
• Regulator: Internal (IR/IF)
• Polarity: Negative
• Grooves: 1
• Regulator Clock: 11:00
• Pulley OD: 2.913 In / 74mm
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.7mm Unthreaded
• Type: Permanent Magnet
• Weight: 9.4 lbs / 4.27 kg
• Condition: New

KUBOTA / THOMAS APPLICATIONS:
• Kubota M6800 Series 68HP V3300E Diesel (1998-2005)
• Kubota M8200 Series 82HP V3300 Diesel (1998-2005)
• Kubota M9000 Series 90HP V3300 Diesel (2002-2009)
• Kubota M8540/M9540 Series V3800DI Diesel (2007-2009)
• Kubota M105 Series 105HP V3800DI Diesel (2003-2009)
• Thomas 225/245 Skid Steers V3300T Diesel

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

KUBOTA M-SERIES UTILITY TRACTORS (V3300E 68HP DIESEL 1998-2005):
• M6800 / M6800DT / M6800HD-F / M6800HDC / M6800S / M6800S-F / M6800SC / M6800SD-F / M6800SDC / M6800SDT

KUBOTA M-SERIES UTILITY TRACTORS (V3300 82HP DIESEL 1998-2005):
• M8200 / M8200C / M8200CCS / M8200DT-F / M8200DTC / M8200F / M8200HD-F / M8200HDC / M8200SDNB / M8200SDNBC / M8200SDNBF / M8200SDTNC

KUBOTA M-SERIES UTILITY TRACTORS (V3300 90HP DIESEL 2002-2009):
• M9000 / M9000C / M9000DT-F / M9000DTC / M9000DTCCS / M9000DTL / M9000DTL-F / M9000DTM / M9000DTMC / M9000DTMCW / M9000DTMW / M9000F / M9000HD-F / M9000HDC / M9000HDL

KUBOTA M-SERIES UTILITY TRACTORS (V3800DI DIESEL 2007-2009):
• M8540DTC / M8540HDC / M8540FC / M8540HDC12 / M8540HDNBC / M8540HDNBC10 / M8540DTHQ / M8540DTQ / M8540HDNBPC (85.5HP)
• M9540DTC / M9540HDC / M9540FC / M9540HDC12 / M9540HDC-LTD / M9540HDC24-1 / M9540DTHQ / M9540DTQ (95HP)
• M8560HDC / M8560HFC / M8560HDC12
• M9960HDC / M9960HFC / M9960HDC12 / M9960HDC24

KUBOTA M-SERIES UTILITY TRACTORS (V3300/V3800 DIESEL):
• M5040DTC / M5040HDC / M5040FC
• M5140DTC / M5140HDC / M5140FC
• M6040DTC / M6040HDC / M6040FC
• M6060HDC / M6060HFC
• M7040DTC / M7040HDC / M7040FC / M7040HDNBC
• M7060HDC / M7060HFC / M7060HDC12

KUBOTA M-SERIES (V3800DI 105HP DIESEL 2003-2009):
• M105SDSC / M105SDSCC / M105SHC / M105SHDC
• M95SDSC / M95SDSCS / M95XDTC / M96SDSC
• M5-091HS / M5-091HD12 / M5-091HF / M5-111HS / M5-111HD12 / M5-111HF

THOMAS EQUIPMENT SKID STEER LOADERS:
• Thomas 225 Skid Steer with Kubota V3300T Diesel
• Thomas 245 Skid Steer with Kubota V3300T Diesel
