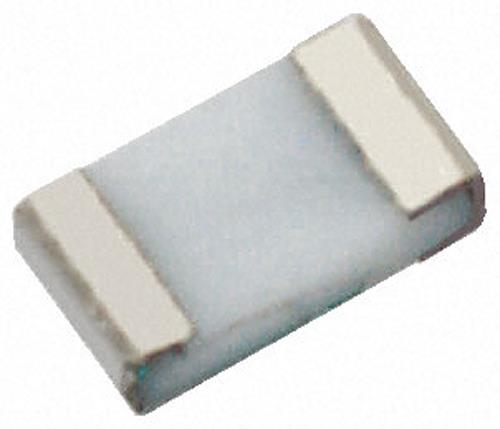

Vishay P Series Thin Film Surface Mount Resistor 0603 Case 681Ω ±0.1% 0.125W ±25ppm/°C
You will get 10 resistors part number :- P0603E6810BNTA
Product Details
Wraparound 0.1% chip resistors
Very low noise
Low temperature coefficient
High load life stability
| Technical specification | |
| Power rating at 70°C | 0.125W |
| Resistance tolerance | 0.1% |
| Temperature coefficient | ±25ppm/°C |
| Limiting element voltage | 50V |
Surface Mount - 0603 - 0.1 / 0.05%
Specifications
| Case Style | Moulded | |
| Depth | 0.85mm | |
| Dimensions | 1.52 x 0.85 x 0.5mm | |
| Height | 0.5mm | |
| Length | 1.52mm | |
| Maximum Operating Temperature | +155°C | |
| Maximum Temperature Coefficient | +25ppm/°C | |
| Minimum Operating Temperature | -55°C | |
| Minimum Temperature Coefficient | -25ppm/°C | |
| Package/Case | 0603 | |
| Power Rating | 0.125W | |
| Resistance | 681Ω | |
| Series | P | |
| Technology | Thin Film | |
| Temperature Coefficient | ±25ppm/°C | |
| Tolerance | ±0.1% |
