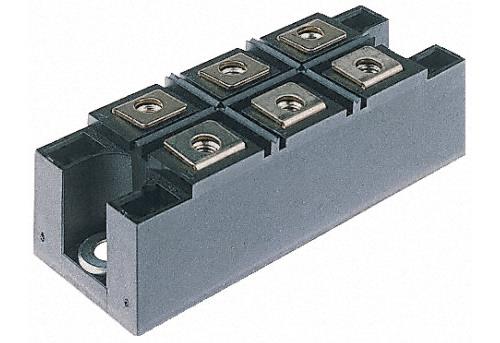

1 x Vishay, VS-91MT160KPBF, Controllable Bridge Rectifier SCR, 90A 1600V, 6-Pin


Vishay, VS-91MT160KPBF, Controllable Bridge Rectifier, SCR, 90A 1600V, 6-Pin INT-A-PAK

  • BMUK Part # :-395-4180
  • BrandVishay
  • Mfr. Part No.VS-91MT160KPBF
  •  Vishay
  •
  • You will get 1 Bridge Rectifier
Vishay, VS-91MT160KPBF, Controllable Bridge Rectifier, SCR, 90A 1600V, 6-Pin INT-A-PAK







Product Details

Three Phase Controlled Bridge Power Module VS-9.MT/VS-11.MT Series, Vishay Semiconductor

3-Phase, full-controlled bridge and half-controlled bridge
For use in general purpose and heavy duty applications
Package fully compatible with INT-A-pak power modules series
High thermal conductivity package
Many power encapsulated components
Excellent power/volume ratio
4000Vrms isolating voltage
Dimensions 94 x 35 x 30 mm

Controlled Bridge Rectifiers

Single-phase and 3-phase fully controlled bridge rectifiers with isolated base plates. Connection options include Faston (with solder tips) and screw terminal.

Specifications
Thyristor TypeSCR
Maximum Gate Trigger Voltage4V
Maximum Gate Trigger Current270mA
Maximum Holding Current200mA
Rated Average On-State Current90A
Repetitive Peak Reverse Voltage1600V
Surge Current Rating1000A
Mounting TypeScrew
Package TypeINT-A-PAK
Pin Count6
Peak On-State Voltage1.65V
Repetitive Peak Forward Blocking Voltage1600V
Repetitive Peak Off-State Current20mA
Dimensions94 x 35 x 25.5mm
Length94mm
Maximum Operating Temperature+125 °C
Width35mm
Minimum Operating Temperature-40 °C
Height25.5mm

For a Specification PDF Please CLICK HERE

Thank you for looking, if you have any questions please ask or call us.

Please see our other items for a wide range of Electronic components.












Microchip MCP7940M-I/SN Real Time Clock — Calendar, NV SRAM, 64B RAM 8-Pin SOIC

  • BMUK Part # :-761-7627
  • BrandMicrochip
  • Mfr. Part No.MCP7940M-I/SN
Microchip
Product Details

MCP7940M I²C Real-Time Clock/Calendars

The Microchip MCP7940M is Real-Time Clock Calendar (RTCC) that supports I²C communications. The MCP7940M includes a digital trimming circuit for accuracy which can compensate for crystal tolerance and temperature.

The MCP7940M features a multi-functional output that can be configured as an alarm output, to output a selectable frequency square wave or as a general purpose output.



Features

2-Wire Serial Interface, I²C™ Compatible: I²C clock rate up to 400 kHz
On-Chip Digital Trimming/Calibration: ±1 ppm resolution, ±129 ppm range
Tracks Hours, Minutes, Seconds, Day of Week, Day, Month and Year
Leap Year Compensated to 2399
12/24 Hour Modes
Oscillator for 32.768 kHz Crystals: Optimised for 6-9 pF crystals
Dual Programmable Alarms
Versatile Output Pin
Wide Operating Voltage Range: 1.8V to 5.5V
Low Typical Timekeeping Current: 1.2μA at 3.3V



Real Time Clock Peripherals - Microchip

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
FunctionsCalendar, NV SRAM
Date FormatDW:DM:M:Y
Time FormatHH:MM:SS
User RAM64B
Bus TypeSerial-I2C
Mounting TypeSurface Mount
Package TypeSOIC
Pin Count8
Dimensions4.9 x 3.9 x 1.25mm
Length4.9mm
Width3.9mm
Height1.25mm
Maximum Operating Supply Voltage5.5 V
Minimum Operating Supply Voltage1.8 V
Maximum Operating Temperature+85 °C
Minimum Operating Temperature-40 °C
