CY8C20566A-24PVXI, Capacitive Touch Screen Controller, 10 bit 5.85ksps Serial-I2C/SPI, 48-Pin QFN
- BMUK Part # :- 726-0350
- BrandCypress Semiconductor
- Mfr Part No.CY8C20566A-24PVXI

- You will get a Tube of 18 Controllers

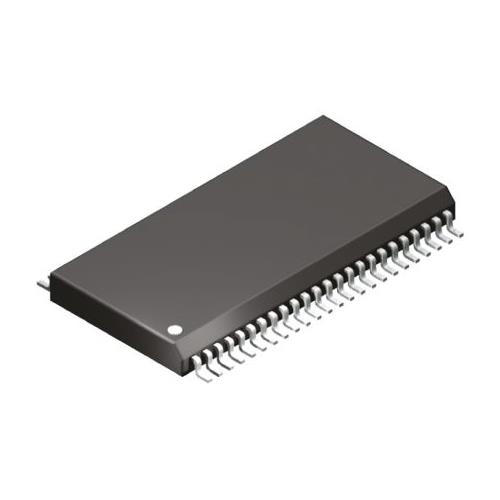

Image representative of range only
Product Details
CapSense® Touch Controllers, Cypress Semiconductor
A range of Programmable System-on-chip (PSoC®) products from Cypress Semiconductor incorporating analogue sub-systems with capacitive sensing hardware. These configurable devices include an on-board MCU and are aimed primarily at capacitive touch screen applications.
Touch Screen Controllers
Specifications
Maximum Operating Temperature
+85 °C
Length
7mm
Brand
Cypress Semiconductor
Package Type
QFN
Mounting Type
Surface Mount
Conversion Rate
5.85ksps
Sensing Technology
Capacitive
Minimum Operating Temperature
-40 °C
Sensing Wire Type
2-Wire, 3-Wire, 4-Wire
Width
7mm
Resolution
10 bit
Height
0.88mm
Pin Count
48
Dimensions
7 x 7 x 0.88mm
Interface Type
Serial-I2C, Serial-SPI
Typical Operating Supply Voltage
1.71 → 5.5 V
