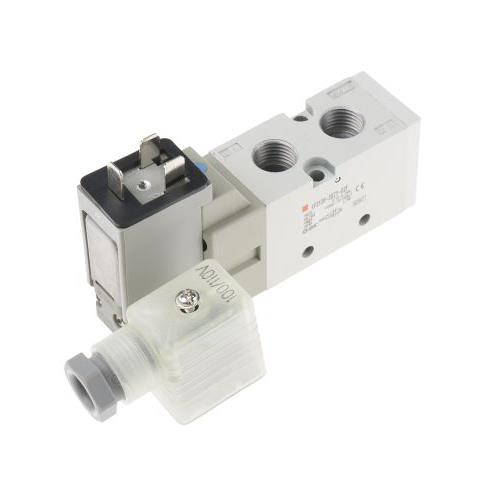

SMC VF3000 G 1/4 5/2 Solenoid/Spring Stand-Alone Pneumatic Control Valve, 981nl/min
- BMUK Part Number.723-719
- BrandSMC
- Mfr Part No.VF3130-3DZ1-02F
- You will get 1 Pneumatic Control Valve
Product Details
1/ 4 in VF Valves
The VF series are 5 port solenoid valves. The VF series of valves offers a large flow rate in a compact size. These solenoid valves offer reduced power consumption for reduced operating costs.
SMC SYJ & VF Series
Specifications
Actuation Type
Solenoid/Spring
Maximum Operating Pressure
0.9 MPa
Manufacturer Series
VF3000
Function
5/2
Body Material
Die Cast Aluminium
Thread Size
1/4in
Brand
SMC
Solenoid Fitted
Yes
Minimum Operating Pressure
0.15MPa
Solenoid Voltage
110 → 120V ac
Minimum Operating Temperature
-10°C
Maximum Operating Temperature
+50°C
Number of Ports
5/2
Mounting Style
Stand-Alone
Solenoid Power Consumption
5.6VA
Maximum Flow Rate
981NL/min
Thread Standard
G
Connection Port Thread
G 1/4
