471 x Panasonic DSC7102S0L NPN Transistor, 1A, 80V, 3-Pin MiniP3 F2 B


Panasonic DSC7102S0L NPN Transistor, 1 A, 80 V, 3-Pin MiniP3 F2 B

  • BMUK Part # : 711-5752
  • BrandPanasonic
  • Mfr. Part No.DSC7102S0L
  •  Panasonic
  •
  • You will get 471 Transistors on a Reel
Panasonic DSC7102S0L NPN Transistor, 1 A, 80 V, 3-Pin MiniP3 F2 B

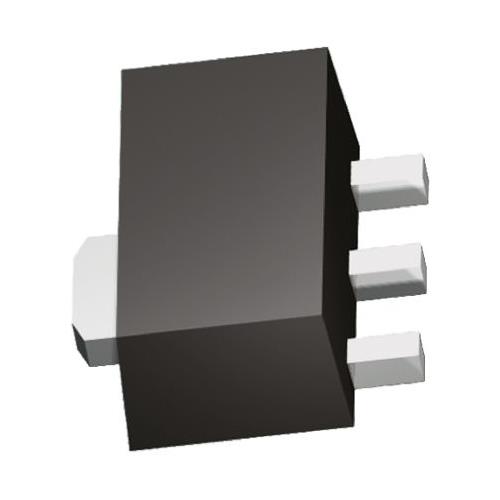

Image representative of range
Product Details

General Purpose NPN Transistors, Panasonic

Bipolar Transistors, Panasonic

Specifications

Transistor TypeNPN
Maximum DC Collector Current1 A
Maximum Collector Emitter Voltage80 V
Package TypeMiniP3 F2 B
Mounting TypeSurface Mount
Maximum Power Dissipation1 W
Minimum DC Current Gain170
Transistor ConfigurationSingle
Maximum Collector Base Voltage80 V
Maximum Emitter Base Voltage5 V
Maximum Operating Frequency180 MHz
Pin Count3
Number of Elements per Chip1
Maximum Collector Emitter Saturation Voltage0.3 V
Maximum Operating Temperature+150 °C
Height1.5mm
Maximum Base Emitter Saturation Voltage1.2 V
Dimensions4.5 x 2.5 x 1.5mm
Width2.5mm
Length4.5mm




Thank you for looking, if you have any questions please ask or call us.






TE Connectivity Black Heat Shrink Tubing, 9.5mm, 2:1, 10m Length

TE Connectivity
Product Details

DR-25 Heat shrink Tubing (Shrink Ratio 2:1)

Robust and flexible heat shrink tubing. It protects wires and cables against damage from chemicals, abrasion, and fluids. The tubing is ideal for use in high temperature environments as it has been specially designed for long term heat resistance and is flame retardant.


Features and Benefits
• Offers excellent protection and insulation
• Provides strain relief
• Performs well under long-term heat exposure
• The tubing is printed with the product description and size
• Shrink ratio of 2:1
• Use with System 25 range products for a complete cable harness system

Standards

VG95343 Part 5 Type D, VDE 0341/Pt 9005, AMS-DTL-23053/16, BS36-198 Part 3 10A.



https://uk.rs-online.com/largeimages/L244079-01.gif
https://uk.rs-online.com/largeimages/LD219648-01.gif
https://uk.rs-online.com/largeimages/LF219648-10.gif
https://uk.rs-online.com/largeimages/LI219648-10.gif



High Temperature

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Sleeve Diameter9.5mm
Shrunk Diameter4.8mm
ColourBlack
Sleeve TypeHeat Shrink
Shrink Ratio2:1
Sleeve Length10m
MaterialElastomer
Minimum Operating Temperature-75°C
Maximum Operating Temperature+150°C
Dielectric Strength8kV/mm

Microchip MCP7940M-I/SN Real Time Clock — Calendar, NV SRAM, 64B RAM 8-Pin SOIC

  • BMUK Part # :-761-7627
  • BrandMicrochip
  • Mfr. Part No.MCP7940M-I/SN
Microchip
Product Details

MCP7940M I²C Real-Time Clock/Calendars

The Microchip MCP7940M is Real-Time Clock Calendar (RTCC) that supports I²C communications. The MCP7940M includes a digital trimming circuit for accuracy which can compensate for crystal tolerance and temperature.

The MCP7940M features a multi-functional output that can be configured as an alarm output, to output a selectable frequency square wave or as a general purpose output.



Features

2-Wire Serial Interface, I²C™ Compatible: I²C clock rate up to 400 kHz
On-Chip Digital Trimming/Calibration: ±1 ppm resolution, ±129 ppm range
Tracks Hours, Minutes, Seconds, Day of Week, Day, Month and Year
Leap Year Compensated to 2399
12/24 Hour Modes
Oscillator for 32.768 kHz Crystals: Optimised for 6-9 pF crystals
Dual Programmable Alarms
Versatile Output Pin
Wide Operating Voltage Range: 1.8V to 5.5V
Low Typical Timekeeping Current: 1.2μA at 3.3V



Real Time Clock Peripherals - Microchip

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
FunctionsCalendar, NV SRAM
Date FormatDW:DM:M:Y
Time FormatHH:MM:SS
User RAM64B
Bus TypeSerial-I2C
Mounting TypeSurface Mount
Package TypeSOIC
Pin Count8
Dimensions4.9 x 3.9 x 1.25mm
Length4.9mm
Width3.9mm
Height1.25mm
Maximum Operating Supply Voltage5.5 V
Minimum Operating Supply Voltage1.8 V
Maximum Operating Temperature+85 °C
Minimum Operating Temperature-40 °C

MCP40D18T-502E/LT, Digital Potentiometer 5kΩ 128-Position Serial-2 Wire, Serial-I2C 6-Pin SC-70

  • BMUK Part # :-687-8739
  • BrandMicrochip
  • Mfr. Part No.MCP40D18T-502E/LT
Microchip
Product Details

MCP40D17/18/19 Digital Potentiometers

Digital Potentiometer - Microchip

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Control InterfaceSerial-2 Wire, Serial-I2C
Resistance Value5kΩ
Number of Positions128
Memory TypeVolatile
Number of Pots per Package1
Mounting TypeSurface Mount
Package TypeSC-70
Pin Count6
Power Supply TypeSingle
Typical Single Supply Voltage2.5 V, 3.3 V, 5 V
Dimensions2 x 1.25 x 0.9mm
Height0.9mm
Width1.25mm
Maximum Operating Temperature+125 °C
Length2mm
Minimum Operating Temperature-40 °C
