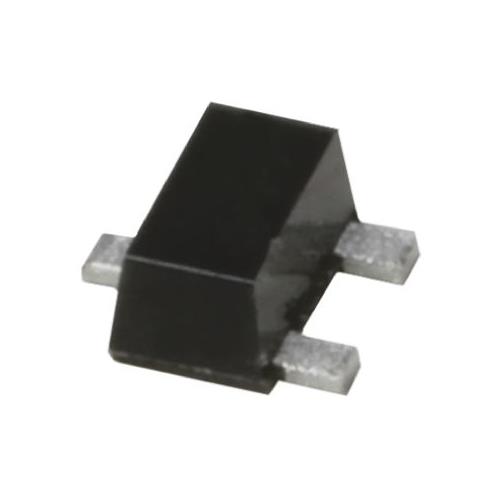

Panasonic DSC3G0300L NPN Transistor, 50 mA, 20 V, 3-Pin SSSMini3 F2 B
- BrandPanasonic
- Mfr. Part No.DSC3G0300L
- You will get 3940 Transistors on 1 Reel
Product Details
Small Signal NPN Transistors, Panasonic
Bipolar Transistors, Panasonic
Specifications
| Transistor Type | NPN | |
| Maximum DC Collector Current | 50 mA | |
| Maximum Collector Emitter Voltage | 20 V | |
| Package Type | SSSMini3 F2 B | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 100 mW | |
| Minimum DC Current Gain | 25 | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage | 30 V | |
| Maximum Emitter Base Voltage | 3 V | |
| Maximum Operating Frequency | 1600 MHz | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | +150 °C | |
| Length | 1.2mm | |
| Dimensions | 1.2 x 0.8 x 0.47mm | |
| Minimum Operating Temperature | -55 °C | |
| Height | 0.47mm | |
| Width | 0.8mm | |
