BVM Mini-ITX Intel Core i7 860 Q57 4GB DDR3
- BMUK Part # :-726-9672
- BrandBVM
- Mfr. Part No.LV-67C-860-4GB-L
-
- You will get 1 Board
Product Details

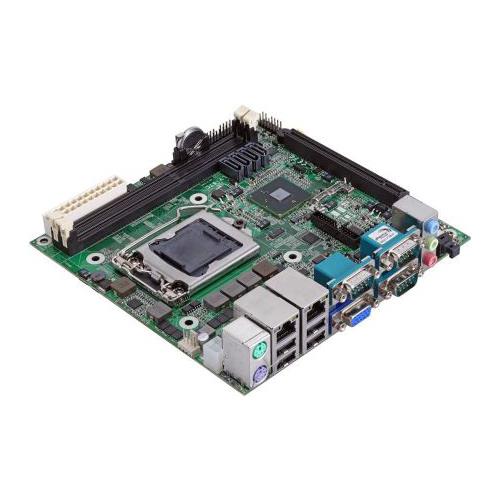

Intel® Core™ Desktop Mini-ITX Single-Board Computers
Industrial-quality single-board computers fully populated with Intel Core™ processor, heatsink, fan and 4GB memory. These products may be purchased with either a full licence copy of Microsoft Windows Embedded Standard (-L manu part no) or a 120-day Evaluation Kit.
Intel® Core™ ix Pentium® Desktop processor
Chipset Intel® BD82Q57 PCH (Platform Controller Hub)
2xDDR3 1066/1333MHz MT/s DIMM with 4GB memory
HD audio, 2xGigabit LAN, GPIO, x16 PCIe, Mini-PCIe, Mini-PCI
i3/i5 support VGA, DVI graphics
i7 version requires a separate (not supplied) graphics card
4xSATA 2 (RAID 0, 1, 5, 10), RS-232/422/485, 3xRS-232
CDIN, IrDA, SMBus, 8xUSB 2.0, S/PDIF
Power Supply: 24-pin ATX
Note
i7 version requires a separate (not supplied) graphics card.
BVM/Commell
Specifications
| Core Processor | Intel Core i7-860 | |
| Processor Clock Speed | 2.8GHz | |
| Supported Memory | 2x DIMM DDR3 | |
| Installed Memory | 4 GB | |
| Supported I/O Interfaces | D-sub, 15 Pin (VGA) | |
| Supported Network Interfaces | Gigabit Ethernet | |
| Supported Video Ports | DVI, VGA | |
| Expansion Slots | Mini PCI, Mini PCI Express, PCI Express x16 | |
| Supported Hard Drive Interface | SATA | |
| Memory Socket Type | DIMM | |
| Number of Memory Sockets | 2x | |
| Supported Memory Technology | DDR3 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +60°C | |
| Width | 170mm | |
| Length | 170mm |
To view the datasheet please Click Here
