19 x Texas Instruments TPS54810PWP Switching Regulator 8A, 0.9-3.3V 28-Pin

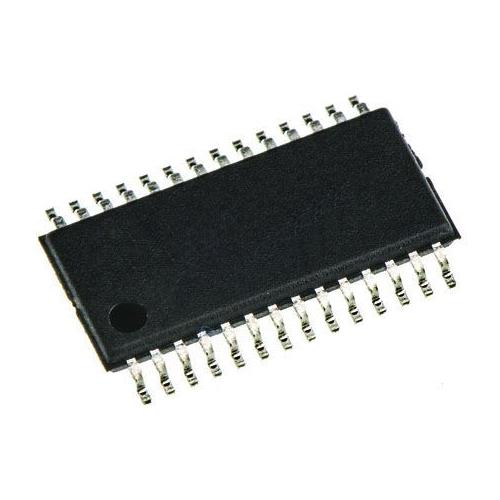

Texas Instruments, TPS54810PWP Step-Down Switching Regulator 8A Adjustable, 0.9 → 3.3 V 28-Pin, HTSSOP

  • BMUK Part # :- 451-4058
  •  BrandTexas Instruments
  • Mfr. Part No.TPS54810PWP
  •
  •
  • You will get a Tube of 19 ICs
Texas Instruments
Texas Instruments, TPS54810PWP Step-Down Switching Regulator 8A Adjustable, 0.9 → 3.3 V 28-Pin, HTSSOP







Product Details

Step-Down SWIFT™ DC/DC Converters (Integrated Switch), Texas Instruments

DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments

The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.

Specifications

Maximum Output Current8A
Maximum Output Voltage3.3 V
Regulator FunctionBuck Controller
Minimum Output Voltage0.9 V
Minimum Input Voltage4 V
Maximum Input Voltage6 V
Output TypeAdjustable
Mounting TypeSurface Mount
Number of Outputs1
Pin Count28
Package TypeHTSSOP
Switching RegulatorYes
Line Regulation0.04 %/V
Load Regulation0.03 %/A
Height1.15mm
Maximum Switching Frequency700 kHz
Dimensions9.7 x 4.4 x 1.15mm
Minimum Operating Temperature-40 °C
Maximum Operating Temperature+85 °C
Length9.7mm
Width4.4mm





TE Connectivity Black Heat Shrink Tubing, 9.5mm, 2:1, 10m Length

TE Connectivity
Product Details

DR-25 Heat shrink Tubing (Shrink Ratio 2:1)

Robust and flexible heat shrink tubing. It protects wires and cables against damage from chemicals, abrasion, and fluids. The tubing is ideal for use in high temperature environments as it has been specially designed for long term heat resistance and is flame retardant.


Features and Benefits
• Offers excellent protection and insulation
• Provides strain relief
• Performs well under long-term heat exposure
• The tubing is printed with the product description and size
• Shrink ratio of 2:1
• Use with System 25 range products for a complete cable harness system

Standards

VG95343 Part 5 Type D, VDE 0341/Pt 9005, AMS-DTL-23053/16, BS36-198 Part 3 10A.



https://uk.rs-online.com/largeimages/L244079-01.gif
https://uk.rs-online.com/largeimages/LD219648-01.gif
https://uk.rs-online.com/largeimages/LF219648-10.gif
https://uk.rs-online.com/largeimages/LI219648-10.gif



High Temperature

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Sleeve Diameter9.5mm
Shrunk Diameter4.8mm
ColourBlack
Sleeve TypeHeat Shrink
Shrink Ratio2:1
Sleeve Length10m
MaterialElastomer
Minimum Operating Temperature-75°C
Maximum Operating Temperature+150°C
Dielectric Strength8kV/mm

Microchip MCP7940M-I/SN Real Time Clock — Calendar, NV SRAM, 64B RAM 8-Pin SOIC

  • BMUK Part # :-761-7627
  • BrandMicrochip
  • Mfr. Part No.MCP7940M-I/SN
Microchip
Product Details

MCP7940M I²C Real-Time Clock/Calendars

The Microchip MCP7940M is Real-Time Clock Calendar (RTCC) that supports I²C communications. The MCP7940M includes a digital trimming circuit for accuracy which can compensate for crystal tolerance and temperature.

The MCP7940M features a multi-functional output that can be configured as an alarm output, to output a selectable frequency square wave or as a general purpose output.



Features

2-Wire Serial Interface, I²C™ Compatible: I²C clock rate up to 400 kHz
On-Chip Digital Trimming/Calibration: ±1 ppm resolution, ±129 ppm range
Tracks Hours, Minutes, Seconds, Day of Week, Day, Month and Year
Leap Year Compensated to 2399
12/24 Hour Modes
Oscillator for 32.768 kHz Crystals: Optimised for 6-9 pF crystals
Dual Programmable Alarms
Versatile Output Pin
Wide Operating Voltage Range: 1.8V to 5.5V
Low Typical Timekeeping Current: 1.2μA at 3.3V



Real Time Clock Peripherals - Microchip

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
FunctionsCalendar, NV SRAM
Date FormatDW:DM:M:Y
Time FormatHH:MM:SS
User RAM64B
Bus TypeSerial-I2C
Mounting TypeSurface Mount
Package TypeSOIC
Pin Count8
Dimensions4.9 x 3.9 x 1.25mm
Length4.9mm
Width3.9mm
Height1.25mm
Maximum Operating Supply Voltage5.5 V
Minimum Operating Supply Voltage1.8 V
Maximum Operating Temperature+85 °C
Minimum Operating Temperature-40 °C

Microchip BLDC Motor for MCP8024 Demonstration Board

  • BMUK Part # :-893-8149
  • BrandMicrochip
  • Mfr. Part No.ADM00557
Microchip
Product Details

MCP8024 BLDC Motor Driver Evaluation Board

The MCP8024 Evaluation Board is a platform which demonstrates Microchip’s MCP8024 3-Phase Brushless DC (BLDC) Gate Driver in a BLDC motor drive application. The featured device integrates three Half-Bridge Drivers to drive external NMOS/NMOS transistor pairs, a comparator, a voltage regulator, power monitoring comparators, an over-temperature sensor, two level translators and three operational amplifiers into one IC.

The evaluation board allows designers to quickly and easily start assessing the device and includes a start-stop pushbutton and motor speed controlling potentiometer on board. To implement the demonstrated trapezoidal BLDC Motor Controller solution the MCP8024 is used in combination with a companion Digital Signal Controller, Microchip’s dsPIC33FJ32MC204, which is present in Plug-In Module form.



Features

Input Operating Voltage Range: +7.0V to +28V
Maximum of 500 mA of gate drive current for external N-Channel MOSFETs
Drives a BLDC motor with a supply of up to 28V and 15A
750 mW Buck Regulator with resistor programmable output voltage
RESET momentary contact switch
Two Spare user programmable momentary contact switches
PWM signal LED indicators
100 pin dsPIC PIM header for use with MA330017 compatible PIMs
PICkit 3, Real Ice and ICD3 debugger interfaces
Speed control potentiometer
Terminal block for 5V or 12V Hall effect sensors
SPI and I2C headers for user communications use
Programmable external MOSFET overcurrent protection
Programmable PWM dead-time protection
Programmable PWM blanking time for current switching spikes
On-board 5V and 12V LDO regulators

Kit Contents

1 x MCP8024 TQFP BLDC Motor Driver Evaluation Board
1 x dsPIC33FJ32MC204 Plug-In-Module (MA330017)



Note

BLDC motor is not included

Motor Controllers & Drivers, Microchip

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Power Management FunctionBLDC Motor
Kit ClassificationDemonstration Board
Featured DeviceMCP8024

Microchip BLDC Motor for MCP8024 Demonstration Board

  • BMUK Part # :-893-8149
  • BrandMicrochip
  • Mfr. Part No.ADM00557
Microchip
Product Details

MCP8024 BLDC Motor Driver Evaluation Board

The MCP8024 Evaluation Board is a platform which demonstrates Microchip’s MCP8024 3-Phase Brushless DC (BLDC) Gate Driver in a BLDC motor drive application. The featured device integrates three Half-Bridge Drivers to drive external NMOS/NMOS transistor pairs, a comparator, a voltage regulator, power monitoring comparators, an over-temperature sensor, two level translators and three operational amplifiers into one IC.

The evaluation board allows designers to quickly and easily start assessing the device and includes a start-stop pushbutton and motor speed controlling potentiometer on board. To implement the demonstrated trapezoidal BLDC Motor Controller solution the MCP8024 is used in combination with a companion Digital Signal Controller, Microchip’s dsPIC33FJ32MC204, which is present in Plug-In Module form.



Features

Input Operating Voltage Range: +7.0V to +28V
Maximum of 500 mA of gate drive current for external N-Channel MOSFETs
Drives a BLDC motor with a supply of up to 28V and 15A
750 mW Buck Regulator with resistor programmable output voltage
RESET momentary contact switch
Two Spare user programmable momentary contact switches
PWM signal LED indicators
100 pin dsPIC PIM header for use with MA330017 compatible PIMs
PICkit 3, Real Ice and ICD3 debugger interfaces
Speed control potentiometer
Terminal block for 5V or 12V Hall effect sensors
SPI and I2C headers for user communications use
Programmable external MOSFET overcurrent protection
Programmable PWM dead-time protection
Programmable PWM blanking time for current switching spikes
On-board 5V and 12V LDO regulators

Kit Contents

1 x MCP8024 TQFP BLDC Motor Driver Evaluation Board
1 x dsPIC33FJ32MC204 Plug-In-Module (MA330017)



Note

BLDC motor is not included

Motor Controllers & Drivers, Microchip

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Power Management FunctionBLDC Motor
Kit ClassificationDemonstration Board
Featured DeviceMCP8024

Microchip BLDC Motor for MCP8024 Demonstration Board

  • BMUK Part # :-893-8149
  • BrandMicrochip
  • Mfr. Part No.ADM00557
Microchip
Product Details

MCP8024 BLDC Motor Driver Evaluation Board

The MCP8024 Evaluation Board is a platform which demonstrates Microchip’s MCP8024 3-Phase Brushless DC (BLDC) Gate Driver in a BLDC motor drive application. The featured device integrates three Half-Bridge Drivers to drive external NMOS/NMOS transistor pairs, a comparator, a voltage regulator, power monitoring comparators, an over-temperature sensor, two level translators and three operational amplifiers into one IC.

The evaluation board allows designers to quickly and easily start assessing the device and includes a start-stop pushbutton and motor speed controlling potentiometer on board. To implement the demonstrated trapezoidal BLDC Motor Controller solution the MCP8024 is used in combination with a companion Digital Signal Controller, Microchip’s dsPIC33FJ32MC204, which is present in Plug-In Module form.



Features

Input Operating Voltage Range: +7.0V to +28V
Maximum of 500 mA of gate drive current for external N-Channel MOSFETs
Drives a BLDC motor with a supply of up to 28V and 15A
750 mW Buck Regulator with resistor programmable output voltage
RESET momentary contact switch
Two Spare user programmable momentary contact switches
PWM signal LED indicators
100 pin dsPIC PIM header for use with MA330017 compatible PIMs
PICkit 3, Real Ice and ICD3 debugger interfaces
Speed control potentiometer
Terminal block for 5V or 12V Hall effect sensors
SPI and I2C headers for user communications use
Programmable external MOSFET overcurrent protection
Programmable PWM dead-time protection
Programmable PWM blanking time for current switching spikes
On-board 5V and 12V LDO regulators

Kit Contents

1 x MCP8024 TQFP BLDC Motor Driver Evaluation Board
1 x dsPIC33FJ32MC204 Plug-In-Module (MA330017)



Note

BLDC motor is not included

Motor Controllers & Drivers, Microchip

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Power Management FunctionBLDC Motor
Kit ClassificationDemonstration Board
Featured DeviceMCP8024
