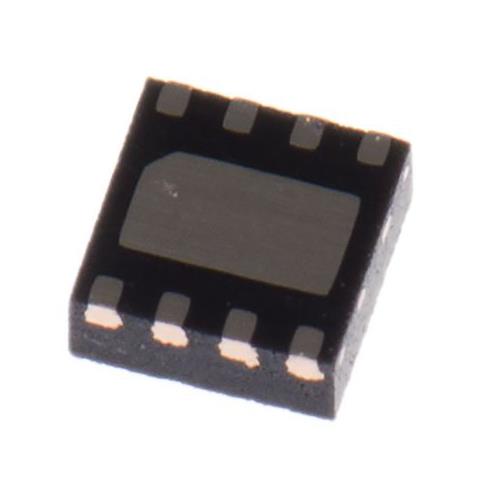

Texas Instruments CSD16323Q3 N-channel MOSFET, 60 A, 25 V NexFET, 8-Pin SON
- BMUK Part No.827-4707
- BrandTexas Instruments
- Mfr Part No.CSD16323Q3
- You will get a pack of 10 Transistors
Product Details
N-Channel NexFET™ Power MOSFET, Texas Instruments
MOSFET Transistors, Texas Instruments
Specifications
Maximum Operating Temperature
+150 °C
Number of Elements per Chip
1
Length
3.4mm
Transistor Configuration
Single
Typical Turn-On Delay Time
5.3 ns
Brand
Texas Instruments
Typical Turn-Off Delay Time
13 ns
Maximum Continuous Drain Current
60 A
Package Type
SON
Maximum Power Dissipation
3 W
Series
NexFET
Mounting Type
Surface Mount
Minimum Operating Temperature
-55 °C
Width
3.4mm
Maximum Gate Threshold Voltage
1.4V
Height
1.1mm
Minimum Gate Threshold Voltage
0.9V
Maximum Drain Source Resistance
7.2 mΩ
Maximum Drain Source Voltage
25 V
Pin Count
8
Dimensions
3.4 x 3.4 x 1.1mm
Category
Power MOSFET
Typical Gate Charge @ Vgs
6.2 nC @ 4.5 V
Transistor Material
Si
Channel Mode
Enhancement
Typical Input Capacitance @ Vds
1020 pF @ 12.5 V
Channel Type
N
Maximum Gate Source Voltage
-8 V, +10 V
