SMC Double Action Pneumatic Roundline Cylinder, CDG5BA50TFSV-300
- BMUK Part No.742-6636
- BrandSMC
- Mfr Part No.CDG5BA50TFSV-300

- You will get 1 Cylinder

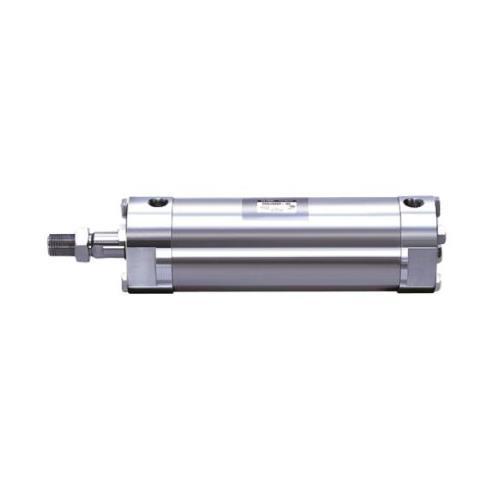

Image representative of range only
Product Details
CG5-S Stainless Steel Cylinders
SMC CG5-S Series Cylinders
Specifications
Length
467mm
Weight
1.8kg
Maximum Operating Pressure
1 MPa
Rods
Single
Manufacturer Series
CG5-S
Stroke
300mm
Brand
SMC
Bore
50mm
Dimensions
55 (Dia.) x 467mm
Port Connection
G 1/4
Minimum Operating Temperature
-10°C
Maximum Operating Temperature
+70°C
Action
Double
Diameter
55mm
Cushioning Type
Rubber Bumper
Absolute Maximum Pressure
1.5MPa
