5x Texas Instruments SN74HCT04D, Hex Inverter, 4.5-5.5V, 14-Pin SOIC
Texas Instruments SN74HCT04D, Hex Inverter, 4.5 → 5.5 V, 14-Pin SOIC - BMUK Part # :-528-432 - BrandTexas Instruments - Mfr. Part No.SN74HCT04D - - - You will get 5 ICs Product Details 74HCT Family Inverters Buffers, Texas Instruments Texas Instruments range of Inverters and Buffers from the 74HCT Family of CMOS Logic ICs. Inputs of the 74HCT family are 74LSTTL compatible, and the products use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits. High-Speed CMOS LogicOperating Voltage 4.5 to 5.5 VCompatibility: Input TTL, Output CMOS 74HCT Family Specifications Logic Function Inverter Number of Elements per Chip 6 Schmitt Trigger ...

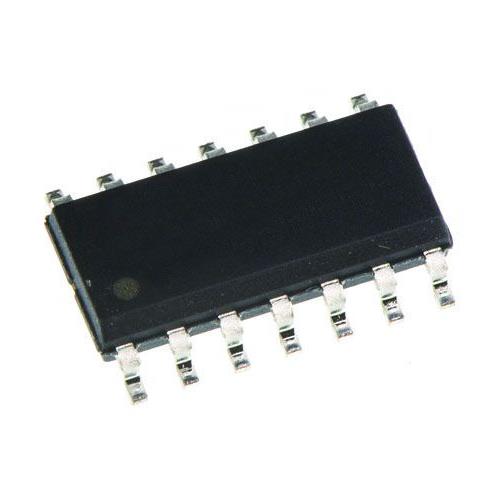

Texas Instruments SN74HCT04D, Hex Inverter, 4.5 → 5.5 V, 14-Pin SOIC

  • BMUK Part # :-528-432
  • BrandTexas Instruments
  • Mfr. Part No.SN74HCT04D
  •
  •
  • You will get 5 ICs
Texas Instruments
Texas Instruments SN74HCT04D, Hex Inverter, 4.5 → 5.5 V, 14-Pin SOIC
Product Details

74HCT Family Inverters & Buffers, Texas Instruments

Texas Instruments range of Inverters and Buffers from the 74HCT Family of CMOS Logic ICs. Inputs of the 74HCT family are 74LSTTL compatible, and the products use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS

74HCT Family

Specifications

Logic FunctionInverter
Number of Elements per Chip6
Schmitt Trigger InputNo
Maximum Propagation Delay Time @ Maximum CL18 ns @ 5.5 V, 20 ns @ 4.5 V
Maximum High Level Output Current-4mA
Maximum Low Level Output Current4mA
Mounting TypeSurface Mount
Package TypeSOIC
Pin Count14
Logic FamilyHCT
Dimensions8.65 x 3.91 x 1.58mm
Height1.58mm
Maximum Operating Temperature+85 °C
Length8.65mm
Maximum Operating Supply Voltage5.5 V
Width3.91mm
Minimum Operating Supply Voltage4.5 V
Propagation Delay Test Condition50pF
Minimum Operating Temperature-40 °C




To view the datasheet please Click Here

Please visit our shop to see all our other items we have in stock,

Many thanks!

TE Connectivity Black Heat Shrink Tubing, 9.5mm, 2:1, 10m Length

TE Connectivity
Product Details

DR-25 Heat shrink Tubing (Shrink Ratio 2:1)

Robust and flexible heat shrink tubing. It protects wires and cables against damage from chemicals, abrasion, and fluids. The tubing is ideal for use in high temperature environments as it has been specially designed for long term heat resistance and is flame retardant.


Features and Benefits
• Offers excellent protection and insulation
• Provides strain relief
• Performs well under long-term heat exposure
• The tubing is printed with the product description and size
• Shrink ratio of 2:1
• Use with System 25 range products for a complete cable harness system

Standards

VG95343 Part 5 Type D, VDE 0341/Pt 9005, AMS-DTL-23053/16, BS36-198 Part 3 10A.



https://uk.rs-online.com/largeimages/L244079-01.gif
https://uk.rs-online.com/largeimages/LD219648-01.gif
https://uk.rs-online.com/largeimages/LF219648-10.gif
https://uk.rs-online.com/largeimages/LI219648-10.gif



High Temperature

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Sleeve Diameter9.5mm
Shrunk Diameter4.8mm
ColourBlack
Sleeve TypeHeat Shrink
Shrink Ratio2:1
Sleeve Length10m
MaterialElastomer
Minimum Operating Temperature-75°C
Maximum Operating Temperature+150°C
Dielectric Strength8kV/mm

Microchip MCP7940M-I/SN Real Time Clock — Calendar, NV SRAM, 64B RAM 8-Pin SOIC

  • BMUK Part # :-761-7627
  • BrandMicrochip
  • Mfr. Part No.MCP7940M-I/SN
Microchip
Product Details

MCP7940M I²C Real-Time Clock/Calendars

The Microchip MCP7940M is Real-Time Clock Calendar (RTCC) that supports I²C communications. The MCP7940M includes a digital trimming circuit for accuracy which can compensate for crystal tolerance and temperature.

The MCP7940M features a multi-functional output that can be configured as an alarm output, to output a selectable frequency square wave or as a general purpose output.



Features

2-Wire Serial Interface, I²C™ Compatible: I²C clock rate up to 400 kHz
On-Chip Digital Trimming/Calibration: ±1 ppm resolution, ±129 ppm range
Tracks Hours, Minutes, Seconds, Day of Week, Day, Month and Year
Leap Year Compensated to 2399
12/24 Hour Modes
Oscillator for 32.768 kHz Crystals: Optimised for 6-9 pF crystals
Dual Programmable Alarms
Versatile Output Pin
Wide Operating Voltage Range: 1.8V to 5.5V
Low Typical Timekeeping Current: 1.2μA at 3.3V



Real Time Clock Peripherals - Microchip

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
FunctionsCalendar, NV SRAM
Date FormatDW:DM:M:Y
Time FormatHH:MM:SS
User RAM64B
Bus TypeSerial-I2C
Mounting TypeSurface Mount
Package TypeSOIC
Pin Count8
Dimensions4.9 x 3.9 x 1.25mm
Length4.9mm
Width3.9mm
Height1.25mm
Maximum Operating Supply Voltage5.5 V
Minimum Operating Supply Voltage1.8 V
Maximum Operating Temperature+85 °C
Minimum Operating Temperature-40 °C
