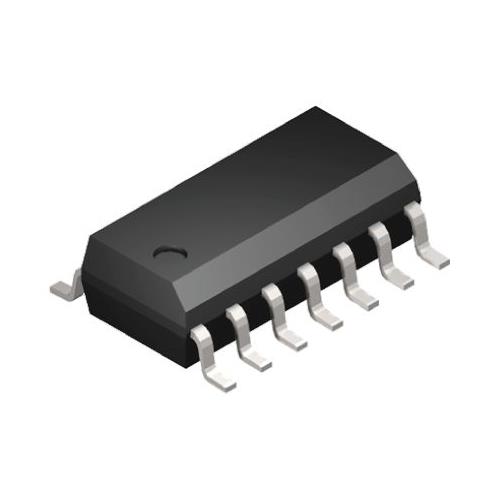

Linear Technology LT1353CS#PBF, Current Feedback, Op Amp, 1.6MHz, 14-Pin SOIC
- BMUK Part # :-761-8217
- BrandLinear Technology
- Mfr Part No.LT1353CS#PBF
-
- You will get 1 Op Amp
Product Details
Current Feedback Op Amps, Linear Technology
A range of Current Feedback operational amplifiers from Linear Technology. The current feedback topology employed in these op amps enables better high frequency performance than can be obtained from the more common voltage feedback architecture making these devices ideal for high speed video applications. Typical applications for these high speed op amps include video and RGB amplifiers,
ADSL and cable drivers, test equipment amplifiers and high speed buffers.
Operational Amplifiers, Linear Technology
Specifications
Maximum Operating Temperature
+85 °C
Number of Channels per Chip
4
Length
8.74mm
Typical Slew Rate
50V/µs
Typical Voltage Gain
86 dB
Brand
Linear Technology
Power Supply Type
Dual
Package Type
SOIC
Mounting Type
Surface Mount
Minimum Operating Temperature
-40 °C
Width
3.988mm
Typical Input Voltage Noise Density
14nV/√Hz
Height
1.498mm
Pin Count
14
Dimensions
8.738 x 3.988 x 1.498mm
Typical Gain Bandwidth Product
1.6MHz
Typical Dual Supply Voltage
±15 V, ±2.5 V, ±5 V
Amplifier Type
Current Feedback
