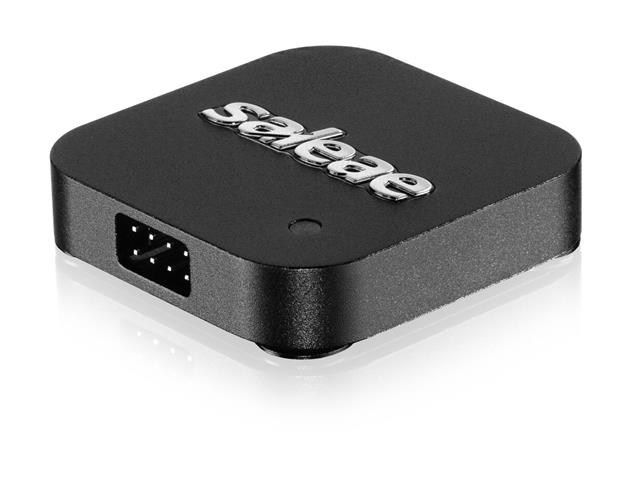

Saleae Logic 4 RED USB Logic Analyzer Oscilloscope 4x Digital Input 1x Analog Input





The Saleae Logic 4 USB Logic Analyzer is a 4 channel logic analyzer with one input dual purposed as a single channel analog data recorder. The device connects to a PC over USB and uses the Saleae Logic Software to record and view digital and analog signals. A logic analyzer is a debugging tool used to record and view digital signals. It operates by sampling a digital input connected to a device under test (DUT) at a high sample rate. These samples are recorded to a sample buffer, and at the end of the capture, the buffer is displayed in the software for review. Logic analyzers are great for debugging embedded applications. In the most common case, a developer working on firmware for a microcontroller will write code to communicate with another component, possibly using protocols like serial, I2C, or SPI. To verify the functionality or to diagnose errors in the firmware, a logic analyzer is connected to the digital IO used for communication and records the activity during testing. The recording is then shown on the display so the user can view the actual behavior of the firmware, and compare that with the expected behavior to narrow down and identity the source of the issue – or verify that the operation is correct.

Included Components:

• Saleae Logic 4 USB Logic Analyser in RED

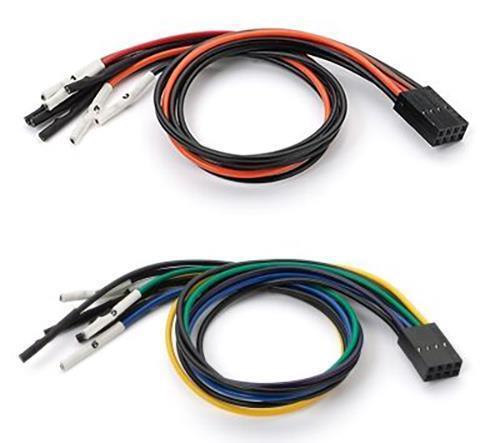

• 4 Channel Wire Harness
• 8 Micro-Gripper Hooks

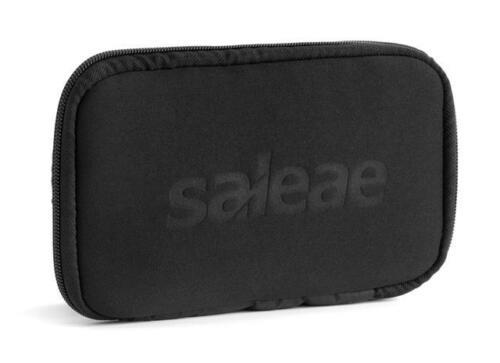

• Saleae Carry Case
• USB 2.0 Cable
• Getting Started Guide
