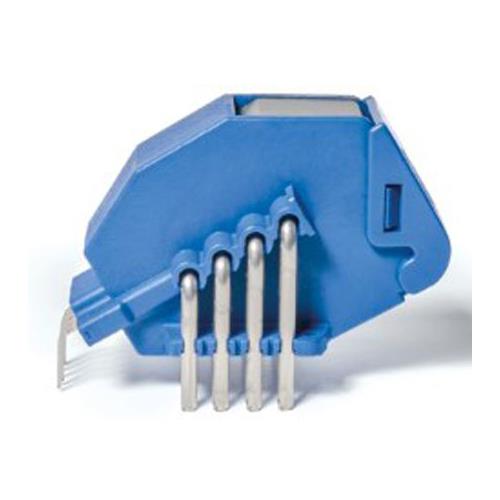

Honeywell Split Core Current Sensor, 17 mA, ±600A output current
- BMUK Part # :-766-0132
- BrandHoneywell
- Mfr. Part No.CSCA0200A000B15B01
-
- You will get 1 Current Sensor
Product Details
Open Loop Current Sensors
The CSCA-A series of open loop current sensors from Honeywell are suitable for applications such as variable speed drives, over current protection, UPS and telecommunication power supplies, current feedback control systems and robotics.The CSCA-A series of open loop current sensors are based on the hall effect principles, a hall effect device produces an output voltage linearly related to the amplitude and phase of a magnetic field applied to it. The hall effect output is directly proportional to the amplitude and phase of the primary current.
Measures ac, dc and impulse currents
Low power consumption
Compact size
High level of electrical isolation between primary and secondary circuits
Operating temperature -10 → +80 °C
Honeywell Current Transducers
Specifications
| Input Current Range | 17 mA | |
| Output Current Range | ±600A | |
| Supply Voltage | ±15 V dc | |
| Transformer Type | Split Core | |
| Sensor Type | Hall Effect | |
| Mounting Type | Flange Mount | |
| Frequency Bandwidth | DC to 50 kHz | |
| Accuracy | ±2 % | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +80°C | |
| Overall Height | 29mm | |
| Overall Width | 40mm | |
| Overall Depth | 35mm | |
| Thermal Drift | ±1.5mV |
To view the datasheet please Click Here
