1x NXP P80C31SBPN,112, 8bit 80C51 Microcontroller, 16MHz ROMLess, 40-Pin

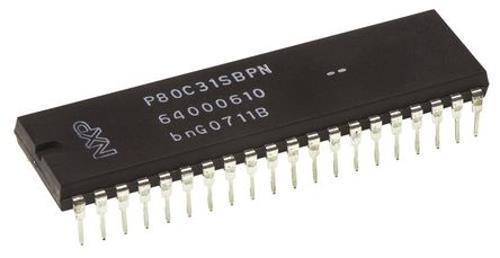

NXP P80C31SBPN,112, 8bit 80C51 Microcontroller, 16MHz ROMLess, 40-Pin PDIP

  • BMUK Part # :-302-1808
  • BrandNXP
  • Mfr. Part No.P80C31SBPN,112
  •  NXP
  •
  • You will get 1 Microcontroller
NXP P80C31SBPN,112, 8bit 80C51 Microcontroller, 16MHz ROMLess, 40-Pin PDIP





Product Details

80C51 Family Microcontrollers, NXP

80C51 Microcontrollers, NXP

Specifications
Family NameP80C
Package TypePDIP
Mounting TypeThrough Hole
Pin Count40
Device Core80C51
Data Bus Width8bit
Maximum Frequency16MHz
RAM Size128 B
Number of PWM Units1
Typical Operating Supply Voltage2.7 → 5.5 V
Minimum Operating Temperature0 °C
Program Memory TypeROMLess
Instruction Set ArchitectureCISC
PWM Resolution16bit
PWM Channels3
Dimensions52.5 x 14.1 x 4mm
Length52.5mm
Pulse Width Modulation3 x 16 bit
Number of UART Channels1
Maximum Operating Temperature+70 °C
Height4mm
Timers3 x 16 bit
Timer Resolution16bit
Width14.1mm
Number of Timers3


For a Specification PDF Please   CLICK HERE

Thank you for looking, if you have any questions please ask or call us.

Please see our other items for a wide range of Electronic components.







TE Connectivity Black Heat Shrink Tubing, 9.5mm, 2:1, 10m Length

TE Connectivity
Product Details

DR-25 Heat shrink Tubing (Shrink Ratio 2:1)

Robust and flexible heat shrink tubing. It protects wires and cables against damage from chemicals, abrasion, and fluids. The tubing is ideal for use in high temperature environments as it has been specially designed for long term heat resistance and is flame retardant.


Features and Benefits
• Offers excellent protection and insulation
• Provides strain relief
• Performs well under long-term heat exposure
• The tubing is printed with the product description and size
• Shrink ratio of 2:1
• Use with System 25 range products for a complete cable harness system

Standards

VG95343 Part 5 Type D, VDE 0341/Pt 9005, AMS-DTL-23053/16, BS36-198 Part 3 10A.



https://uk.rs-online.com/largeimages/L244079-01.gif
https://uk.rs-online.com/largeimages/LD219648-01.gif
https://uk.rs-online.com/largeimages/LF219648-10.gif
https://uk.rs-online.com/largeimages/LI219648-10.gif



High Temperature

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Sleeve Diameter9.5mm
Shrunk Diameter4.8mm
ColourBlack
Sleeve TypeHeat Shrink
Shrink Ratio2:1
Sleeve Length10m
MaterialElastomer
Minimum Operating Temperature-75°C
Maximum Operating Temperature+150°C
Dielectric Strength8kV/mm

Microchip MCP7940M-I/SN Real Time Clock — Calendar, NV SRAM, 64B RAM 8-Pin SOIC

  • BMUK Part # :-761-7627
  • BrandMicrochip
  • Mfr. Part No.MCP7940M-I/SN
Microchip
Product Details

MCP7940M I²C Real-Time Clock/Calendars

The Microchip MCP7940M is Real-Time Clock Calendar (RTCC) that supports I²C communications. The MCP7940M includes a digital trimming circuit for accuracy which can compensate for crystal tolerance and temperature.

The MCP7940M features a multi-functional output that can be configured as an alarm output, to output a selectable frequency square wave or as a general purpose output.



Features

2-Wire Serial Interface, I²C™ Compatible: I²C clock rate up to 400 kHz
On-Chip Digital Trimming/Calibration: ±1 ppm resolution, ±129 ppm range
Tracks Hours, Minutes, Seconds, Day of Week, Day, Month and Year
Leap Year Compensated to 2399
12/24 Hour Modes
Oscillator for 32.768 kHz Crystals: Optimised for 6-9 pF crystals
Dual Programmable Alarms
Versatile Output Pin
Wide Operating Voltage Range: 1.8V to 5.5V
Low Typical Timekeeping Current: 1.2μA at 3.3V



Real Time Clock Peripherals - Microchip

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
FunctionsCalendar, NV SRAM
Date FormatDW:DM:M:Y
Time FormatHH:MM:SS
User RAM64B
Bus TypeSerial-I2C
Mounting TypeSurface Mount
Package TypeSOIC
Pin Count8
Dimensions4.9 x 3.9 x 1.25mm
Length4.9mm
Width3.9mm
Height1.25mm
Maximum Operating Supply Voltage5.5 V
Minimum Operating Supply Voltage1.8 V
Maximum Operating Temperature+85 °C
Minimum Operating Temperature-40 °C
