Description
CMS50M
1.Introduction
CMS50M Pulse Oximeter is a portable equipment adopting advanced technology, it mainly checks SpO2 and PR value through the finger, which provides advanced, non-invasive and scientific means for quantitative measurement of oxygen saturation.
CMS50M Pulse Oximeter is applicable for use in plateau area, community healthcare, oxygen bar, Fitness clubs, physical training room, family and medical institution, etc.
2.Features
1) Can measure SpO2 and Pulse Rate accurately
2) SpO2 and Pulse Rate display,bar graph display
3) Battery voltage low indication
3.Performance
SpO2 measurement range: 0%~100%
Accuracy: 70%~100%: ±2%
0%~69%: unspecified
PR measurement range: 30bpm~250bpm
Accuracy: ±2bpm or ±2%, whichever is greater.
Resolution:
SpO2: 1%
PR: 1bpm
Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2%, whichever is greater.
Resistance to surrounding light: The deviation between the value measured in the condition
of man-made light or indoor natural light and that of darkroom is less than ±1%.
Working current: ≤25mA
Power supply: two “AAA” batteries
Safety classification: type BF applied part
4.Physical characteristic
Dimension: 57mm(L) × 34mm(W) × 31mm(H)
CMS50N
1.Introduction
CMS50N Pulse Oximeter is a portable equipment adopting advanced technology, it mainly checks SpO2 and PR value through the finger, which provides advanced, non-invasive and scientific means for quantitative measurement of oxygen saturation.
CMS50N Pulse Oximeter is applicable for use in plateau area, community healthcare, oxygen bar, Fitness clubs, physical training room, family and medical institution, etc.
2.Features
1) Can measure SpO2 and Pulse Rate accurately
2) SpO2 and Pulse Rate display,Pulse Rate waveform and bar graph display
3) Battery voltage low indication
4) The display mode can be changed.
5) Screen brightness adjustable
3.Performance
SpO2 measurement range: 0%~100%
Accuracy: 70%~100%: ±2%
0%~69%: unspecified
PR measurement range: 30bpm~250bpm
Accuracy: ±2bpm or ±2%, whichever is greater.
Resolution:
SpO2: 1%
PR: 1bpm
Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2%, whichever is greater.
Resistance to surrounding light: The deviation between the value measured in the condition
of man-made light or indoor natural light and that of darkroom is less than ±1%.
Working current: ≤30mA
Power supply: two “AAA” batteries
Safety classification: type BF applied part
4.Physical characteristic
Dimension: 57mm(L) × 34mm(W) × 31mm(H)
CMS50D+(with USB cable and PC Software)
Instructions
Principle of the CMS50D+ Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.
Major Features
Integrated with SpO2 probe and processing display module
Small in volume、light in weight and convenient in carrying
Operation of the product is simple ,low power consumption
Operation menu for the function setting
SpO2 value display
Pulse rate value display, bar graph display
Pulse waveform display
The display mode can be changed
A pulse rate sound indication
With measured data overruns limits and low-voltage alarm function，the upper/down alarm range can be adjustable
Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage，and with alarm function
With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers
Real-time data can be transmitted to computers
RF Wireless communication function(option)
Connected with an external oximeter probe(option)
Main performance
Display Mode: 0.96" Dual color OLED display
Screen Resolution: 128*64
SpO2 Measuring Range: 0%～100%(the resolution is 1%)
Accuracy: 70%～100%: ±2% ,Below 70% unspecified.
PR Measuring Range 30bpm～250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Power Consumption: less than 80mA
Voltage:DC 2.6V～3.6V
Power Supply:1.5V (AAA size) alkaline batteries × 2
Battery working hour: The theoretical number is 32 hours.
Safety Type:Interior Battery, BF Type
Accessories
a hanging rope
a user manual
a data line
PC software
Physical Identity
Dimension:58.5(L) × 31(W) × 32 (H) mm
Weight:About 50g (with the batteries)
Certification
CE, FDA
CMS50E(rechargeable,USB,PC software)
Introduction
The CMS50E Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology in accordance with Capacity Pulse Scanning & Recording Technology, which can be used to measure human oxygen saturation and pulse rate through finger. The device is suitable for being used in family, hospital, oxygen bar, community healthcare and physical care in sports, etc. (It can be used before or after exercise, but not recommended to use during exercising).
Features
1)Integrated SpO2 sensor and display module
2)Small in volume, light in weight and convenient in carrying
3)Easy to operate, low power consumption
4)Operation menu for function settings
5)SpO2 value display
6)Pulse rate value display, bar graph display
7)Pulse waveform display
8)Display direction can be changed
9)Screen brightness can be changed
10)Pulse rate sound indication
11)With measured data overruns limits and low-voltage alarm function, the upper/lower alarm limit can be adjusted
12)Battery capacity indication
13)Low-voltage indication: Low-voltage indication appears before working abnormal caused by low voltage.
14)Data storage function, stored data can be uploaded to computer
15)Data transmission in real-time
Performance
1)Display mode: 1.3" 65K color OLED screen
2)Screen resolution: 128*96
3)SpO2 measuring range: 0%~100% (resolution is 1%)
Accuracy: 70%~100%: ±2%, Below 70% unspecified.
4)PR measuring range: 30bpm~250bpm (resolution is 1bpm)
Accuracy: ±2bpm or ±2% (whichever is greater)
5)Measurement performance in weak filling condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2bpm or ±2% (whichever is greater).
6)Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
7)Power consumption: no more than 100mA
8)Voltage: DC 3.6V~4.2V
9)Power supply: 3.7V rechargeable lithium battery × 1
10)Battery working hour: 20 hours in theoretical
11)Battery service life: no less than 500 times of charge and discharge
12)Safety type: Internally powered equipment, Type BF applied part
Accessories
Lanyard 1pc
User Manual 1pc
Data line 1pc
PC software 1pc
Physical characteristic
Dimension: 57(L) × 32(W) × 30(H) mm
Weight: about 45g (with one lithium battery)

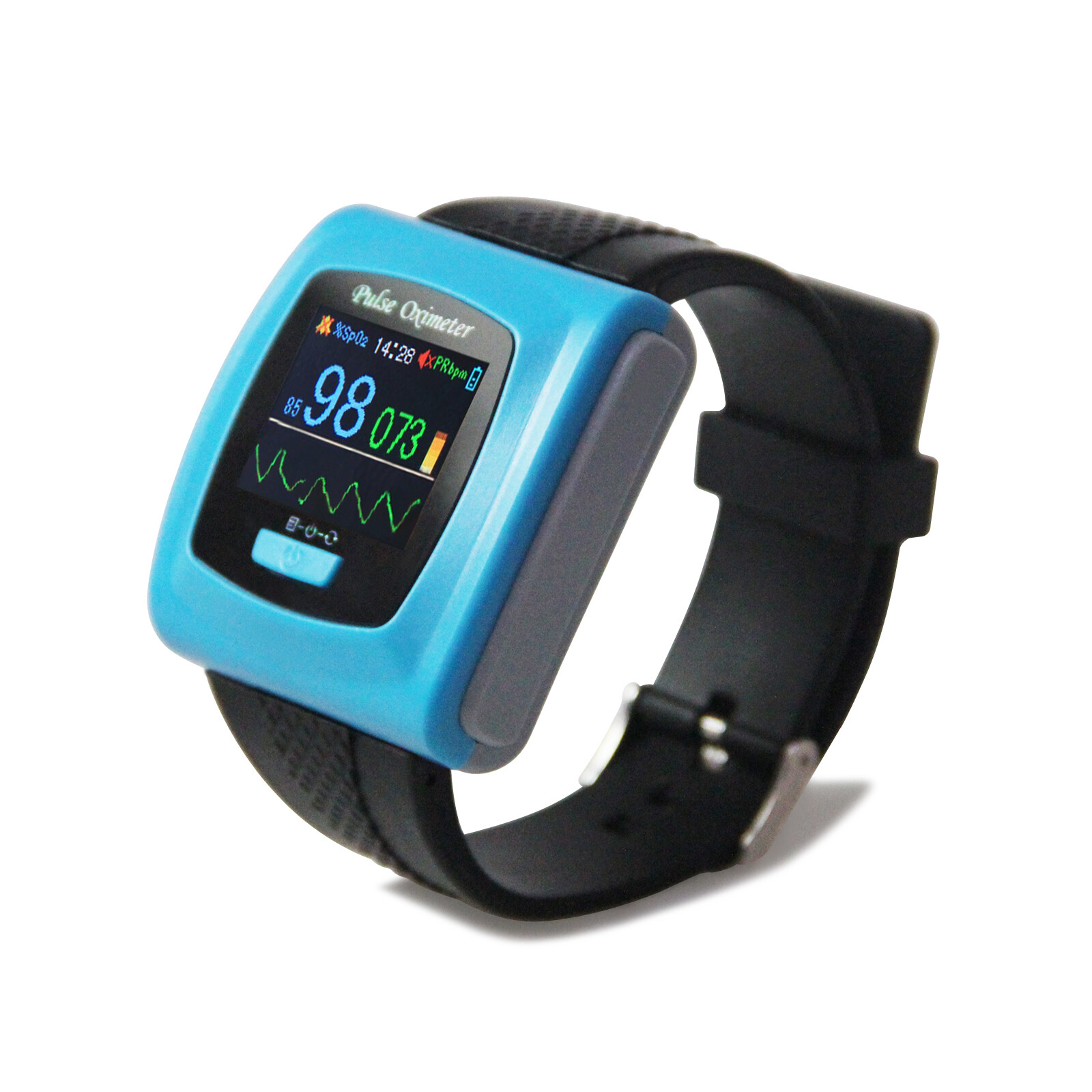

CMS50F(rechargeable,USB,PC software,external probe)
Principle of the CMS50F Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.
Major Features
◆Small in volume、light in weight and convenient in carrying
◆Operation of the product is simple ,low power consumption
◆SpO2 value display
◆Pulse rate value display, bar graph display
◆Pulse waveform display
◆The display mode can be changed
◆Screen brightness can be changed
◆A pulse rate sound indication
◆With measured data overruns limits and low-voltage alarm function，the upper/down alarm range can be adjustable
◆With clock function
◆Battery capacity indication
◆Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage，and with alarm function
◆With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers
◆Real-time data can be transmitted to computers
◆Connected with an external oximeter probe
◆Wireless communication function（only for CMS50FW）
Main performance
◆Display Mode：65K Color OLED display
◆Screen Resolution：128*96
◆SpO2 Measuring Range：0%～100%, (the resolution is 1%).
◆Accuracy：70%～100%：±2% ,Below 70% unspecified.
◆PR Measuring Range：30bpm～250bpm, (the resolution is 1bpm)
◆Accuracy：±2bpm or ±2% (select larger)
◆Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
◆Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
◆Power Consumption：less than 100mA
◆Voltage:DC 3.6V～4.2V
◆Power Supply:Voltage 3.7 rechargeable lithium battery × 1
◆Battery working hour:20 hours
◆Battery working life:Charge and discharge no less than 500 times.
◆Safety Type:Interior Battery，BF Type
Accessories
◆a user manual
◆a USB line
◆An adult-oximeter probe
◆a wristband
Physical Identity
Dimension:61(L) × 56(W) × 24 (H) mm
Weight:About 50g (with the lithium battery*1)
Certification
CE, FDA
CMS60C(rechargeable,USB,PC software,external probe)
Instructions
The CMS60C Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology in accordance with Capacity Pulse Scanning & Recording Technology, which can be used to measure human oxygen saturation and pulse rate through finger. The device is suitable for being used in hospital, oxygen bar, community healthcare and physical care in sports, etc. (It can be used before or after exercise, but not recommended to use during exercising).
Features
Small in volume, light in weight and convenient in carrying
Easy to operate, low power consumption
Operation menu for function settings
SpO2 value display
Pulse rate value display, bar graph display
Pulse waveform display
Display direction can be changed
Screen brightness can be changed
Pulse rate sound indication
With measured data overruns limits and low-voltage alarm function, the upper/lower alarm limit can be adjusted
Battery capacity indication
Low-voltage indication: Low-voltage indication appears before working abnormal caused by low voltage.
Data storage function, stored data can be uploaded to computer
Data transmission in real-time
External SpO2 probe
Performance
Display mode: 1.77" TFT color screen
Screen resolution: 128*160
SpO2 measuring range: 0%~100% (resolution is 1%)
Accuracy: 70%~100%: ±2%, Below 70% unspecified.
PR measuring range: 30bpm~250bpm (resolution is 1bpm)
Accuracy: ±2bpm or ±2% (whichever is greater)
Measurement performance in weak filling condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2bpm or ±2% (whichever is greater).
Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Voltage: DC 3.6V~4.2V
Power supply: 3.7V rechargeable lithium battery × 1
Battery working hour: 26 hours in theoretical
Battery service life: no less than 500 times of charge and discharge
Safety type: Internally powered equipment, Type BF applied part
Accessories
◆User Manual 1pc
◆Lithium battery 1pc
◆Power adapter 1pc
◆Data line 1pc
◆CD (PC software) 1pc
◆Probe 1pc
Physical characteristic
Dimension: 87(L) × 45(W) × 22(H) mm
Weight: about 75g (with one lithium battery)
CMS60D:(USB+Software,external probe)
Introduction
CMS60D Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology in accordance with Capacity Pulse Scanning & Recording Technology, which can be used to measure SpO2 and pulse by finger. It is applicable for use in hospital, oxygen bar, community healthcare and exercise healthcare(It can be used before or after exercise, but not recommended to use during exercising).
Features
1.Small in volume, light in weight and convenient to carry.
2.Easy and simple to operate, low in power consumption.
3.With function menu.
4.Display of SpO2 value.
5.Display of PR value and bar graph.
6.Display of pulse waveform.
7.Adjustable screen brightness, PR sound indication.
8.Review function.
9.Clock function.
10.Audible prompt for over-limit and low battery.
11.Battery status indication.
12.Low battery indication.
13.Storage function for SpO2 and PR values, and data stored can be uploaded to PC.
14.Real-time data can be uploaded to PC.
15.External SpO2 probe can be connected.
Performance
Display mode: color display
SpO2 measurement range: 0 % ~ 100 %(resolution: 1 %)
Accuracy: 70%~100%: ±2%
0%~69%: unspecified
PR measurement range: 30 bpm~250 bpm(resolution: 1 bpm)
Accuracy: ±2 bpm or ±2 %, whichever is greater.
Measurement performance in weak filling condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4 %. SpO2 error is ±4 %, pulse rate error is ±2 bpm or ±2 %, whichever is greater.
Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1 %.
Power consumption: ≤ 100 mA
Voltage: DC 3.0 V
Power supply: two AA batteries
Continuous working time: 44 hours in theory
Safety class: internally powered equipment, type BF applied part
Physical characteristic
Dimension: 110 mm(L) × 60 mm(W) × 24 mm(H)
Weight: about 120 g(including battery)
Shipping
Terms of Sale
We offer 60 days return policy. 100% satisfaction is our goal!
1.All items are brand new ,with 1 year warranty.
2.If you have a defective item, you want to return or discount. Please contact us within 2 days from you receive the shipment.
3.We will refund the money to you when we get the return items or replace item for you.
4. All return items must be returned with it's original packaging and accessories. Customer is responsible for shipping charges on returned items.
Feedback
please leave me a positive feedback if you are satisfied with our products, thanks!
I will appreciate your positive feedback so much,and in any case or some problem with the products, please contact us before leaving Neutral OR Negative Feedback. I am sure I will give you a satisfied answer, thank you.
Buy safe products
The following FDA Disclaimer is required for all eBay listing in Healthcare category and is included for REFERENCE: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item.
The Fingertip Pulse Oximeter is registered on the Australian Register of Therapeutic Goods (ARTG)with the code 197923, and certified by FDA of United States and CE,TUV of Europe. The Fingertip Pulse Oximeter that is FDA 510K Approved
About Us
CONTEC Medical System----Focusing on research, manufacture and distribution of medical equipment,
CONTEC Medical System was founded in 1992 as a professional medical equipment producer.
At present,there are more than 1200 employees in our company .Our product lines cover a wide range of 13 categories,and have been distributed over 30 countries.
We are the manufacture of medical equipment for more than 20 years, main products include ECG machine,
Patient monitor,EEG machine,pulse oximeter,Fetal doppler,Blood pressure monitor and so on.
Contact Us
Looking forward to establishing a successful business relationship with you.
Contact Person:Vivian Zhang
