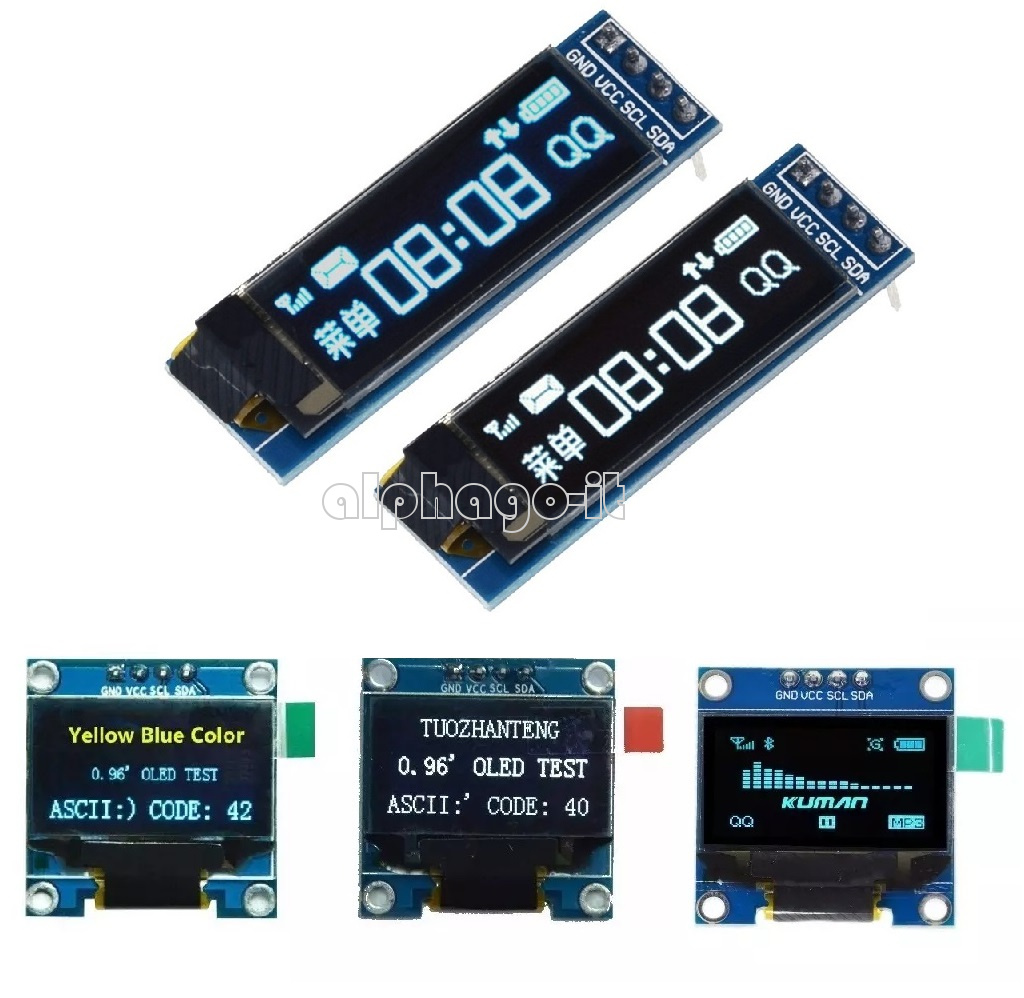

0.91 inch OLED

Description:

OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption.

Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
IIC interface
Display Color: White/Blue

Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line

Package Included:
1PC*0.91 inch OLED LCD Display Module(Optional)

0.96 inch OLED

Description:
128*64 LED display module for Arduino, supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32/2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type: IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V~5V DC
Working Temperature: -30℃~70℃
Character Colors: White/Blue/Yellow&Blue (optional)
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70x19.26x1.85mm/1.03x0.76x0.07 inch(approx)
Active Area: 21.74x11.2mm/0.86x0.44 inch(approx)
Driver IC: SSD1306

Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness

Package Content:
1 piece White/Blue/Yellow&Blue 0.96" I2C IIC Serial 128x64 OLED LCD LED Display Module for Arduino
