一, Introduction:

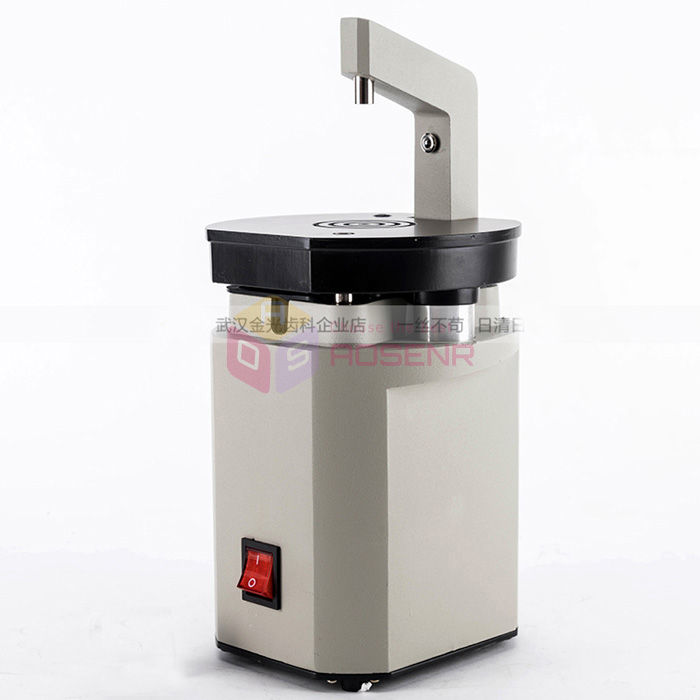

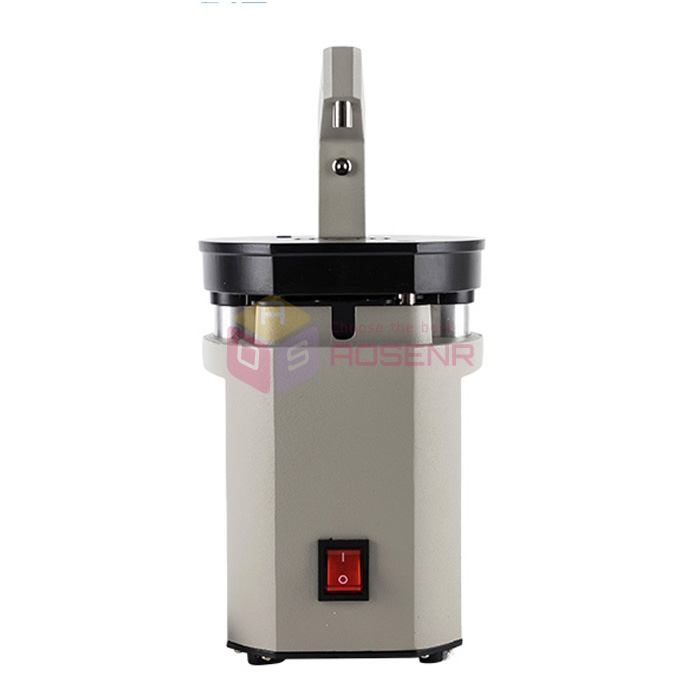

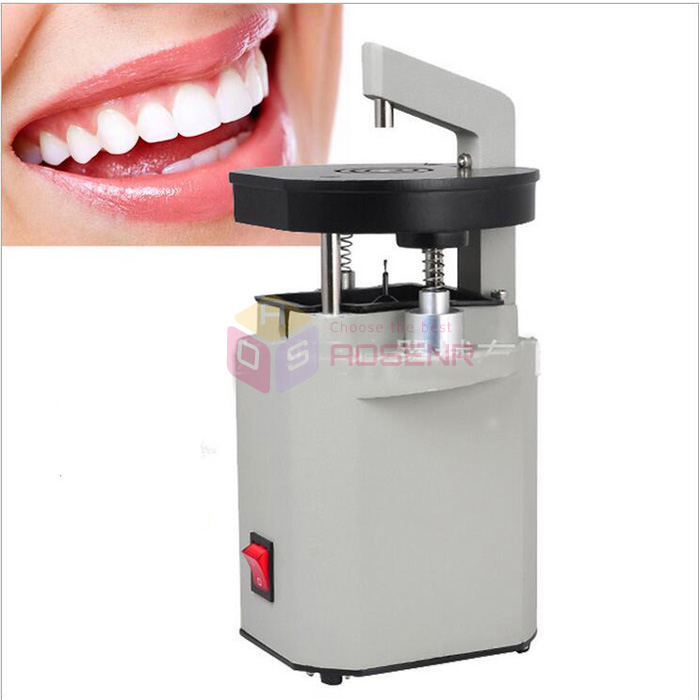

This machine is a special precision equipment for dental use, using laser
positioning, to ensure accurate pinning nail hole. The machine uses a
carbide step drill bit, and the drilling depth can be adjusted.
二, Performance Indicators:

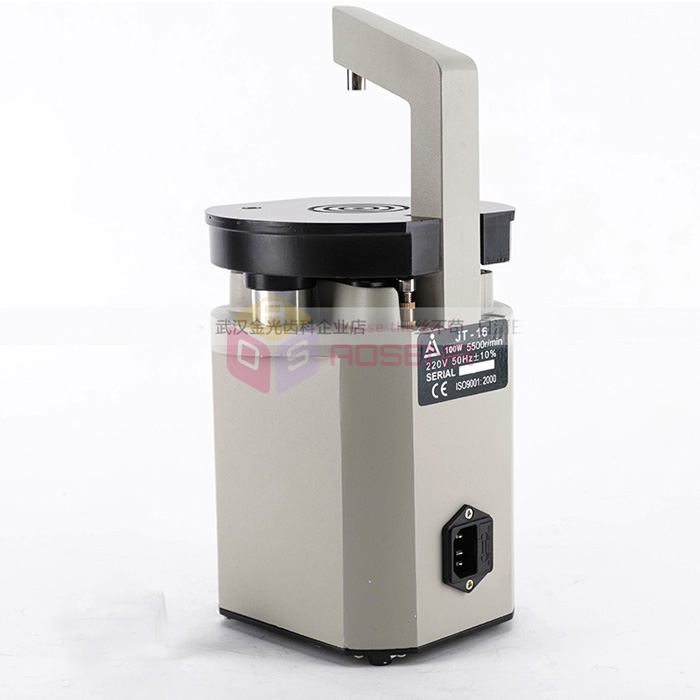

1, Power supply: 220V / 50Hz, 80W (110V / 60Hz, 80W)
2, Speed: 5500 rpm
3, Drill diameter: φ3 * φ1.85, φ3 *
φ1.95 Dimensions: 160 * 160 * 330mm
三, Product Use:
1, Plug in a good grounding AC 220V power supply, turn on the power switch power
indicator light, while the red laser dot light (φ1 ~ φ1.5).
2, Just adjust the required drilling
depth, put the gypsum model can be drilling.

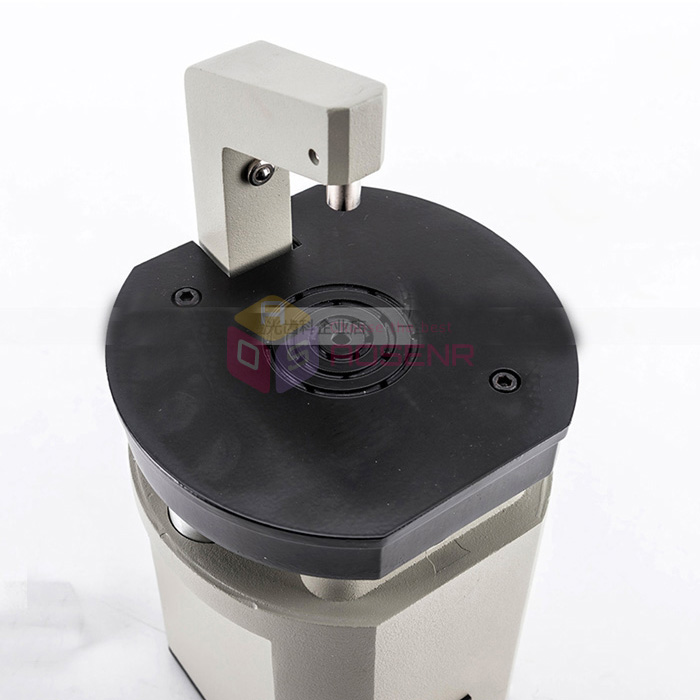

3, Special note: When the gypsum model
put the table laser to identify the hole, be sure to hands together with the
work of the gypsum model together, while pressing down until the drilling is
completed, and then together on the reset.
4, Midway must not let go, or easy to
break the drill bit or hole is not allowed and too large.
四, How to replace the laser head
1, Unplug the power plug and open the bottom cover;
2, Loosen the laser head and tighten the
screw, pull the laser head out, be careful not to pull the back of the wire (the
other hand in the inside line);
3, Cut the wire connected to the back of
the laser head, the wire is red and white, the white line is shorter than the
red line cut 20mm, respectively, into the heat shrink tube and the new laser
head red and white two lines color welding, and then heat shrink tube (Hair
dryer or open flame can be) to shrink the package can be tight;
4, In front of the line, behind the
cable, the laser head into the hole vertically, tighten the pin screw;
5, Power on the light, if there is a
slight deviation, the table can be removed, and then four motor fixing screws
loose (do not twist off), adjust the center and then tighten the screws can be.
五, How to replace the drill bit:
1, Turn off the power and remove the rubber cartridge.
2, With a high wrench stuck the spindle
root flat mouth, low wrench stuck chuck shell flat mouth, loosen the thread can
replace the drill, proofreading depth with two wrenches can be tightened.

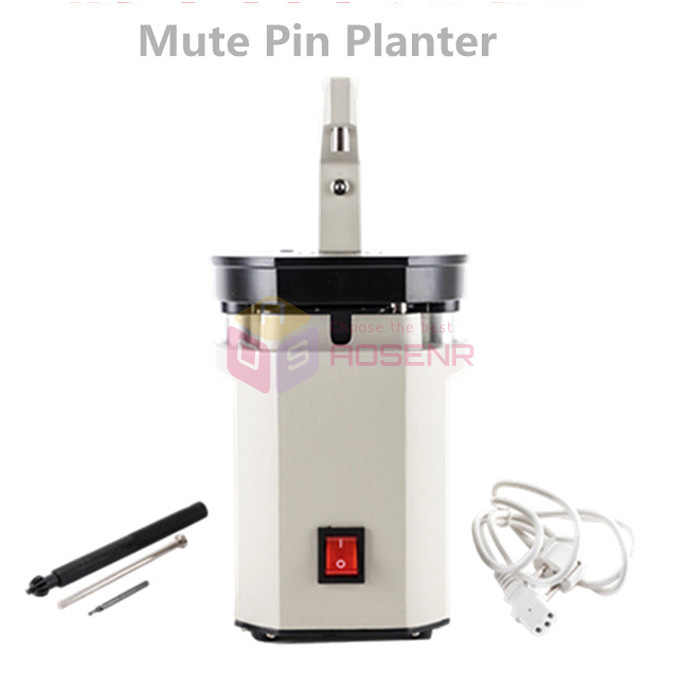

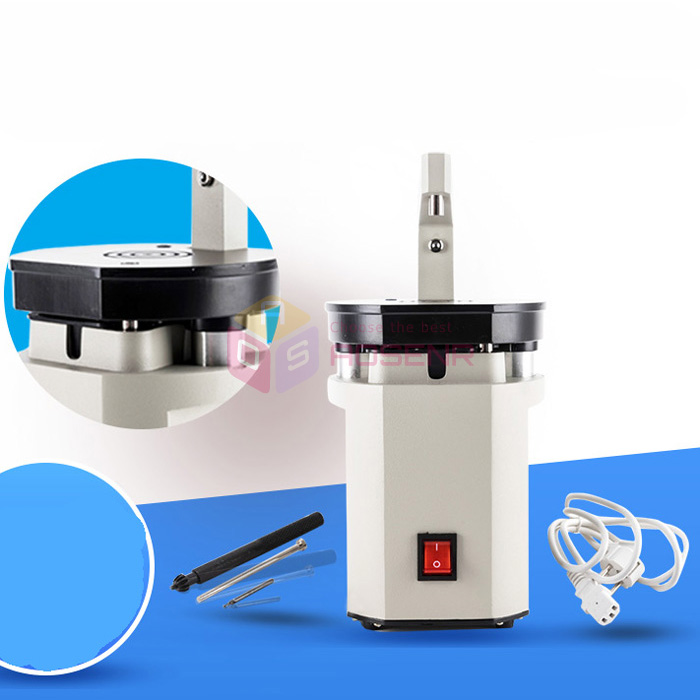

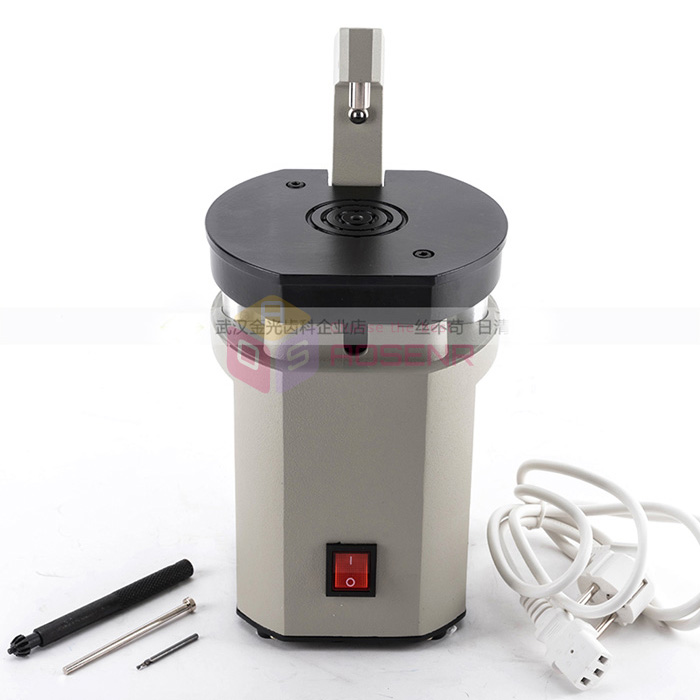

Package Included:
1X Laser Pindex Drill Machine
|
