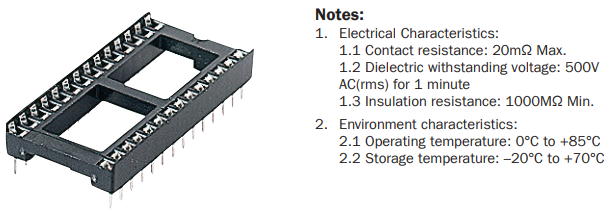

TruConnect 40 Pin DIL Socket 15.24mm PDIP IC Socket Op-Amp
High quality 40-pin dual-in-line narrow 15.24mm sockets with black thermoplastic body and tin-plated copper alloy contacts. Sockets have chamfered side walls to assist insertion. One end is indented for easy identification of the polarisation.
- Ideal for production and replacement use
- PCB hole required: 0.6mm
- Overall height above PCB: 4.8mm
- UL94V-0 approved
You will get a pack of 5 IC sockets

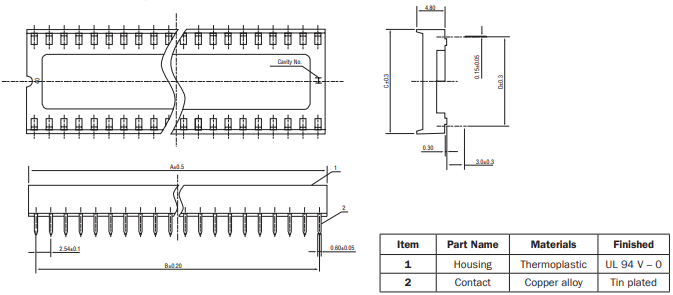

Technical Data
|
BMUK ORDER CODE |
POSITION |
Dimensions |
|||
|
A |
B |
C |
D |
||
|
22-0111 |
40 |
50.80 | 48.26 | 17.78 | 15.24 |
