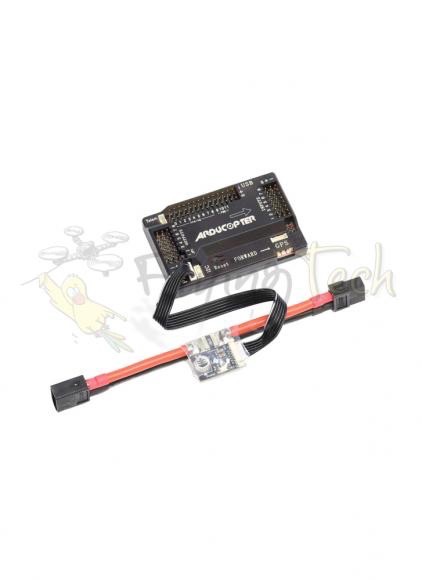

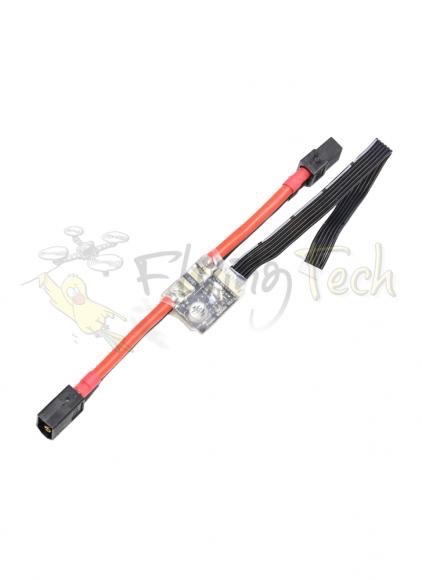

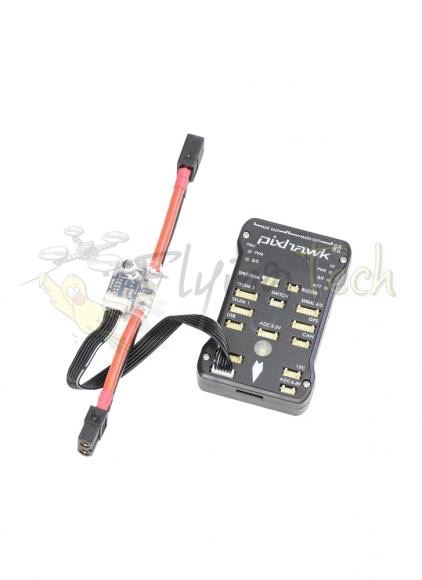

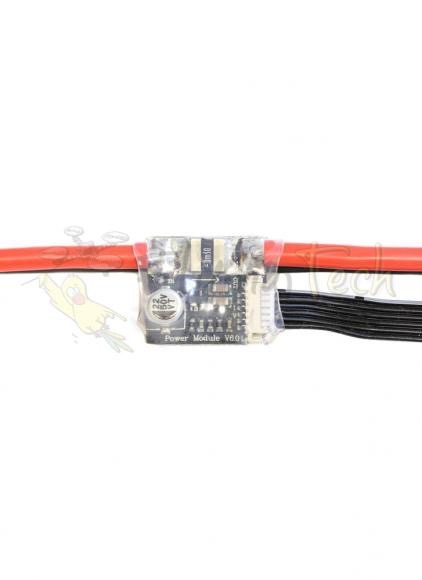

Pixhawk / APM XT60 90A Power Module 2-6S with 3A UBEC (V6.0)
....
UK STOCK - FREE SAME DAY 1ST CLASS SHIPPING
This Power Module for the Pixhawk / APM provides a plug and play solution for powering your flight controller with clean power from a LiPo battery, as well as reporting battery voltage and current consumption for logging and live telemetry. The on-board switching regulator outputs 5.3V at a maximum of 3A, and can be used up to 28Volts (6S LiPo) with a maximum current sensing rating of 90 amps. The Power Module comes ready to use with XT60 connectors pre-fitted, and shrink wrapped for protection.
The Pixhawk and APM 2.x have a dedicated connector for attaching a Power Module (PM). This is useful because it:
Provides a stable power supply which reduces the chances of a brown-out.
Allows monitoring of the battery’s voltage and current and triggering a return-to-launch when the voltage becomes low or the total power consumed during the flight approaches the battery’s capacity.
Allows the autopilot firmware to more accurately compensate for the interference on the compass from other components.
Note: The Power Module is rated at 3 Amps to power the FC, receiver and peripherals (GPS and Telemetry radio) ONLY. To power servos use an ESC with an adequate BEC or a standalone BEC plugged into the Aux output rail.
Specification:
Max input voltage: 28V
Max current sensing: 90A
Switching regulator outputs: 5.3V at 3A max
Connector: 6-pos Molex cable plugs directly to APM/Pixhawk 'PM' connector
Voltage and current measurement configured for 5V ADC
