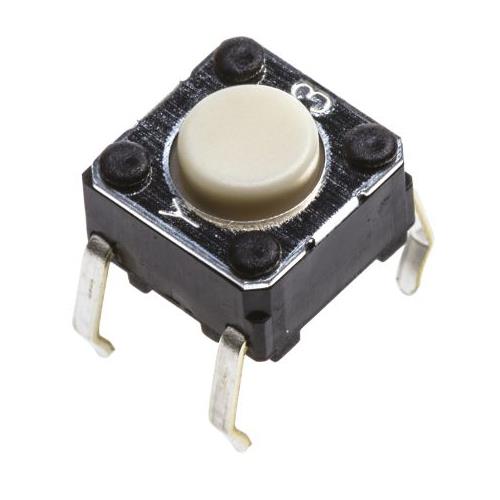

Grey Plunger Tactile Switch, SPST-NO 50 mA @ 24 V dc 0.9mm
- BMUK Part # :-686-6847
- BrandOmron
- Mfr Part No.B3F1000
-
- You will get a pack of 5 Switches
Product Details
Tactile Switches Omron B3F1000 series (6 x 6 mm)
Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators
Tactile

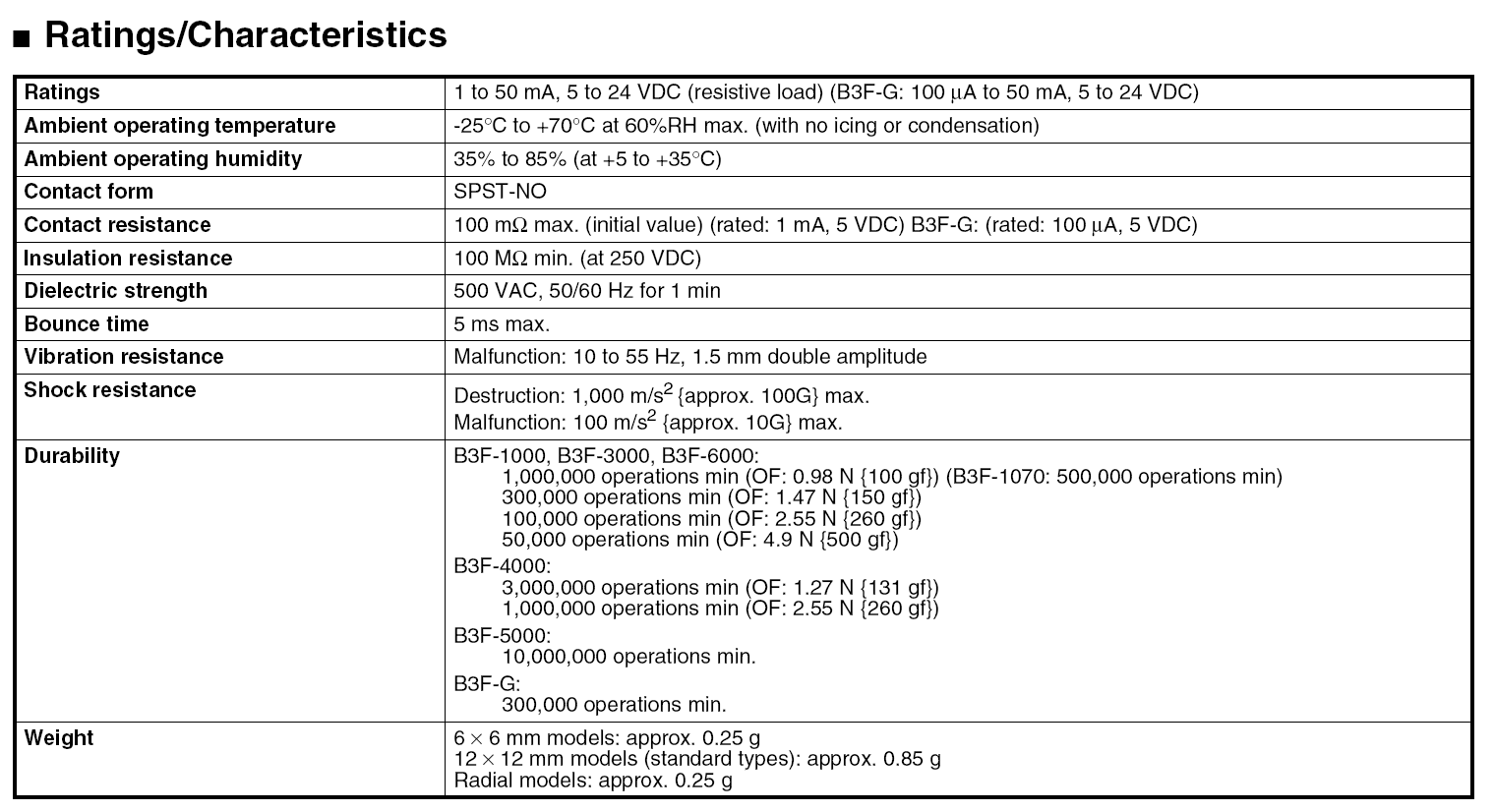

Specifications
Actuator Type
Plunger
Brand
Omron
Contact Current Rating
50 mA @ 24 V dc
Actuator Length
0.9mm
Dimensions
6 x 6 x 4.3mm
Actuator Colour
Grey
Contact Configuration
SPST-NO
Operating Force
0.98 N

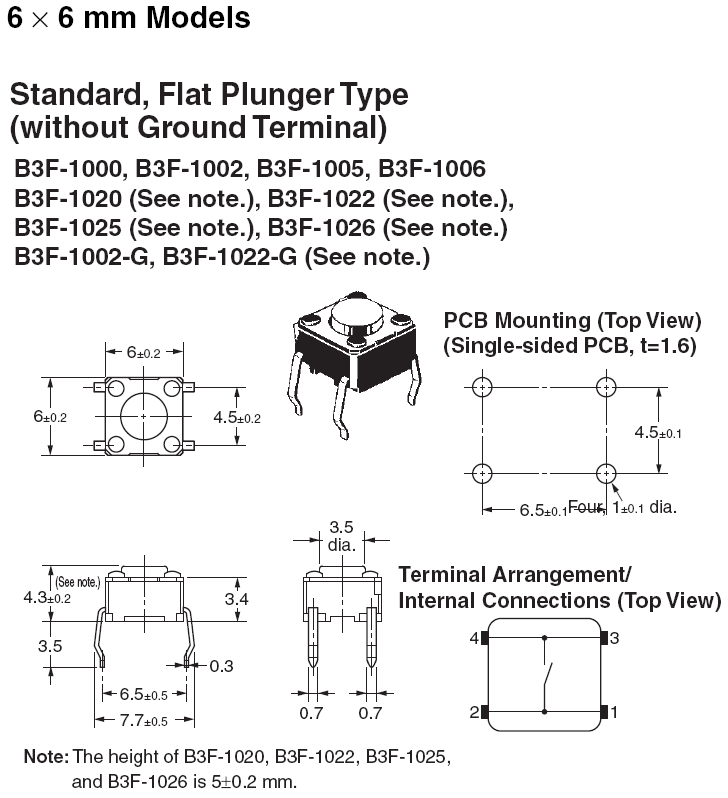

CAD Drawing
3D CAD Model
Height
4.3mm
Contact Material
Gold Plated
Terminal Type
Through Hole
