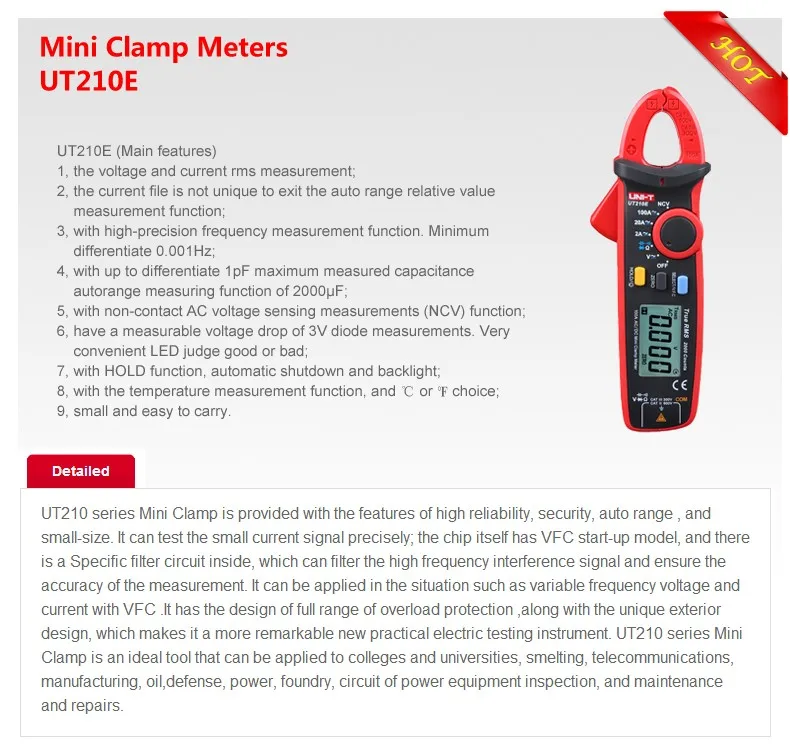

UNI-T UT210E True RMS Mini Digital Clamp Meters AC/DC Current Voltage Auto Range VFC Capacitance Non Contact Multimeter Diode
Features
1. VFC, low pass filter
2. NCV
3. Ergonomic and lightweight
4. Auto range, 2~3/s sampling rate
5. True RMS
6. ZERO mode
7. LCD backlight, data hold
8. Auto power off, low battery indication
| Specifications | Range | Best Accuracy |
| Model | UT210E | |
| AC Current(A) | 20A/200A | ±(2.5%+5) |
| DC Current(A) | 20A/200A | ±(2%+3) |
| AC Voltage(V) | 2V/20V200V/600V | ±(1%+3) |
| DC Voltage(V) | 200Mv/2V/20V200V/600V | ±(0.7%+3) |
| Resistance(Ω) | 200Ω/2Kω/20Kω/200Kω/2MΩ/20MΩ | ±(1.0%+2) |
| Capacitance(F) | 20Nf/200Nf/2Μf/20Μf/200Μf/2Mf/20Mf | ±(4%+5) |
| Features | ||
| Display Count | 2000 | |
| Jaw Capacity | Around 17mm | |
| Auto Range | √ | |
| True RMS | √ | |
| Diode | √ | |
| Data Hold | √ | |
| MIN/MAX | √ | |
| Continuity Buzzer | √ | |
| Data Storage | √ | |
| LCD Backlight | √ | |
| Auto Power Off | Around 15minutes | √ |
| Low Battery Indication | ≤2.5V | √ |
| Input Protection | √ | |
| Input Impedance for DCV | ≥10MΩ | √ |
| Zero | √ | |
| NCV | √ | |
| V.F.C | √ | |
| General Characteristics | ||
| Power | AAA 1.5V × 2(Not included for air shipping ) | |
| LCD Size | 39.3mm × 26.5 mm | |
| Product Color | Red+ Grey | |
| Product Net Weight | 170g | |
| Product Size | 175mm × 60mm × 33.5mm | |
| Standard Accessories | Batteries,Test Lead, | |
| Standard Individual Packing | Gift Box ,Carrying Bag | |
Kindly access the following link and download the English version user manual in the "Docs& Software".
https://www.uni-trend.com/meters/html/product/General_Meters/digitalclampmeters/UT210_Series/UT210E.html
