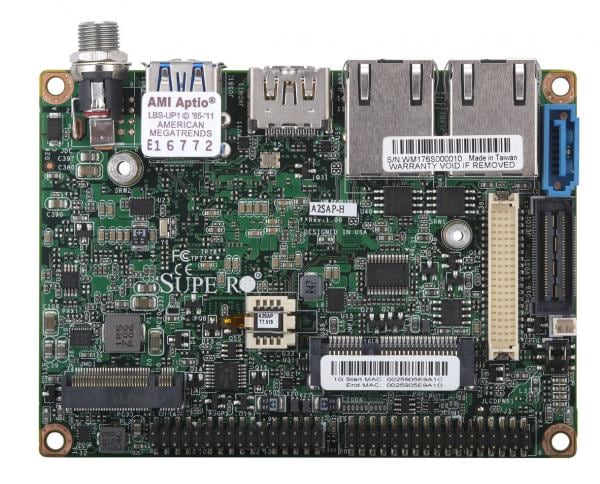

Supermicro Motherboard Xeon Boards A2SAP-H

Low Power
Embedded
Key Features
  1. Intel® Atom processor E3940 (9.5W, 4C)
  2. Intel® Goldmont microarchitecture 14nm System-on-Chip
  3. Dual LAN with Intel® Ethernet Controller I210-IT
  4. 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCI-E, 1 SATA 3.0
  5. 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
  6. Extension I/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SATA, SMBus, Power)
  7. 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via headers), 2 COM ports (via headers)
  8. Supports 12V DC power input
  9. Wide temperature suppot from -30°C to 75°C


Links & Resources

Product SKUs
MBD-A2SAP-H
  • A2SAP-H

Physical Stats
Form Factor
  • Pico-ITX 2.5" SBC
Dimensions
  • 4" x 2.83" (10.16cm x 7.19cm)

Processor/Cache
CPU
  • Intel® Atom® Processor E3940.
  • Single Socket FCBGA1296 supported, CPU TDP support 9.5W
Cores / Cache
  • 4 cores, 4 threads / 2MB L2 cache

System Memory
Memory Capacity
  • Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1866MHz, in 1 DIMM slot
Memory Type
  • DDR3L up to 1866Mhz 8GB
DIMM Sizes
  • 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V

On-Board Devices
Chipset
  • System on Chip
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210IT
Audio
  • ALC 888S HD Audio
Graphics
  • Intel® HD Graphics
  • Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI(max. resolution up to 3840x2160@30Hz)

Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 2 USB 3.0 ports (2 rear)
Video Output
  • 1 HDMI port, 1 48-bit LVDS port,
  • Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI(max. resolution up to 3840x2160@30Hz)
Others
  • 32 pin Connector A (2x16-Pin,2.0mm pitch):2 RS232/422/485, HD AUDIO Mic-in /Headphone-out (Note:Audio only support 0~60C)
  • 34 pin Connector B (2x17-Pin,2.0mm pitch):Power/Reset button, HDD/Power LED, 8-bit GPIO, 2 USB2.0
  • 1 x SMbus and 5V/1A SATA Power box header
  • 1 x 12V DC Jack power input connector
Expansion Slots
PCI-E
  • 1 Half size Mini-PCI-E (USB2.0 x 1,PCI-E Gen2 x 1)
  • 1 EI/O (1 DP/HDMI, 2 PCI-E x1, 2 USB2.0, LPC, SATA3, SMBus, 12Vsb 2A, 5Vsb 2.8A)
M.2
  • M.2 Interface: SATA and PCI-E 2.0 x1 and USB 2.0
  • Form Factor: 2242, 3042
  • Key: B-Key
  • 1 M.2 2242/3042 B-Key (USB2.0 x 1,PCI-E Gen2 x 1,SATA Gen3 x 1)

System BIOS
BIOS Type
  • AMI UEFI

Management
Software
  • SuperDoctor® 5, Watchdog
Power Configurations
  • +12V DC Power Input
  • ACPI Power Management
  • Control of power-on for recovery from AC power loss
  • Force Power On by Jumper

PC Health Monitoring
Voltage
  • +1.35V, +12V, +3.3V, 3.3V standby, Memory Voltages, System level control, VBAT, VCGI
FAN
  • N/A
Temperature
  • CPU thermal trip support
LED
  • Standby alert LED
Other Features
  • ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, WOL

Operating Environment
Operating Temperature Range
  • -30°C ~ 75°C (-22°F ~ 167°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A2SAP-H 1 A2SAP-H Motherboard
Screw bagMCP-110-00096-0N1Screw bag for M3L4.5 screws x 4 and M4 Standoff 11mm height x 4
