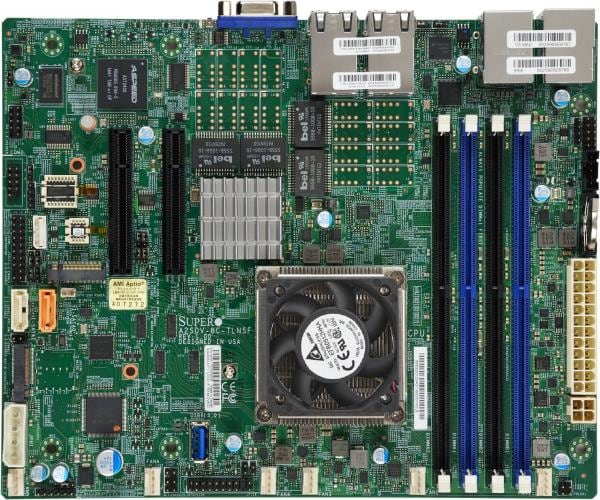

| MBD-A2SDV-12C+-TLN5F
|
|
| |
|
|
| Form Factor |
|
| Dimensions |
-
9" x 7.25" (22.86cm x 18.42cm)
|
| |
|
|
| CPU |
-
Intel® Atom™ Processor C3858.
- Single Socket FCBGA1310 supported, CPU TDP support 25W
|
| Cores / Cache |
-
12 cores, 12 threads / 12MB cache
|
| |
|
| Memory Capacity |
-
Up to 256GB Registered ECC RDIMM and DDR4-2400MHz
- Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
|
| Memory Type |
|
| DIMM Sizes |
-
4GB, 8GB, 16GB, 32GB, 64GB
|
| Memory Voltage |
|
| Error Detection |
-
Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| SATA |
-
SoC controller for 2 SATA3 (6 Gbps) ports;
|
| IPMI |
|
| Network Controllers |
-
Quad LAN with 10GBase-T with Intel® X557
Single LAN with Intel® i210 Gigabit Ethernet Controller
|
| Graphics |
|
| |
|
| LAN |
- 4 RJ45 10GBase-T ports
- 1 RJ45 GbE port (IPMI Shared LAN)
|
| USB |
- 2 USB 2.0 ports (2 headers),
- 5 USB 3.0 ports (4 rear + 1 Type A)
|
| Video Output |
|
| Serial Port / Header |
- 1 COM Port (1 header)
- 1 COM Port in RJ45 Socket
|
| TPM |
|
|
|
|
|
| PCI-E |
- 1 PCI-E 3.0 x8
- Option for Slot 6 or Slot 7
|
| M.2 |
- 1 M-Key and 1 B-Key
- M-Key Form Factor: 2242/2280
- M-Key Interface: PCI-E3.0 x2/SATA
- B-Key Form Factor: 3042/2280
- B-Key Interface: PCI-E3.0 x2/SATA/USB3
|
| |
|
| BIOS Type |
|
| BIOS Features |
|
| |
|
| Software |
- IPMI2.0, NMI, SuperDoctor® 5, Watchdog
|
| Power Configurations |
- ATX Power connector
- +12V DC Power Input
- CPU thermal trip support for processor protection
- Power-on mode for AC power recovery
|
| |
|
| Voltage |
- +12V, +3.3V, +5V, +5V
standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 6 -fan status, Chassis
intrusion header, Monitors CPU voltages, Supports system management
utility, System level control, System temperature, VBAT
|
| FAN |
- 6x 4-pin fan headers (up to
6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone,
Fan speed control, Pulse Width Modulated (PWM) fan connectors, Status
monitoring for speed control, Support 3-pin fans (w/o speed control),
System level control, Thermal control tachometer fan connectors
|
| Temperature |
|
| LED |
|
| Other Features |
-
12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX
Power connector, Chassis intrusion detection, Chassis intrusion header,
Control of power-on for recovery from AC power loss, CPU thermal trip
support for processor protection, Dual Cooling Zones, Innovation Engine,
Intel® QuickAssist Technology , M.2 NGFF connector, RoHS, SDDC, System
level control, UID, WOL
|
| |
|
| Operating Temperature Range |
-
0°C ~ 60°C (32°F ~ 140°F)
|
| Non-Operating Temperature Range |
-
-40°C - 85°C (-40°F - 185°F)
|
| Operating Relative Humidity Range |
-
10% ~ 85% (non-condensing)
|
| Non-Operating Relative Humidity Range |
-
10% ~ 95% (non-condensing)
|
|
