Dual-channel K / J / T / E / R / S / N Type ATC Thermocouple Thermometer Tester

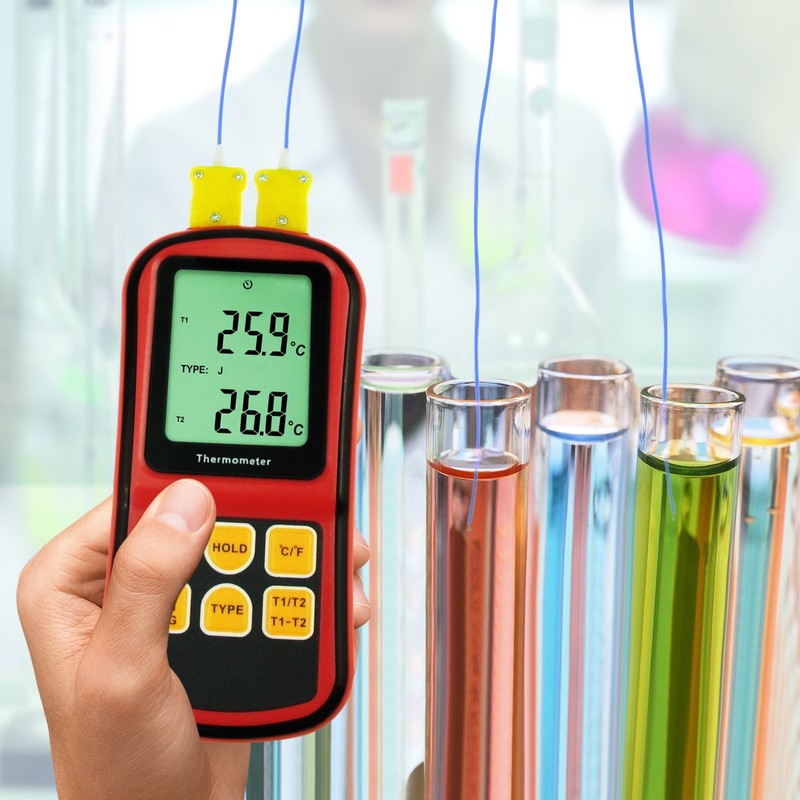

The device is able to measure the temperature of the liquid/ vapours and surface temperature of a solid object, with a considerably wider measuring range than those of mercury thermometer and alcoholmeter. Suitable for both high-temperature fields of blast furnace and cookery and low temperature measuring for liquefied hydrogen and liquefied nitrogen, etc.

FEATURES:

• High accuracy due to direct contact with the measured subject without intermediate which affects the final output
• Electrical compensation function provides the compensation for the thermocouple error so as to improve the overall precision
• To measure the thermocouple of J, K, T, E, N, S and R type
• °C/°F selectable

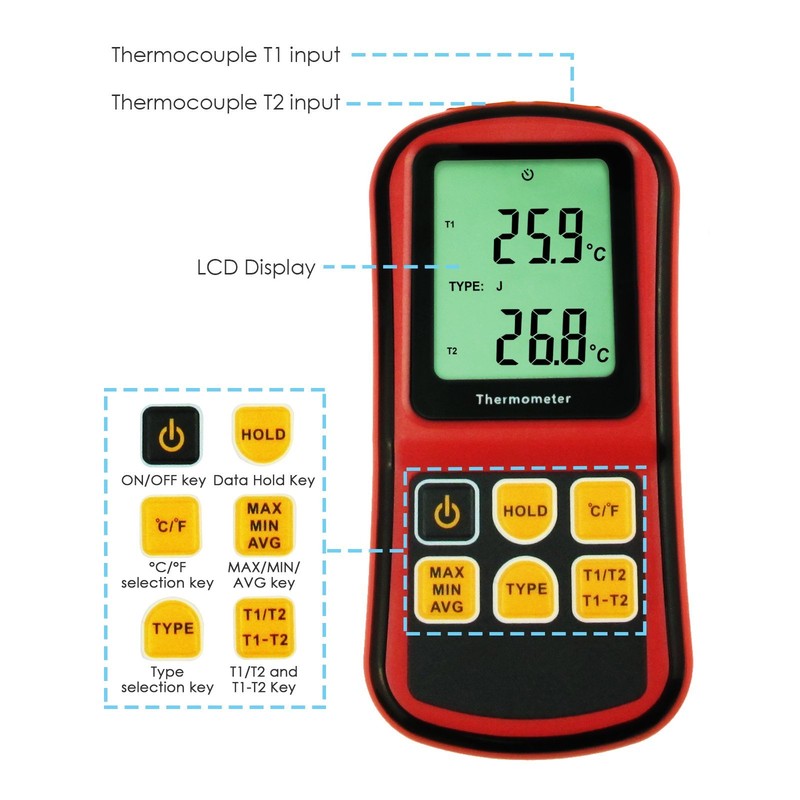

• Human centered design, easy operation

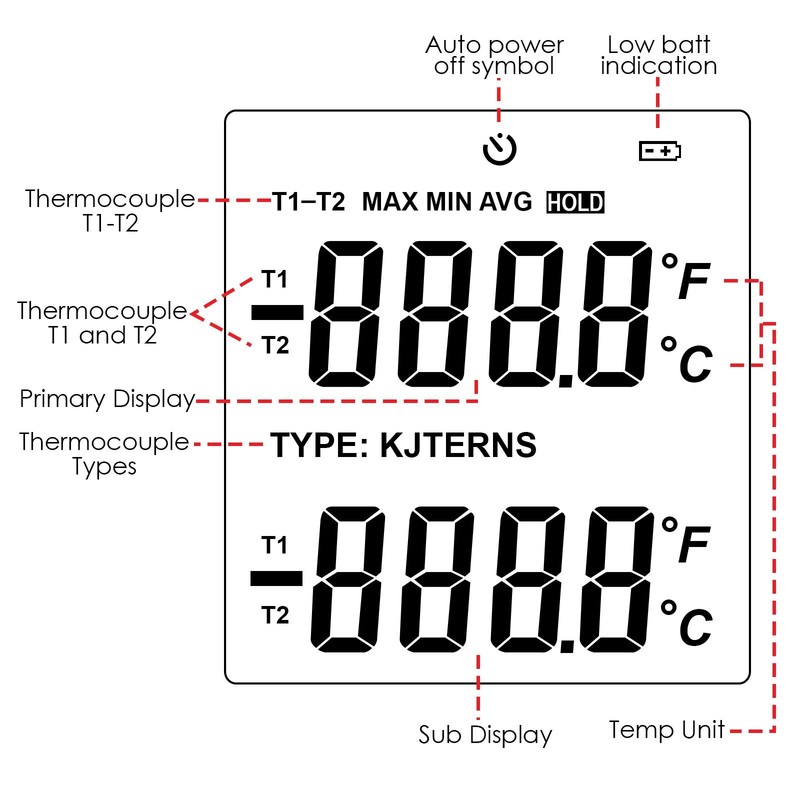

• Double display with backlight shows T1/T2 and combination of T1 and T2
• Data hold and double display with LCD backlight
• Auto power off
• Max/Min/Average value measurement
• °C/°F selectable

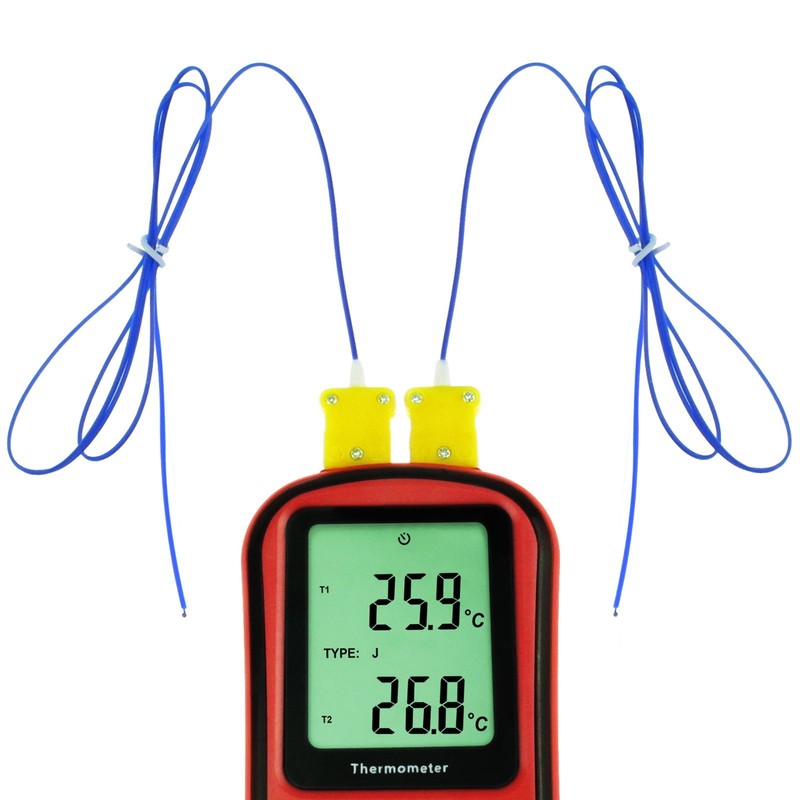

• Dual channel input
• Electrical compensation function

SPECIFICATIONS:

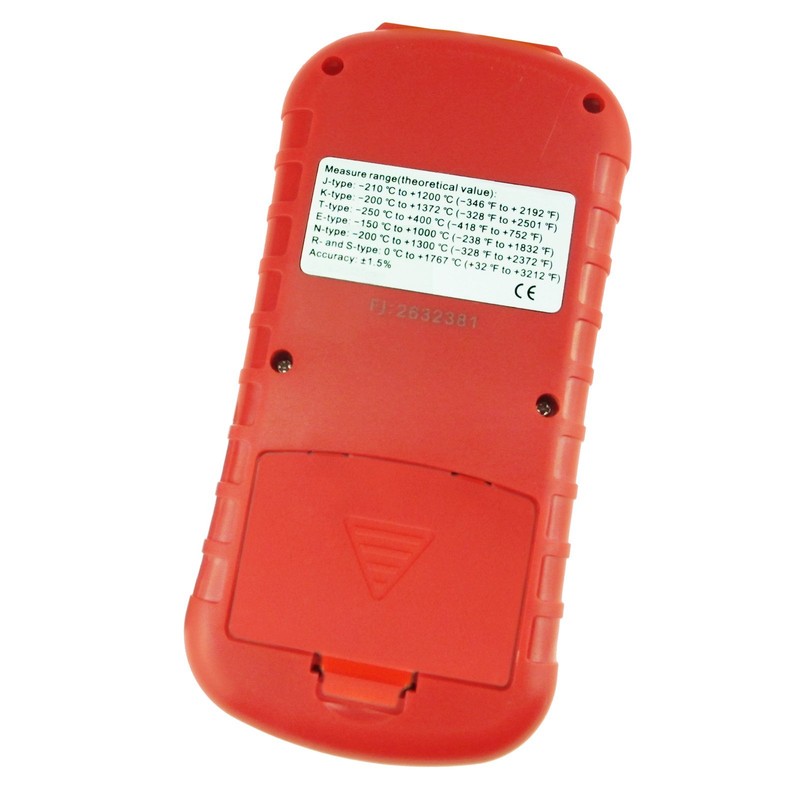

• Main Unit Measuring range:
• J-type: -210  ~ 1200°C (-346 ~ 2192°F )
• K-type: -200 ~ 1372°C (-328 ~ 2501°F )
• T-type: -250 ~ 400°C (-418 ~ 752°F )
• E-type: -150 ~ 1000°C (-238 ~ 1832°F )
• N-type: -200 ~ 1300°C(-328 ~ 2372°F )
• R-and S-type: 0 ~ 1767°C (32 ~ 3212°F )
• Resolution:
• 0.1°C/°F <1000°
• 1°C/°F ≥1000°
• Accuracy: ±0.1%+0.6°C
• Input: Bi-channel input
• Operating Temperature: 0~40°C
• Storage Temperature: -10 ~ 50°C ; 20~90% RH (humidity)
• Power supply: 3 x 1.5V AAA batteries

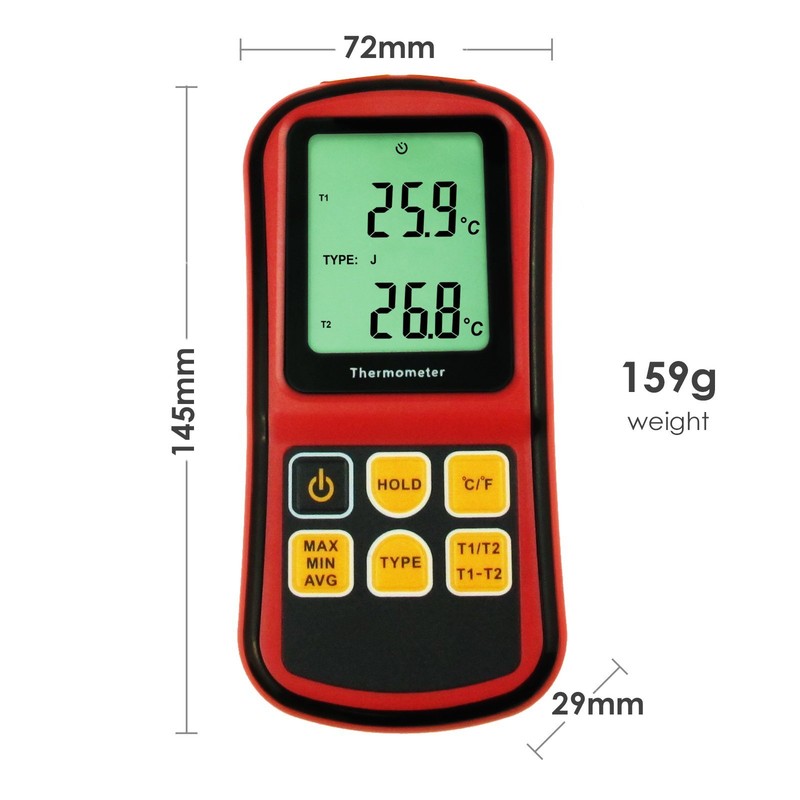

• Size: 72 x 29 x 145mm
• Weight: 159g
• K-Type Thermocouple Measuring range: -50 ~ 300°C
• Accuracy: ±1.5%

  Note: This device is fit for K-, J-, T-, E-, R-, S- and N-type thermocouple, but the measuring range of K-Type thermocouple which is included in the package is -50~300 °C

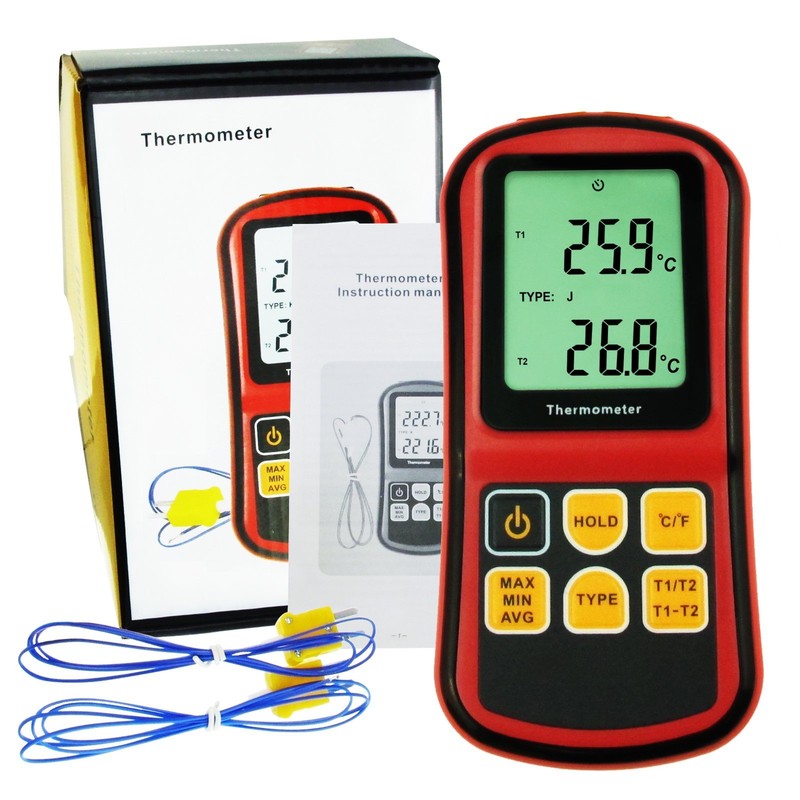

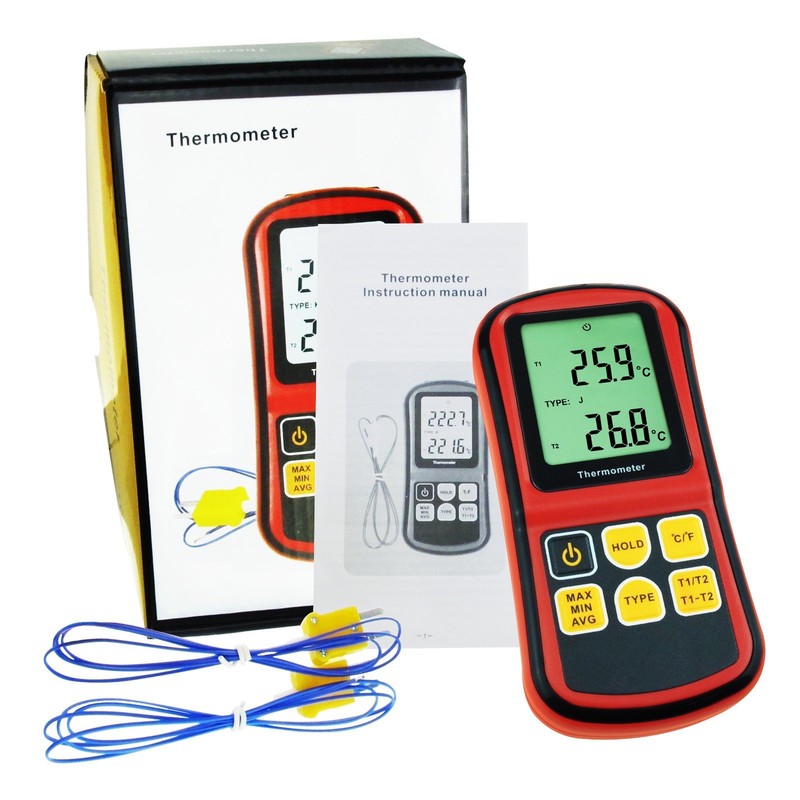

SET INCLUDES:

• 1 x Digital Thermocouple Thermometer

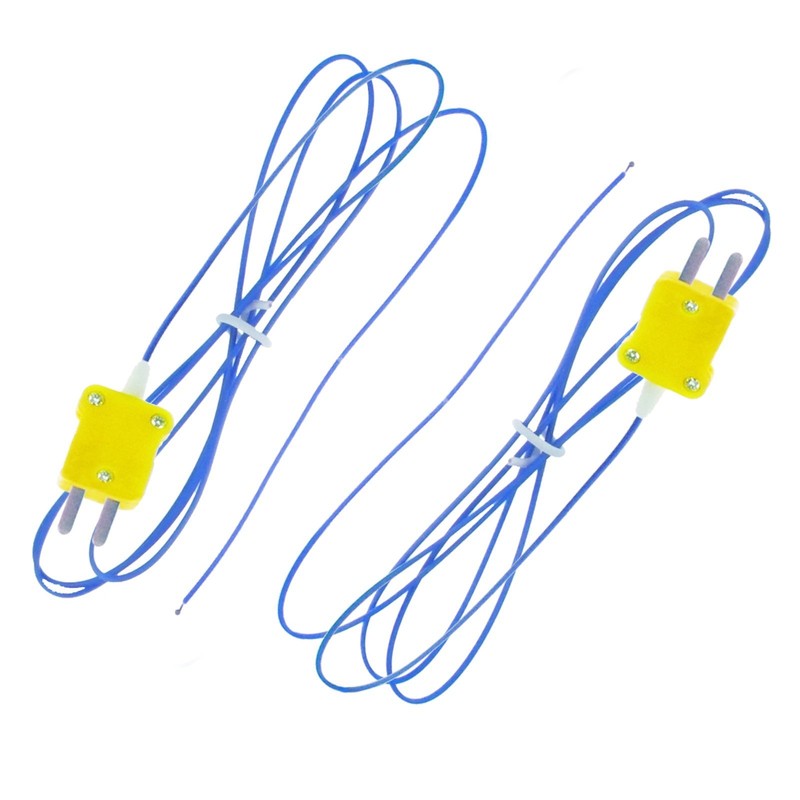

• 2 x K-type thermocouple (-50~300°C)
• 3 x AAA Battery
• 1 x English Manual
