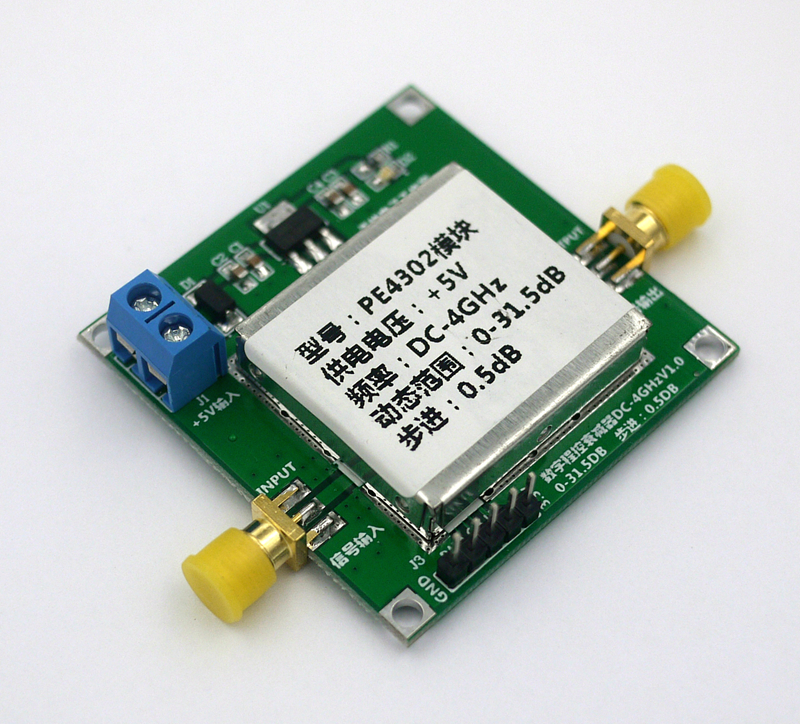

New PE4302 Digital Programmable Step Attenuator Module DC 4GHZ 0-31.5DB 0.5dB RF
Applications:
PE4302 is a high linearity, 6 digital RF step attenuator, "DSA" in 0.5 dB steps to 31.5 dB attenuation range. Frequency range from DC - 4000MHz achieve attenuation. This 50 ohm RF DSA provides parallel and serial CMOS control interface running on a single 3V supply, and maintain a high attenuation accuracy of frequency and temperature. It also has a unique control interface, allowing the user to select the initial power-up state of decay. Shielding shell and anti-reverse protection diode.
Technical Specifications:
1, power supply voltage: 5V DC (typical current 5mA)
2, programmable gain attenuation range: 0 to 31.5DB stepping 0.5DB Input Output Impedance: 50 Ohm
3, the module supports parallel and serial mode and power mode, select

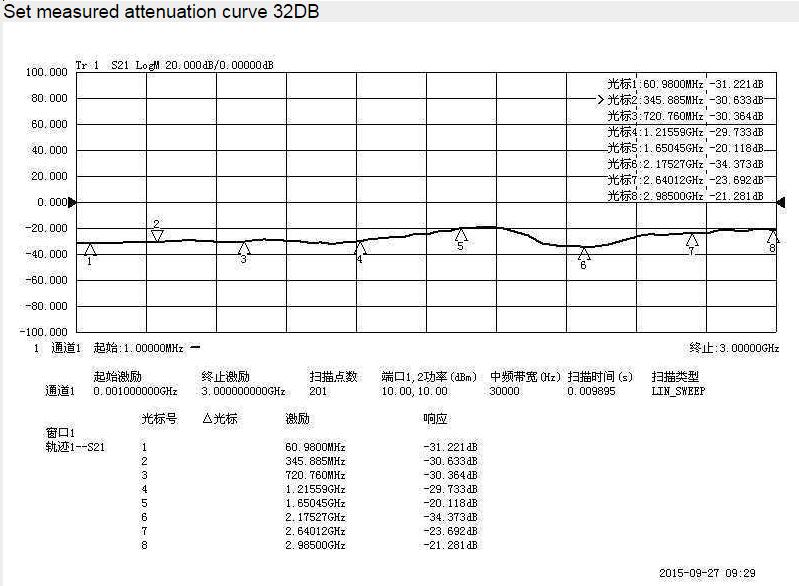

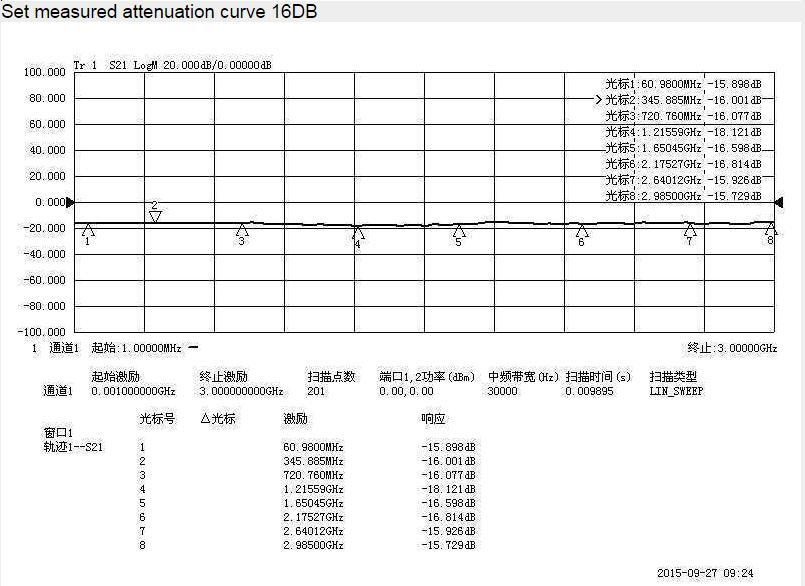

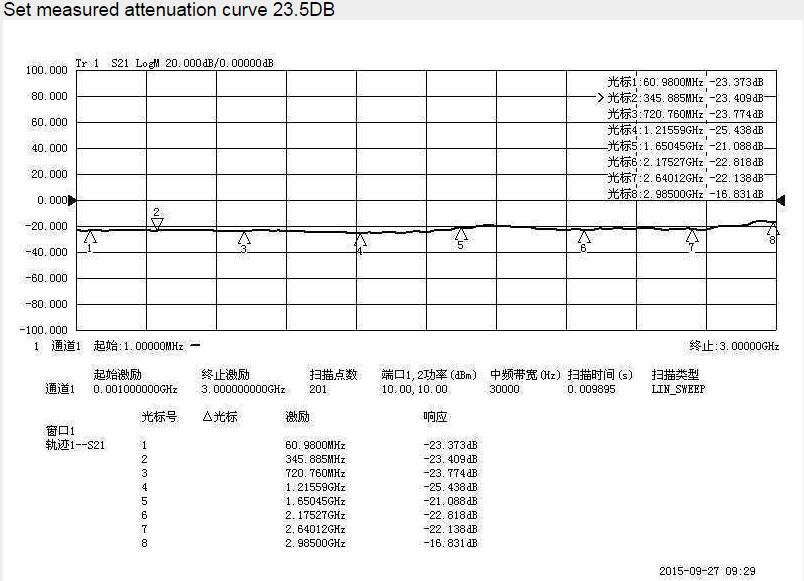

4, Bandwidth: 1MHz to 4GHz (attenuation values at different frequencies vary, please refer to S21 curve indicators)
5, shielded with a metal shell
6, to provide test program and a PDF schematic

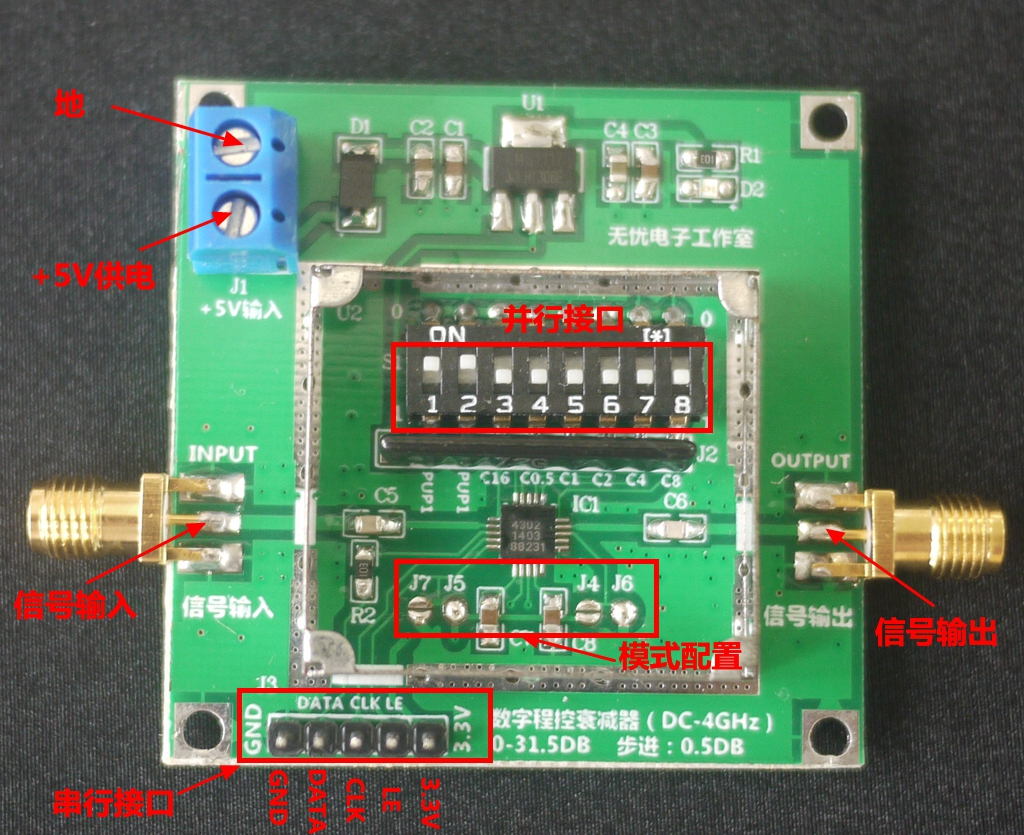

Different mode configuration:
1, the serial mode configuration: Disconnect J5 J7 J6 shorted J4
Three-wire serial mode, pins are: GND DATA CLK LE 3.3V

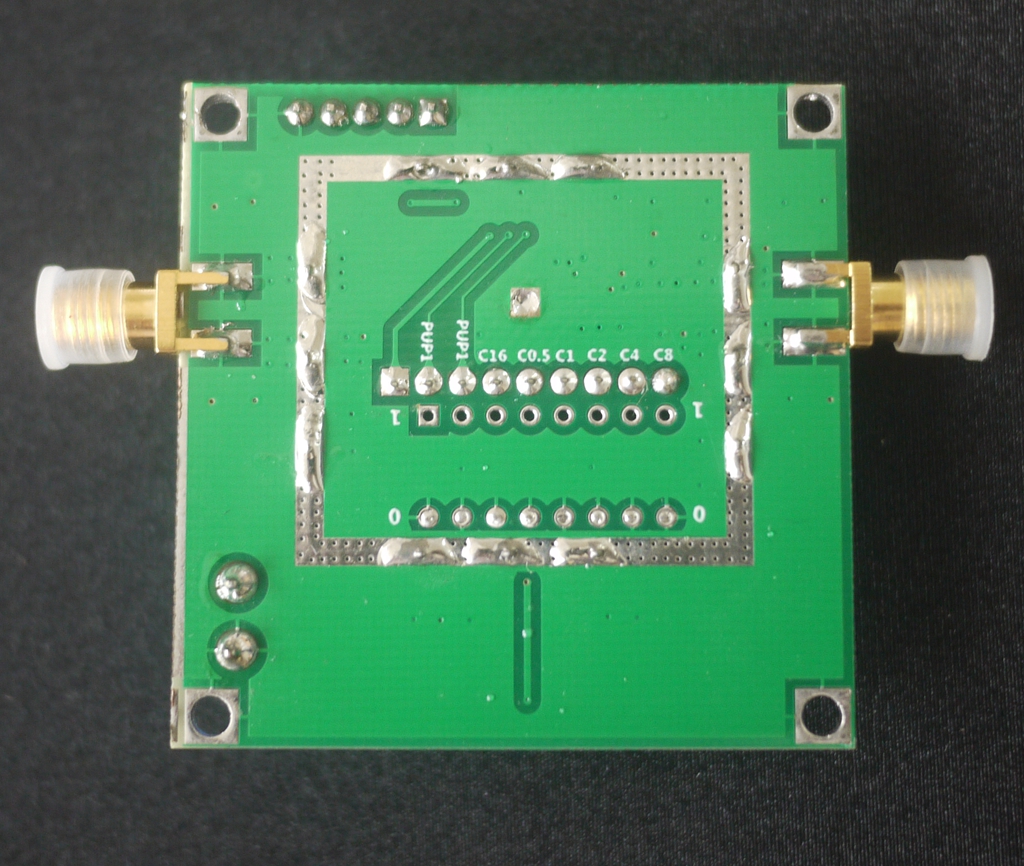

2, parallel C0.5-C16 control mode configuration: Disconnect J4 J7 shorted J5 J6
3, parallel PUP control mode configuration: Disconnect J4 J5 shorted J7 J6
PE4302 is a high linearity, 6 digital RF step attenuator, "DSA" in 0.5 dB steps to 31.5 dB attenuation range. Frequency range from DC - 4000MHz achieve attenuation. This 50 ohm RF DSA provides parallel and serial CMOS control interface running on a single 3V supply, and maintain a high attenuation accuracy of frequency and temperature. It also has a unique control interface, allowing the user to select the initial power-up state of decay. Shielding shell and anti-reverse protection diode.
Technical Specifications:
1, power supply voltage: 5V DC (typical current 5mA)
2, programmable gain attenuation range: 0 to 31.5DB stepping 0.5DB Input Output Impedance: 50 Ohm
3, the module supports parallel and serial mode and power mode, select
4, Bandwidth: 1MHz to 4GHz (attenuation values at different frequencies vary, please refer to S21 curve indicators)
5, shielded with a metal shell
6, to provide test program and a PDF schematic
Different mode configuration:
1, the serial mode configuration: Disconnect J5 J7 J6 shorted J4
Three-wire serial mode, pins are: GND DATA CLK LE 3.3V
2, parallel C0.5-C16 control mode configuration: Disconnect J4 J7 shorted J5 J6
3, parallel PUP control mode configuration: Disconnect J4 J5 shorted J7 J6
Package include:
1 x New PE4302 Digital RF Attenuator Module High Linearity 0.5dB Step 1MHz-4GHz
