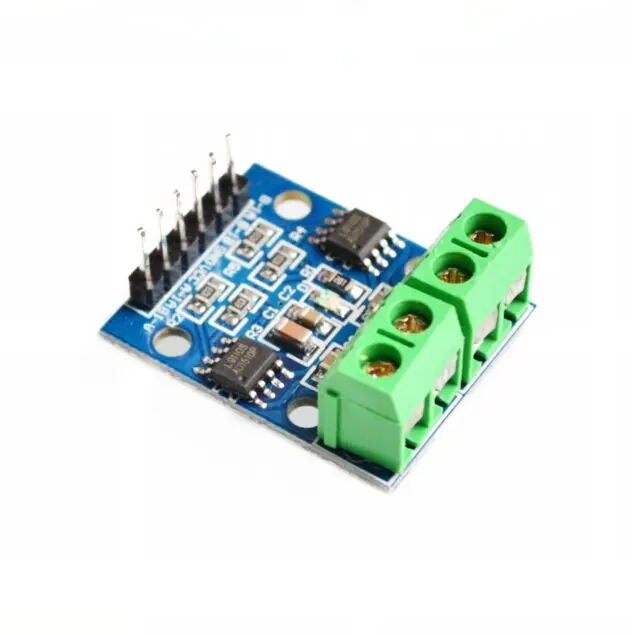

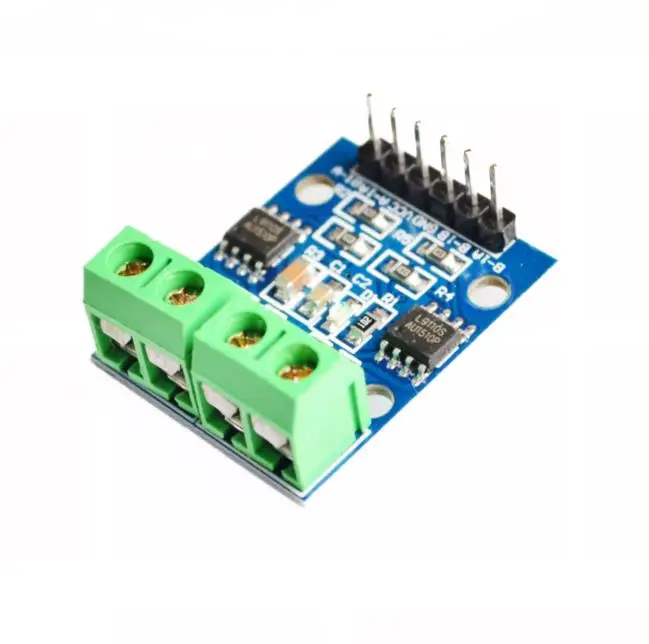

L9110S H-bridge Dual DC Stepper Motor Driver Controller Board Module L9110
On board two the L9110S motor control chip, the module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor. The module input voltage range is:2.5-12V, and the 800mA continuous current output capability per channel.
- Low static work current
- Power supply voltage: DC2.5-12V
- Each channel has 800mA continuous current output
- Low saturation pressure drop
- TTL/CMOS output level compatible, can be connected directly to the CPU
- Output built-in clamping diode, apply to the perceptual load
- Control and drive integrate in IC
- Have pin high pressure protection function
- Working temperature: 0-80 °
- Size:29.2(mm)x23(mm)
- 1pc x L9110S DC Stepper Motor Driver Board
