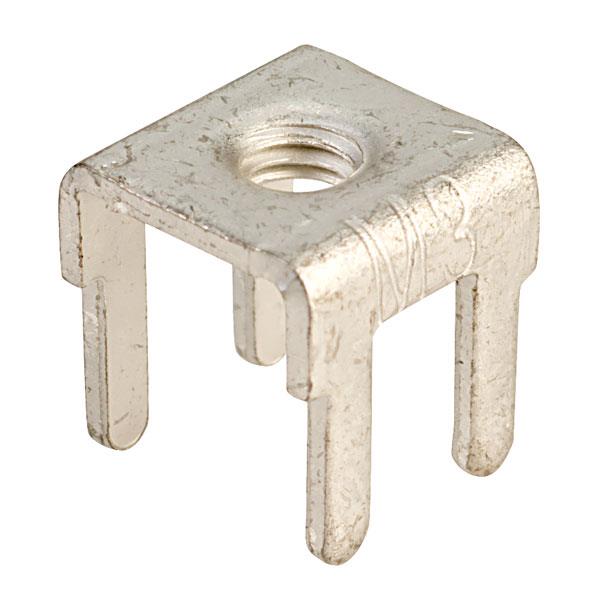

RS Pro Solder Tab Terminal, Uninsulated, Tin Plated, 7.9 x 6.4mm
- BMUK Part # :-534-834
- BrandRS Pro
- You will get a pack of 100 Solder Tab Terminals
Product Details
RS PCB to Wire Terminal Tab Adapters
A range of PCB tab adapters that allow connection between wire terminals and PCB board via female receptacles. These PCB tab or PCB blade adapters have a 6.3 or 6.4mm tab size and are tin plated.
Stock number 534-929 has a 45° angle and an M5 fixing hole.
For use in making connection to printed circuit boards via 6·3mm push-on receptacles, stock no. 488-1235. Terminal material - hot tin dipped brass.Fixing hole for 45° blade M5.
For vertical and horizontal blades, fixing holes 1·5 mm dia. F.C. 5·08.Horizontal type only: first hole to be 5·5 mm from edge of board
'F' Style Terminals
A range of Push-On Terminals (F-Style) available in cable and PCB mount versions, with a selection of insulating covers available separately.
Specifications
| Tab Size | 7.9 x 6.4mm | |
| Insulation | Uninsulated | |
| Overall Length | 16.5mm | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Colour | Grey | |
| Number of Tabs | 1 | |
| Tab Thickness | 0.8mm | |
| Tab Width | 6.4mm |
