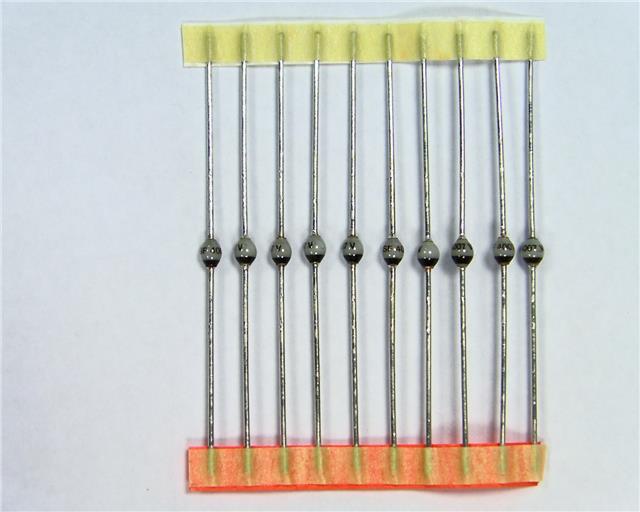

Vishay SF4007 Ultrafast Recovery Diode, SOD-57

BMUK Part # :-748-1002
BrandVishay
Mfr. Part No.SF400
You will get 10 Diodes supplied loose

Product Details

Ultrafast Recovery Rectifiers 1A, Vishay Semiconductor

Vishay ultrafast recovery rectifiers have very fast reverse recovery times as low as 15ns and voltage levels as high as 1500V. Typical applications include very high frequency switched mode power supplies (SMPS), inverters, and freewheeling diodes.

Diodes and Rectifiers, Vishay Semiconductors

Specifications

	Number of Elements per Chip	1
	Mounting Type	Through Hole
	Package Type	SOD-57
	Pin Count	2
	Length	3.6mm
	Diameter	4mm
	Maximum Operating Temperature	+175 °C
	Minimum Operating Temperature	-55 °C
	Dimensions	4 (Dia.) x 3.6mm

For a Specification PDF Please CLICK HERE

Thank you for looking, if you have any questions please ask or call us.

Please see our other items for a wide range of Electronic components.

TE Connectivity Black Heat Shrink Tubing, 9.5mm, 2:1, 10m Length

BMUK Part # :-219-6513
BrandTE Connectivity
Mfr. Part No.DR-25-3/8-0-10

Product Details

DR-25 Heat shrink Tubing (Shrink Ratio 2:1)

Robust and flexible heat shrink tubing. It protects wires and cables against damage from chemicals, abrasion, and fluids. The tubing is ideal for use in high temperature environments as it has been specially designed for long term heat resistance and is flame retardant.

Features and Benefits
• Offers excellent protection and insulation
• Provides strain relief
• Performs well under long-term heat exposure
• The tubing is printed with the product description and size
• Shrink ratio of 2:1
• Use with System 25 range products for a complete cable harness system

Standards

VG95343 Part 5 Type D, VDE 0341/Pt 9005, AMS-DTL-23053/16, BS36-198 Part 3 10A.

https://uk.rs-online.com/largeimages/L244079-01.gif

https://uk.rs-online.com/largeimages/LD219648-01.gif

https://uk.rs-online.com/largeimages/LF219648-10.gif

https://uk.rs-online.com/largeimages/LI219648-10.gif

High Temperature

Add product to Compare

Specifications

Not what you’re looking for? Select the attributes you require, then click the button below

	Sleeve Diameter	9.5mm
	Shrunk Diameter	4.8mm
	Colour	Black
	Sleeve Type	Heat Shrink
	Shrink Ratio	2:1
	Sleeve Length	10m
	Material	Elastomer
	Minimum Operating Temperature	-75°C
	Maximum Operating Temperature	+150°C
	Dielectric Strength	8kV/mm

Microchip MCP7940M-I/SN Real Time Clock — Calendar, NV SRAM, 64B RAM 8-Pin SOIC

BMUK Part # :-761-7627
BrandMicrochip
Mfr. Part No.MCP7940M-I/SN

Product Details

MCP7940M I²C Real-Time Clock/Calendars

The Microchip MCP7940M is Real-Time Clock Calendar (RTCC) that supports I²C communications. The MCP7940M includes a digital trimming circuit for accuracy which can compensate for crystal tolerance and temperature.

The MCP7940M features a multi-functional output that can be configured as an alarm output, to output a selectable frequency square wave or as a general purpose output.

Features

2-Wire Serial Interface, I²C™ Compatible: I²C clock rate up to 400 kHz
On-Chip Digital Trimming/Calibration: ±1 ppm resolution, ±129 ppm range
Tracks Hours, Minutes, Seconds, Day of Week, Day, Month and Year
Leap Year Compensated to 2399
12/24 Hour Modes
Oscillator for 32.768 kHz Crystals: Optimised for 6-9 pF crystals
Dual Programmable Alarms
Versatile Output Pin
Wide Operating Voltage Range: 1.8V to 5.5V
Low Typical Timekeeping Current: 1.2μA at 3.3V

Real Time Clock Peripherals - Microchip

Add product to Compare

Specifications

Not what you’re looking for? Select the attributes you require, then click the button below

	Functions	Calendar, NV SRAM
	Date Format	DW:DM:M:Y
	Time Format	HH:MM:SS
	User RAM	64B
	Bus Type	Serial-I2C
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	8
	Dimensions	4.9 x 3.9 x 1.25mm
	Length	4.9mm
	Width	3.9mm
	Height	1.25mm
	Maximum Operating Supply Voltage	5.5 V
	Minimum Operating Supply Voltage	1.8 V
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-40 °C
