Comfort from the ground up

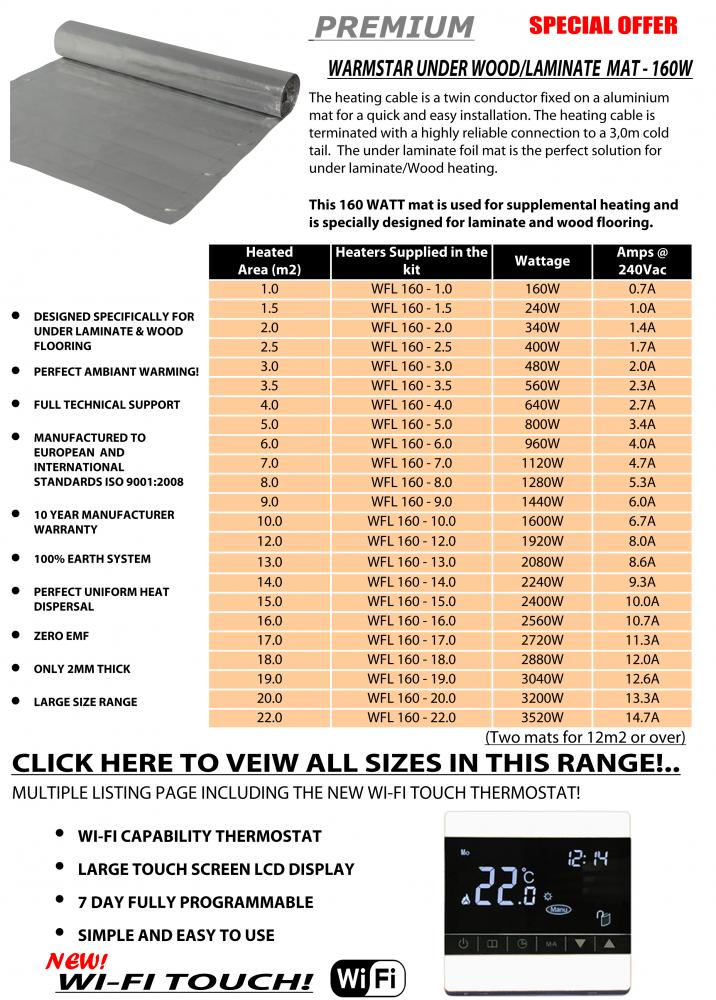

Warm Style 160W per m2 electric foil underfloor heating provides a practical low-profile heating solution for suitable floating floor installations. Select the system size and control option required from the live eBay variation.

The complete system is supplied according to the option selected from the live eBay variation. Please check the exact variation before ordering, as system contents can differ by size and thermostat selection.

Measure the clear floor area to be heated and select a system size that suits the available installation area. Do not heat beneath fixed furniture or areas where heat can become trapped.

Always check the live eBay variation for the current size options, availability and exact product configuration before ordering.

Select from the thermostat options shown in the live eBay variation. Where a thermostat is not included or a different control option is selected, the supplied configuration will follow the variation purchased.

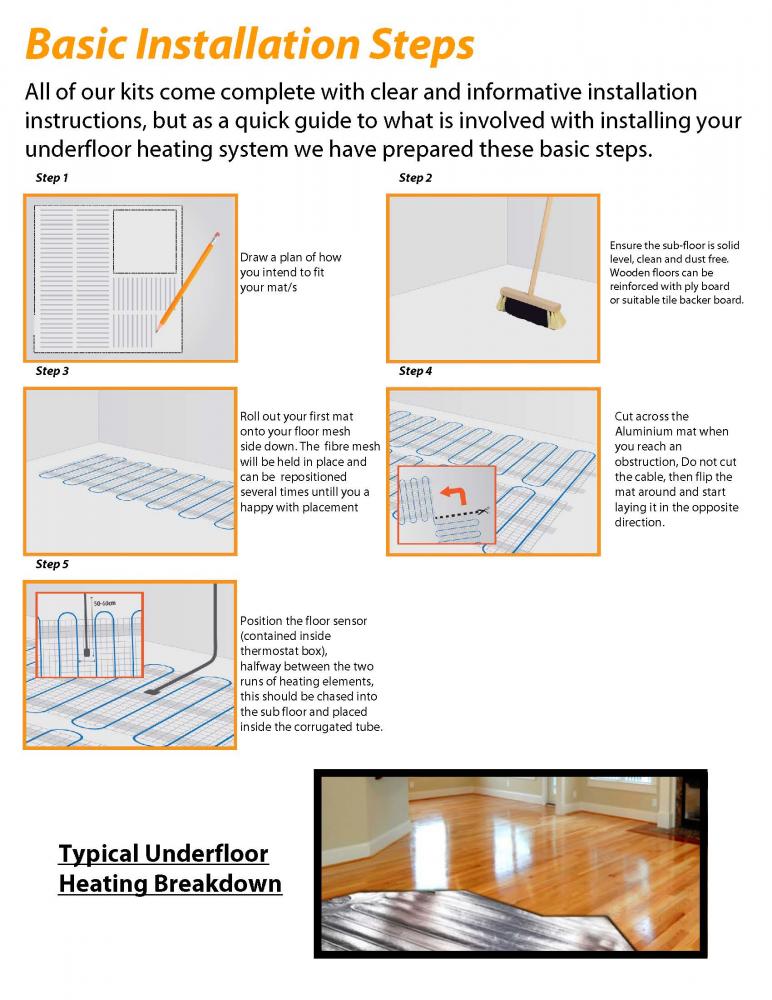

1. Confirm the clear heated floor area and selected system size.
2. Prepare the floor and underfloor insulation in accordance with the heating and floor manufacturer's requirements.
3. Plan and position the foil heating elements without overlapping or folding them.
4. Position the floor sensor in accordance with the thermostat and installation instructions.
5. Complete the required electrical testing before the floor covering is installed.
6. Connect and commission the system in accordance with current electrical requirements and the manufacturer's instructions.

• Use the system only in applications and floor constructions approved for the heating product.
• Do not overlap, fold, cut or damage the heating element unless the manufacturer's instructions specifically permit the action.
• Do not install beneath fixed furniture or in areas where heat may become trapped.
• Complete and record the required electrical resistance and insulation tests during installation.
• The final electrical connection, protection, testing and certification must be completed by a suitably qualified electrician where required by current regulations.
• Do not switch the heating on until the floor installation has reached the curing or commissioning stage specified by the relevant manufacturers.

Please rely on the live eBay item specifics and the selected variation for the exact configuration supplied.

Send your clear floor dimensions through eBay Messages before ordering. We can help you check the coverage requirement and the thermostat option shown in the current listing.
