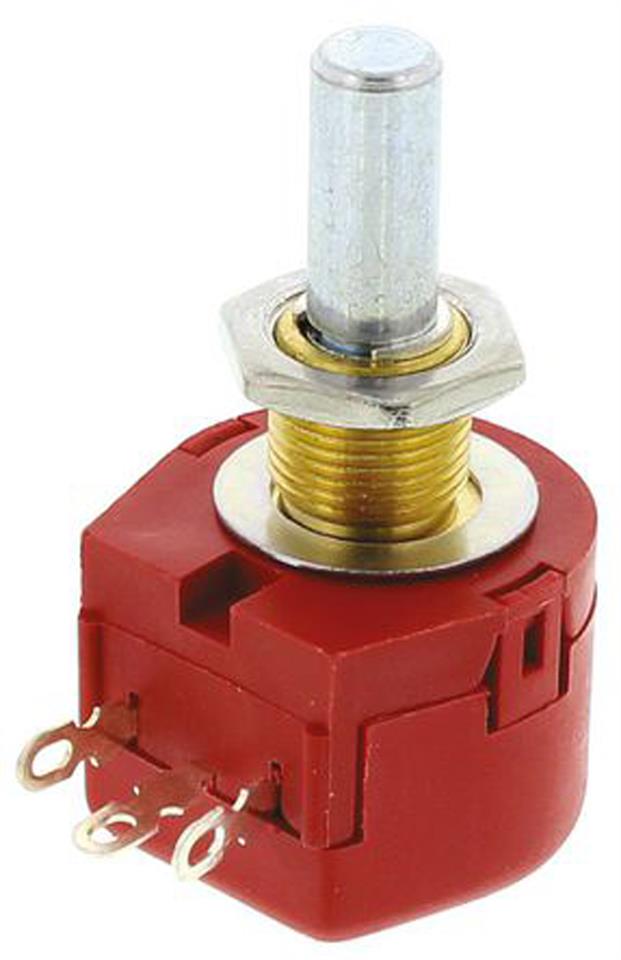

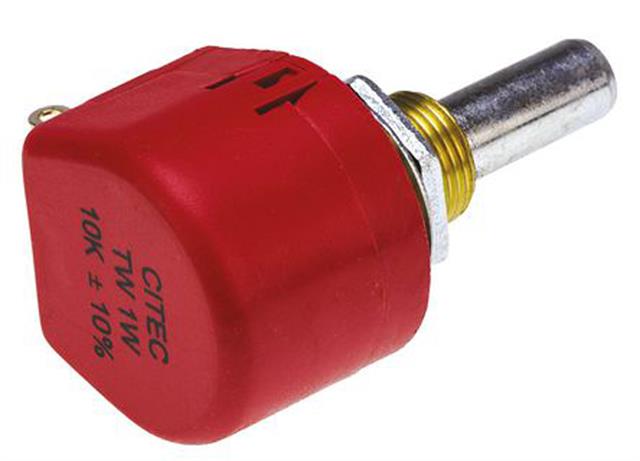

TE Connectivity Wirewound Potentiometer TW Series with a 6.35 mm Dia. Shaft 10kΩ ±10% 1W ±100ppm/°C, Panel Mount
- BMUK Part # :-502-8637
- BrandTE Connectivity
- Mfr. Part No.TW1103KA
Product Details
23mm TW Series Potentiometers
A comprehensive range of potentiometers from TE Connectivity, TW series linear panel mount potentiometers available in 10 Ohm to 25 K Ohms versions with 1-W power handling, and 10% tolerance. These durable potentiometers have a life cycle of 10,000 operations and are suitable for industrial control, and other high-power applications.
Features
Wirewound elementPlain shaft 6.35-mm diameter
Wide range available 10 Ohm to 25 K Ohms resistance
One turn, with 10% tolerance
1-W power rating
Shaft torque 3.5 – 100 mNm
Solder eyelet termination
Supplied with metal lock washer and nut
| Linearity error | 2% max. |
| Electrical Rotation | 265°±5° |
| Temperature Co-efficient | 100ppm/°C |
| Terminal resistance | 2Ω |
| Dimensions, Body | Ø22.6mm, L17.5mm |
| Shaft | Ø6.35mm, L14.0mm |
| Mounting bush | M10x0.75, L 10.0mm |
Wirewound
Specifications
| Maximum Resistance | 10kΩ | |
| Number of Turns | 1 | |
| Potentiometer Type | Linear | |
| Mounting Type | Panel Mount | |
| Shaft Diameter | 6.35 mm | |
| Mounting Hole Diameter | 10mm | |
| Power Rating | 1W | |
| Termination Style | Solder Lug | |
| Tolerance | ±10% | |
| Series | TW | |
| Length | 42.5mm | |
| Depth | 22.6mm | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
| Temperature Coefficient | ±100ppm/°C |
For a Specification PDF Please CLICK HERE
