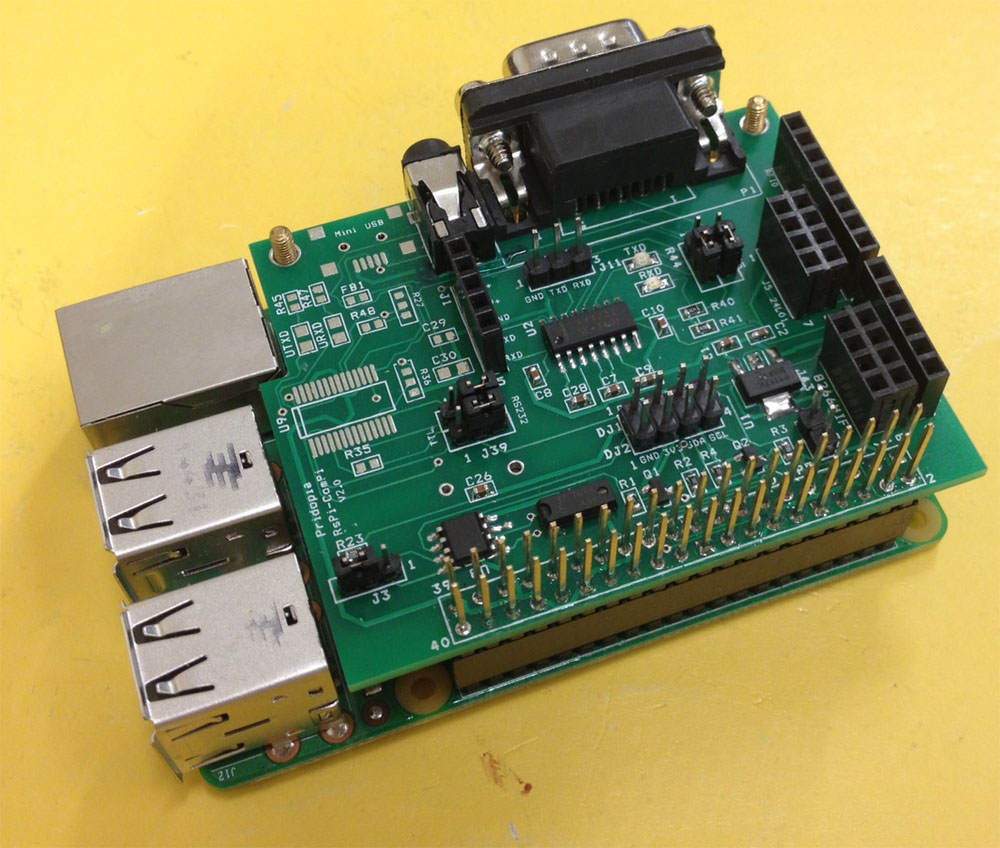

Raspberry Pi - RS232 COM & Serial console & BlueTooth console Board
1. provide DB9 male COM port
2. provide i2c DS1307 RTC with CR1220 bauk-up battery
3. provide RFID socket ( SPI signal) / NRF24L01 socket (SPI signal)
you can choose use RFID or NRF24L01 ( both use SPI signal)
4. Provide 2 extra i2c device input port, one for 3.3V, one for 5V (with Logic Level converter)
5. provide 3.3V power Regulator for 3.3V device ( RFID/ NRF24L01) i2c device
6. provide 3.5mm serial console cable socket,
7. provide jumper setting can change 3.5mm output TX, RX position.
8 HC-05 Bluetooth module
(1) Pi Setting for standard RS232 COM port function
setting detail
you will see raspberry pi boot from Android Tablet screen

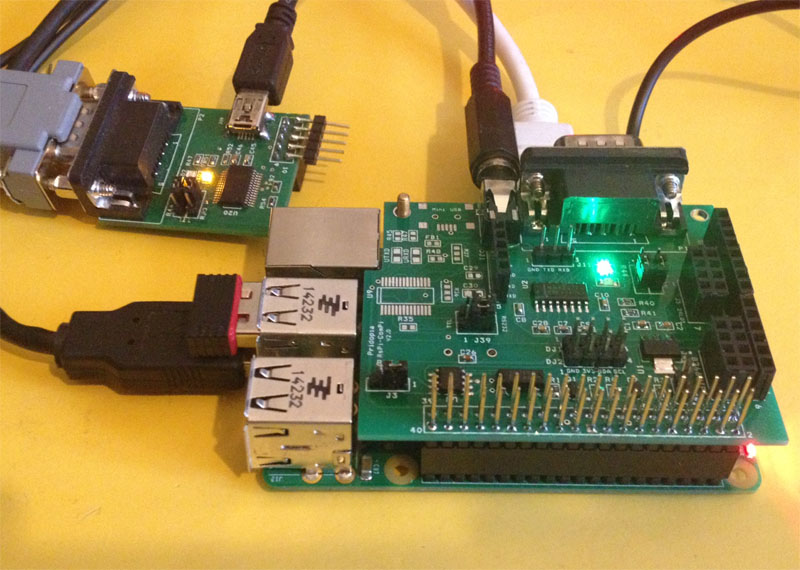

(3)3.5mm serial console port
Package Content
1x Rs-Pi RTC- RS232 COM - Serial console Board
1x Bluetooth 2.0 module
1x 150cm Female DB9 to 3.5mm Audio serial cable
CR1220 battery for RTC not include
1x Manual
Raspberry Pi® is a trademark of the Raspberry Pi Foundation
