All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application

For Chevrolet Small block（2.100" rod journal）
For Chevrolet - LS-Series V8 engine
Note：The Center to Center length of this connecting rods is 155.58mm/6.125".  Available in 5.7" or 6.0" lengths.

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

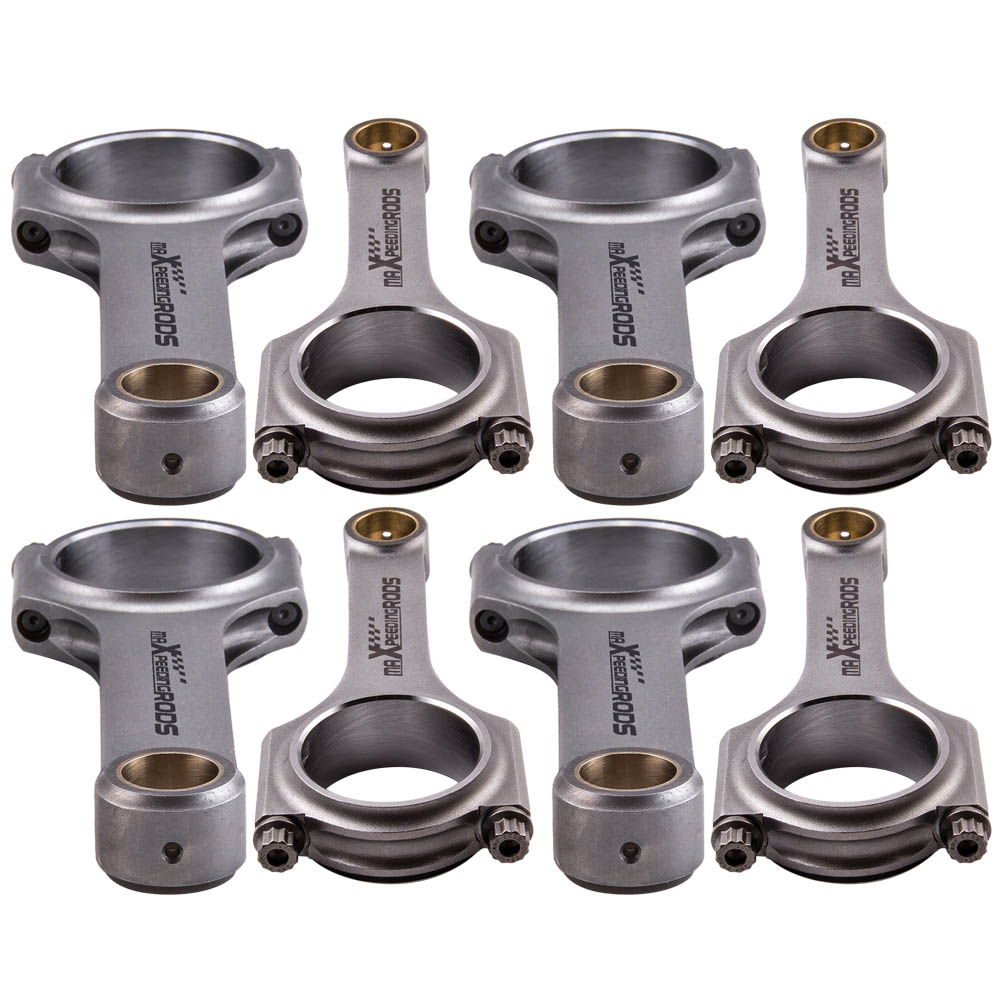

*H-beam Conrods Quantity: 8 Pieces as showing in picture
*Bolts: Including ARP 8740 7/16" bolts
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*24CM*14CM

Dimensions

Center to center length:155.58mm/6.125"
Big end diameter:56.515mm/2.225"
Small end diameter:23.55mm/0.927"
Big end width:23.9mm/0.941"
Small end width:25.65mm/1.01"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 8740 16pcs bolts ；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
