All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application:

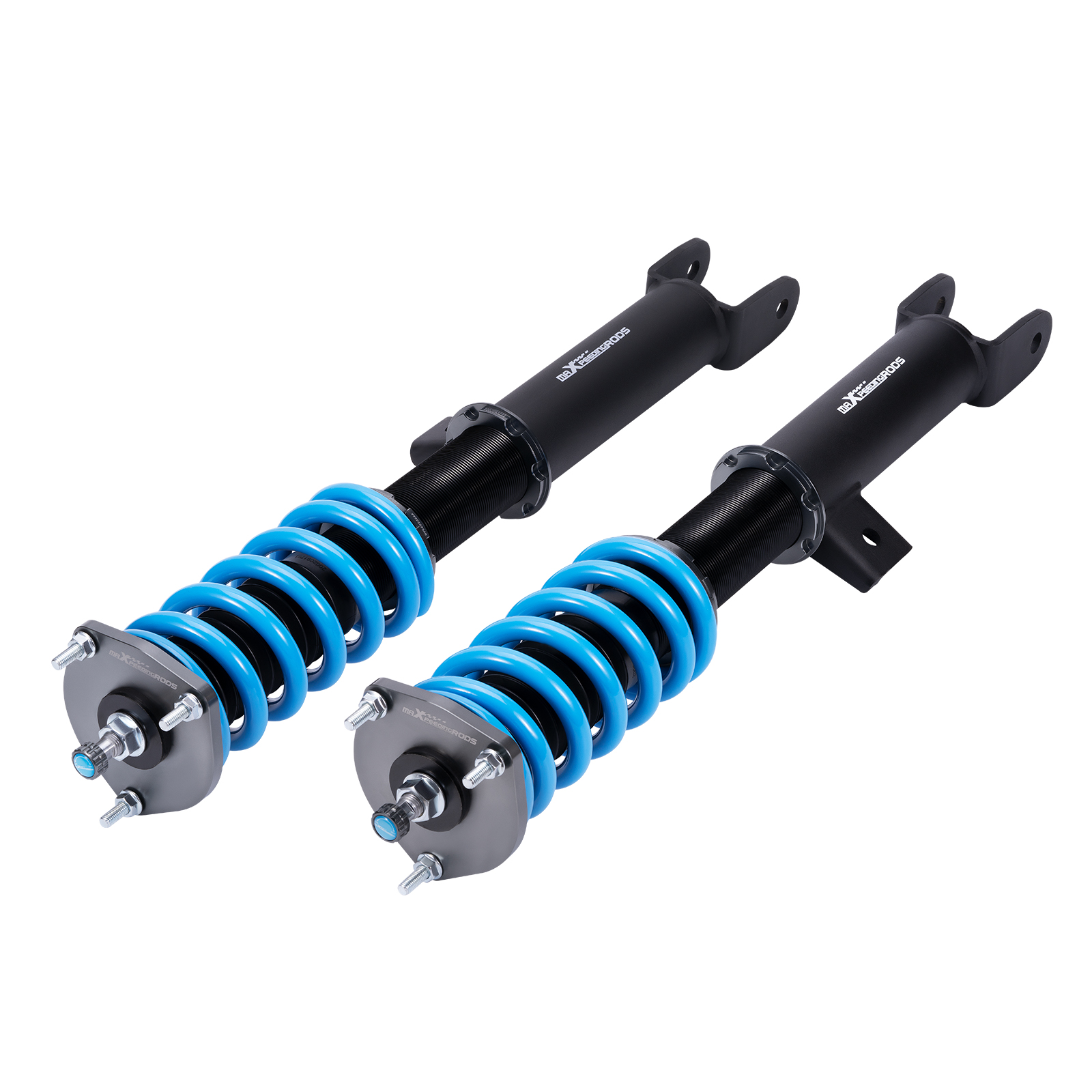

For Tesla Model 3 RWD 2017-2023 c / Standard Range Plus)

Specification:

Lowering height (compare with OE height) front: 0-60mm

Lowering height (compare with OE height) rear: 0-60mm

Damping adjustable: Available, 24 levels of rebound damping force

Shock structure type: twin -tube

Spring Rate Front: 10 kg/mm(560lbs/in)

Spring Rate Rear: 10 kg/mm(560lbs/in)

Spring length Front: 200 mm

Spring length Rear: 220 mm

Front spring inner diameter:70.5 mm

Rear spring inner diameter:100 mm


Features:

1. Lowered height adjustment from 0-30mm (depends on vehicle models) which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

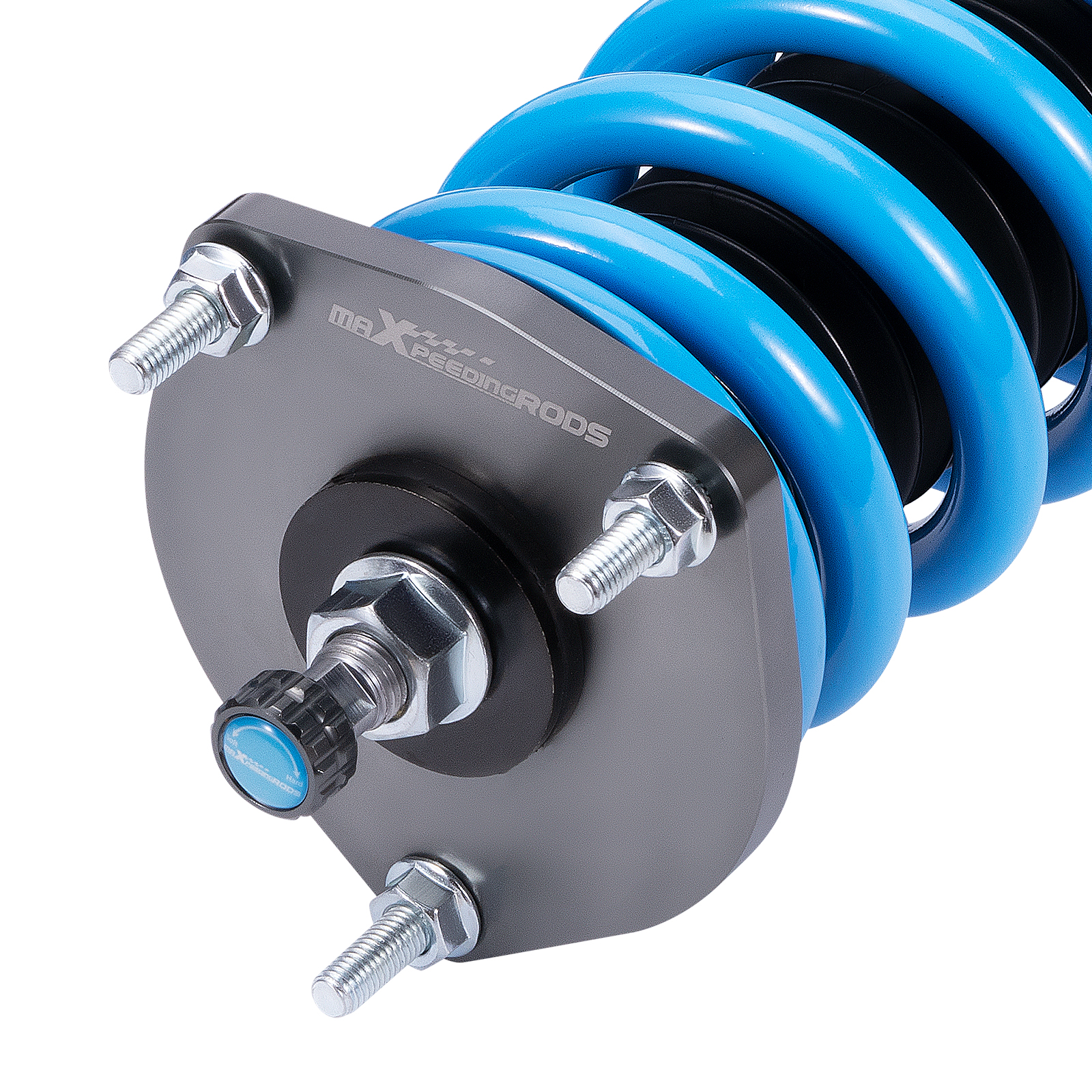

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.(for some models)
4. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
7. Upgraded spring --- more than 600,000 times continuously test to assure it's high tensile strength.

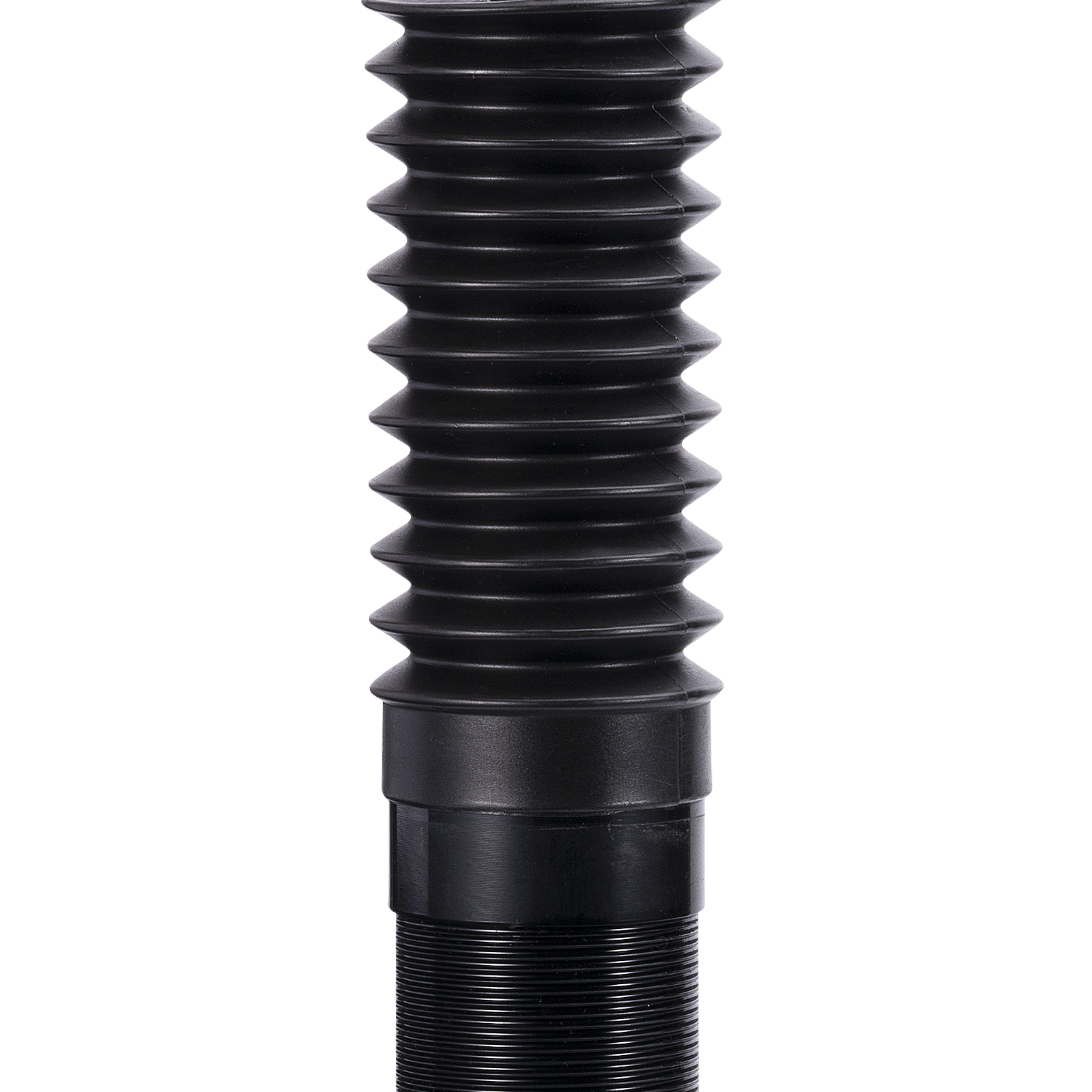

8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
9. With better damping setting,you will get better performance and comfort at the same time.
10. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
11. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
12. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
13. Clean room assembled---maintain higher level of accuracy and reliability.
14. Upgraded damper oil---make damping more stable and smooth in wide temperature range.

Notice

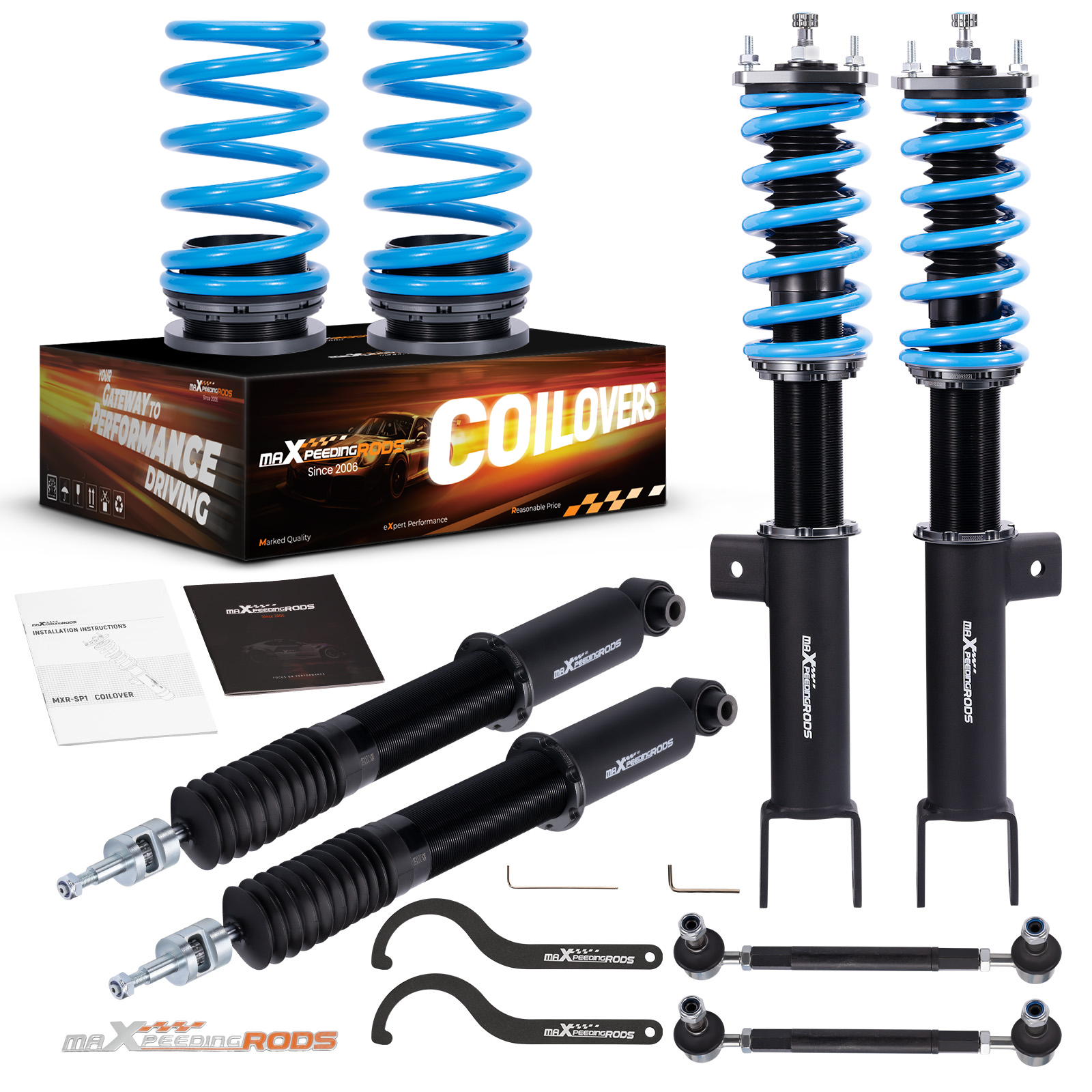

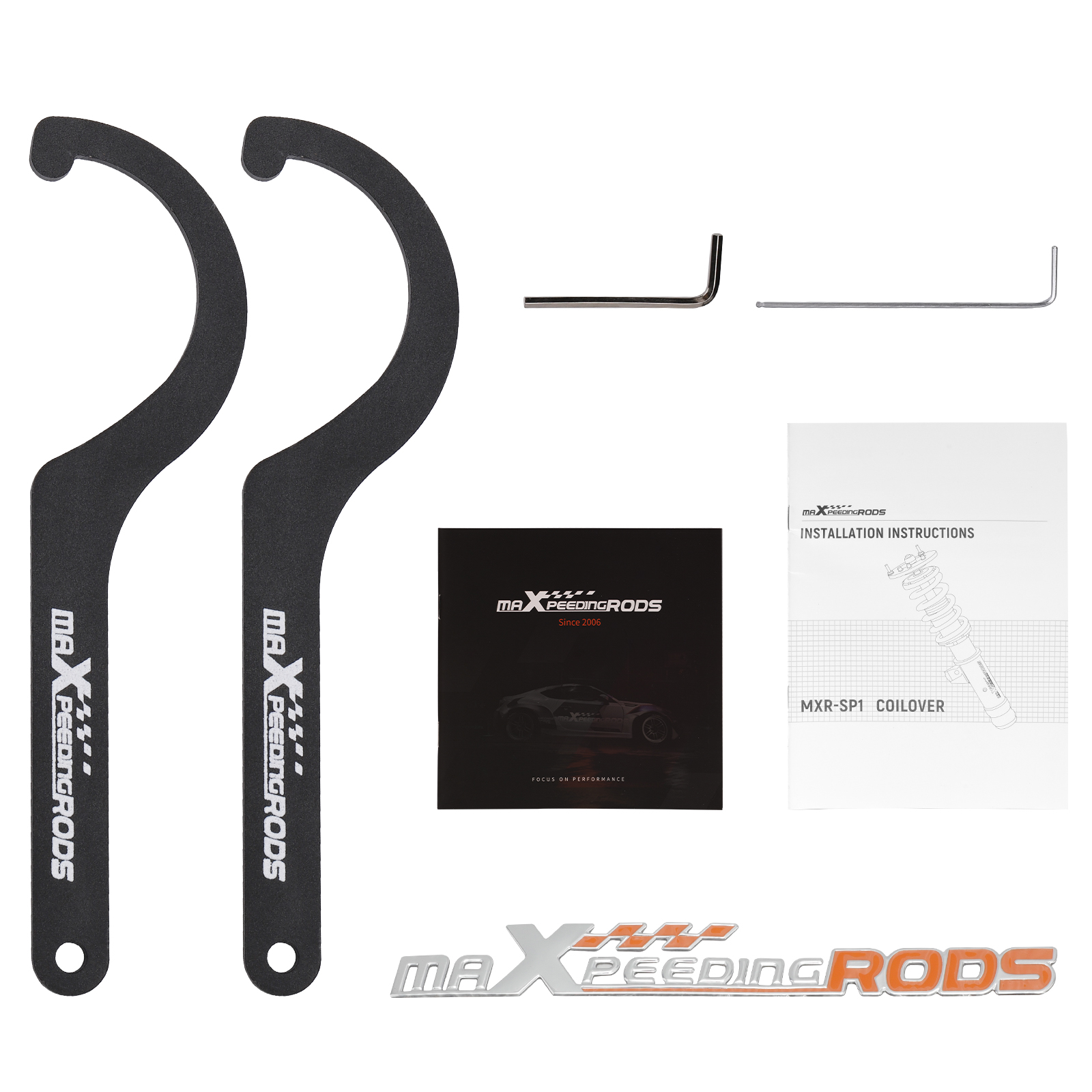

* Instruction Included. Professional installation & alignment suggested.
