Automatic Dual Swing Gate Opener 900KG Heavy Duty Solar Ready WiFi App 24V






📌Product Description

Upgrade your driveway or farm access with this Heavy-Duty 24V Dual Swing Gate Opener. Designed to handle gates up to 900kg (450kg per arm) and spans up to 7m (3.5m per leaf), this system is the ultimate solution for rural farm gates, residential villas, and commercial properties.

Equipped with cutting-edge Smart App (WiFi & Bluetooth) control, Solar-Ready capabilities, and an ultra-reliable Soft Start/Stop mechanism, this automatic gate operator delivers effortless convenience, enhanced security, and whisper-quiet performance in all weather conditions.



🌟 Key Highlights & Core Advantages

  • 📱 Smart WiFi & Bluetooth Phone App Control:
    Adjust motor parameters, travel limits, and operational settings directly from your smartphone—no need to open the control box!

  • 💪 Massive 900KG Dual Gate Capacity:
    Handles up to 450KG and 3.5m length per leaf. Perfect for heavy timber, wrought iron, and standard Australian farm gates.

  • ☀️ Solar Ready & 3 Power Supply Modes:
    Run it your way! Compatible with:

    1. 24V Solar Panels (Eco-friendly & off-grid ready)

    2. 24V Battery System (or two 12V batteries wired in series)

    3. Standard Household Mains Power (via 24V AC/DC input)

  • 🛡️ Soft Start & Soft Stop Function:
    Eliminates sudden jerks when opening or closing, dramatically extending the lifespan of your gate hinges and actuator arms.

  • 🔑 Manual Emergency Release:
    Includes manual release keys to easily operate the gate by hand in case of a power outage.

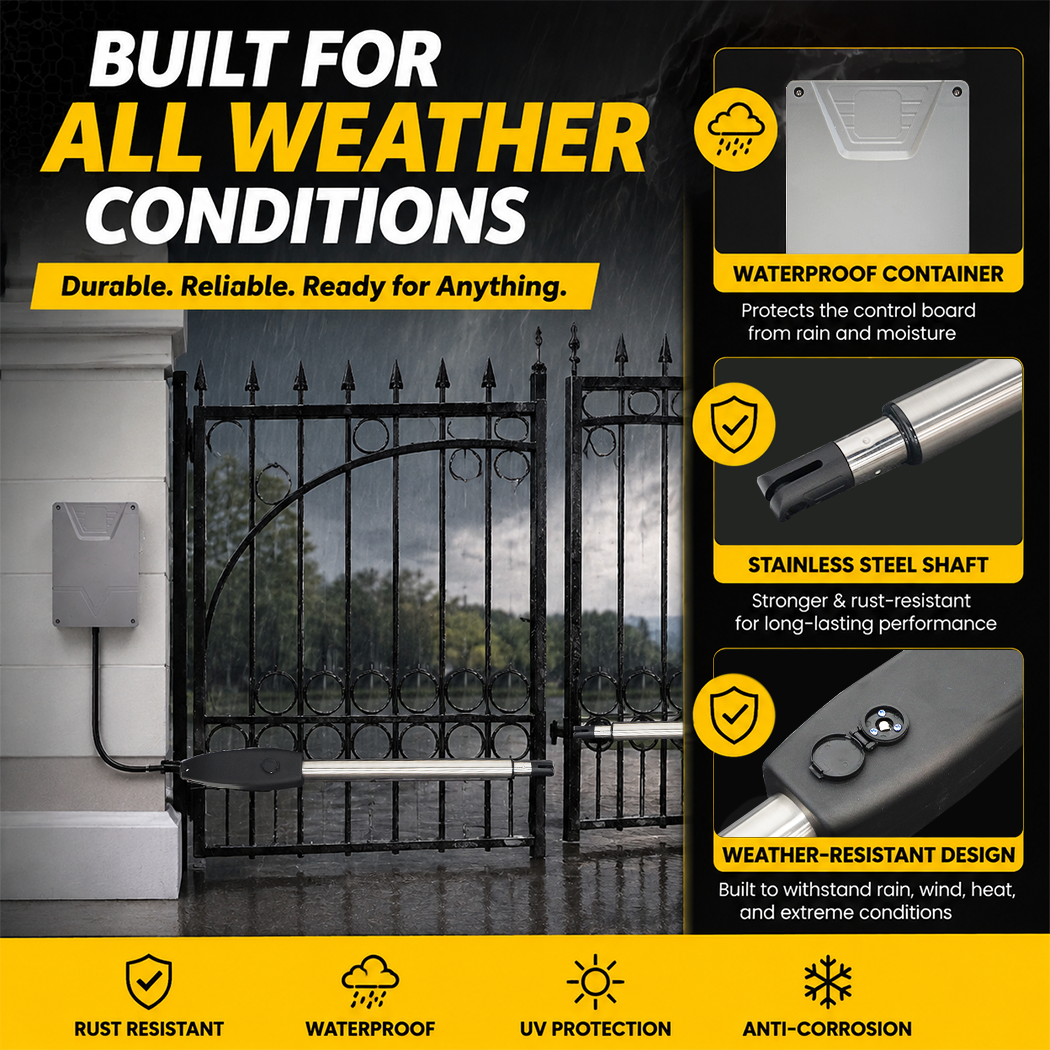

  • 🌧️ All-Weather IP44 Protection:
    Engineered with a weather-resistant control box and corrosion-resistant push rods built to withstand harsh outdoor environments.

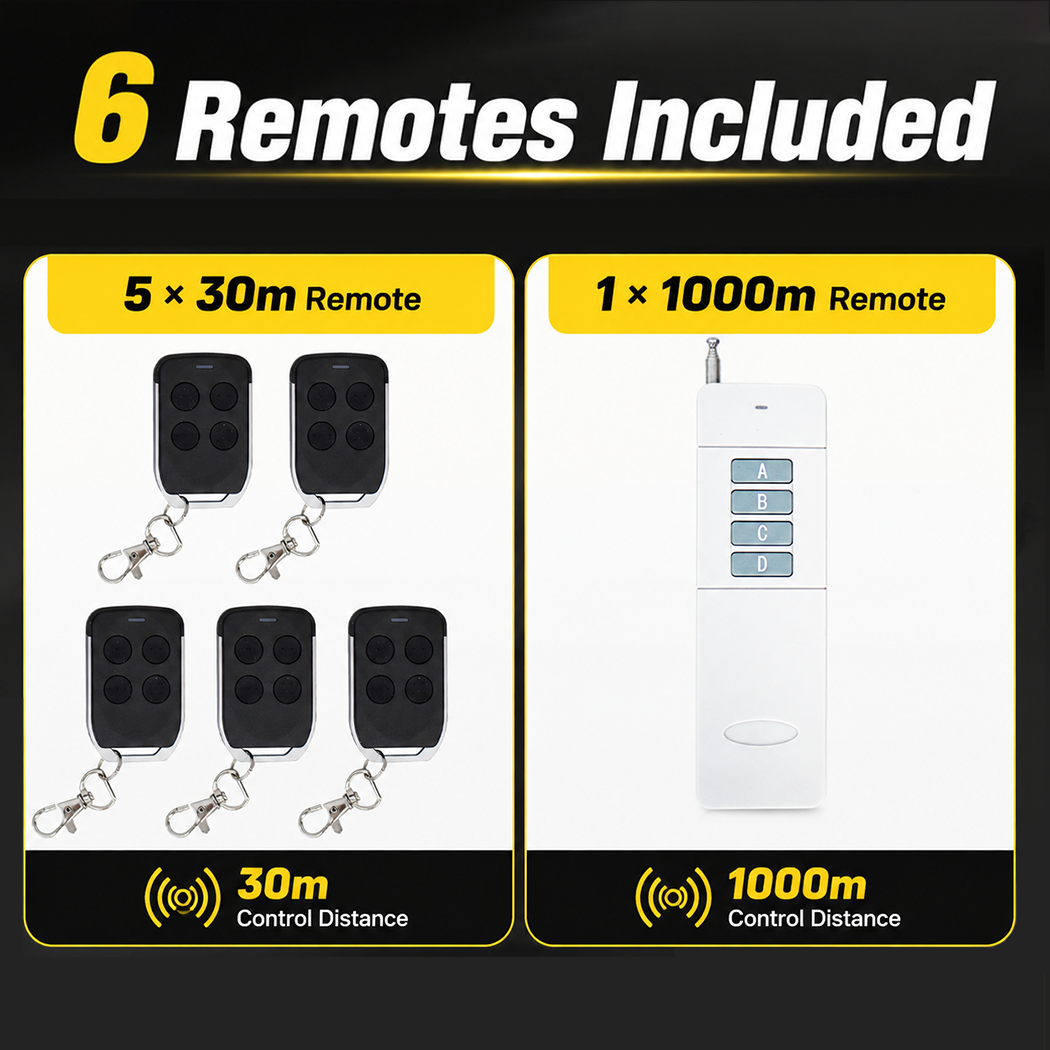

  • 📡 Massive Remote Bundle Included:
    Comes with 5 standard remotes (30m range), 1 extreme long-range remote (up to 1,000m range), and a wireless access keypad!



📋 Specifications


Feature Specification
System Type Dual Swing Gate Opener (Double Arms)
Input Voltage 24V DC / 24V AC
Motor Voltage 24V DC
Motor Power 60W (Per Actuator)
Actuator Speed 24 mm/s
Max Gate Weight 450 kg per leaf (900 kg total)
Max Gate Width 3.5 m per leaf (7.0 m total)
Actuator Length 847 mm (Retracted) – 1247 mm (Extended)
Actuator Stroke 400 mm
Waterproof Rating IP44 Weatherproof
Safety Features Soft Start/Stop, Thermal Overload Protection, Manual Release
Connectivity WiFi & Bluetooth App Control + RF Remotes


⭐ Why Choose This 24V System?

  1. Safe & Solar Compatible: 24V DC systems are safer to install, generate less heat, and provide seamless integration with off-grid solar setups.

  2. App-Driven Convenience: Older models require opening the waterproof box to adjust DIP switches and potentiometers. With this smart system, fine-tune opening delay, auto-close timers, and speed smoothly from your phone.

  3. Thermal Protection: Built-in thermal sensors prevent motor burnout during heavy cycling or hot summer days.

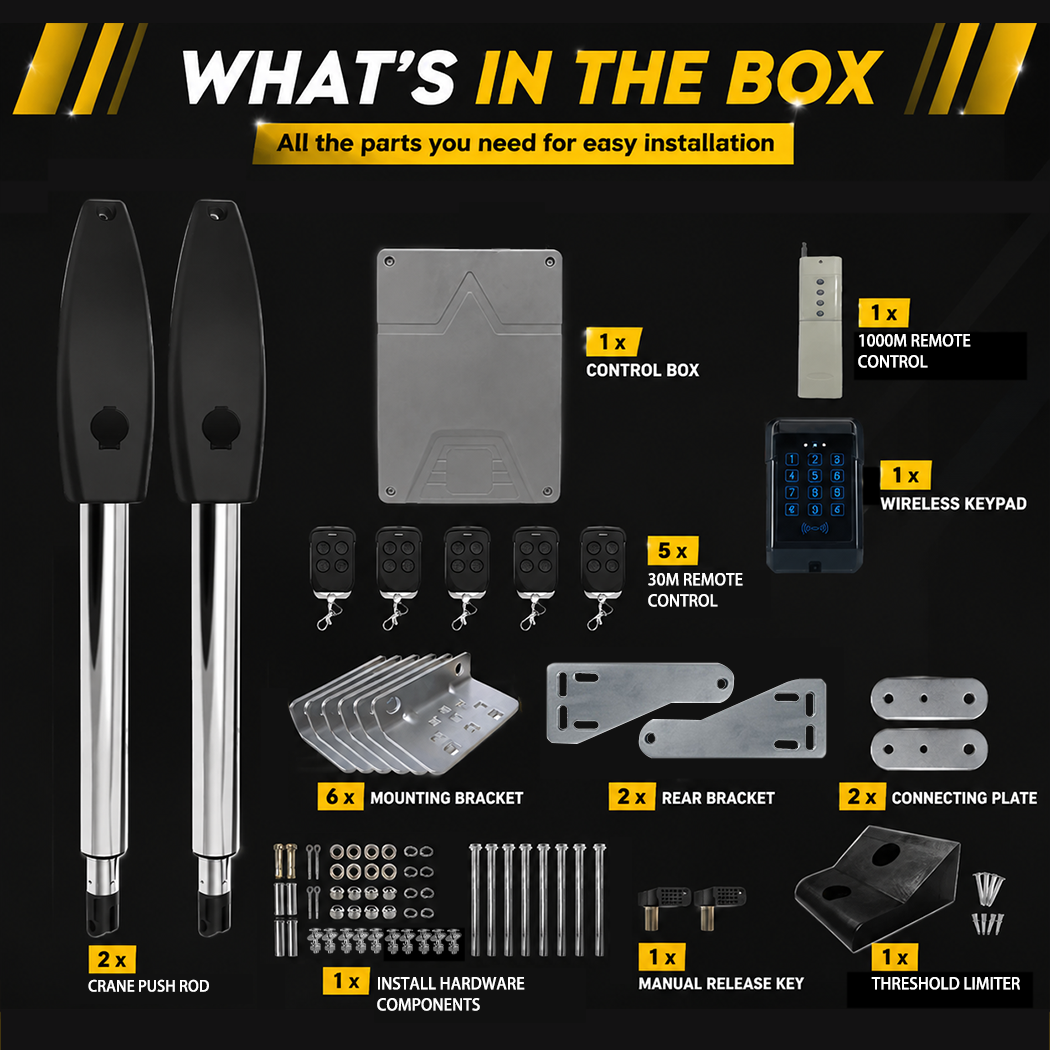

📦 Package Contents

  • 2 x Heavy-Duty Gate Push Rod Actuators (with 1m connection cable)

  • 1 x 2-in-1 Smart Control Box & Battery Enclosure

  • 5 x Standard Remote Controls (30m Range, Batteries Included)

  • 1 x Long-Range Remote Control (Up to 1000m Range, Battery Model: 6F22 9V Carbon Zinc / 1604S – not included)

  • 1 x Wireless Digital Keypad (Battery Included)

  • 1 x Manual Emergency Release Key

  • 1 x Complete Installation Hardware & Bracket Kit

  • 1 x Gate Limit Stopper Device

  • 1 x User Manual

💡 Important Notes & Installation Tips

  • Suitable for both pull-to-open and push-to-open installations (brackets included).

  • Ensure gate hinges swing smoothly and without friction prior to installation for optimal performance.

  • Fast dispatch & comprehensive technical support available!
