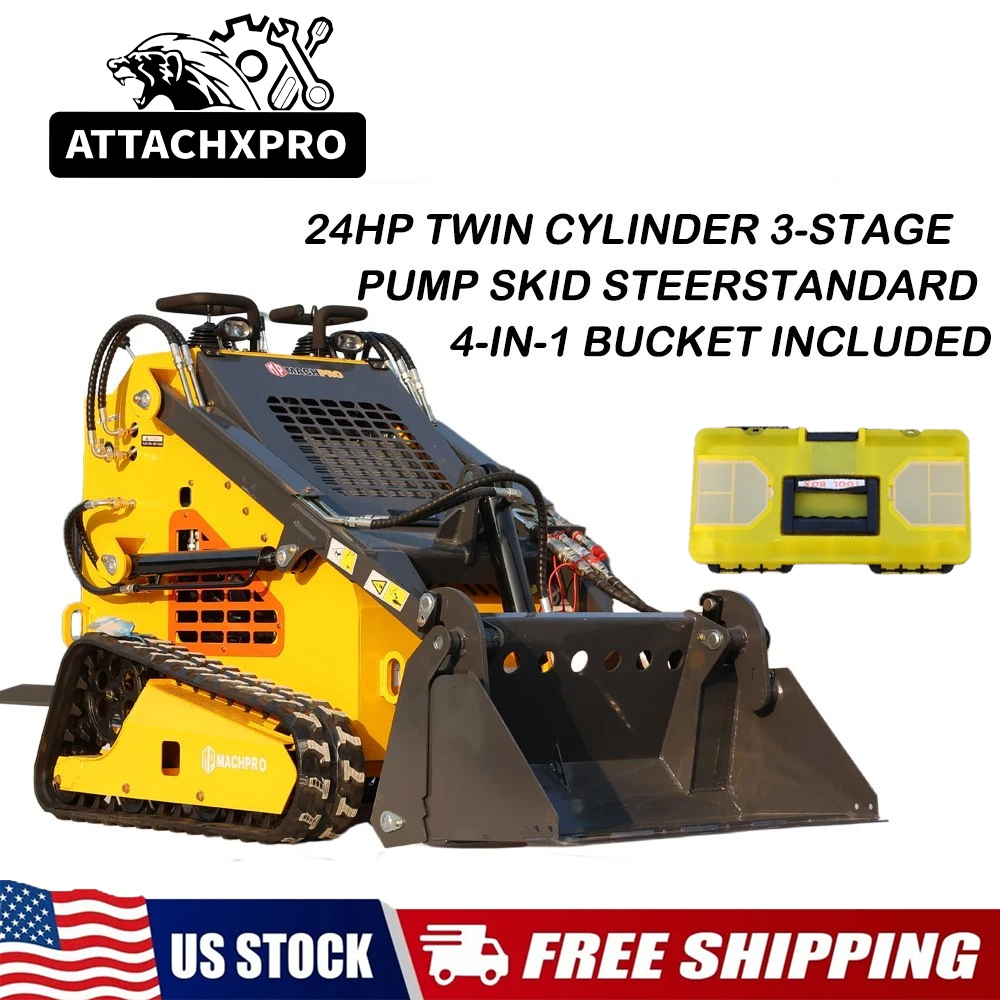

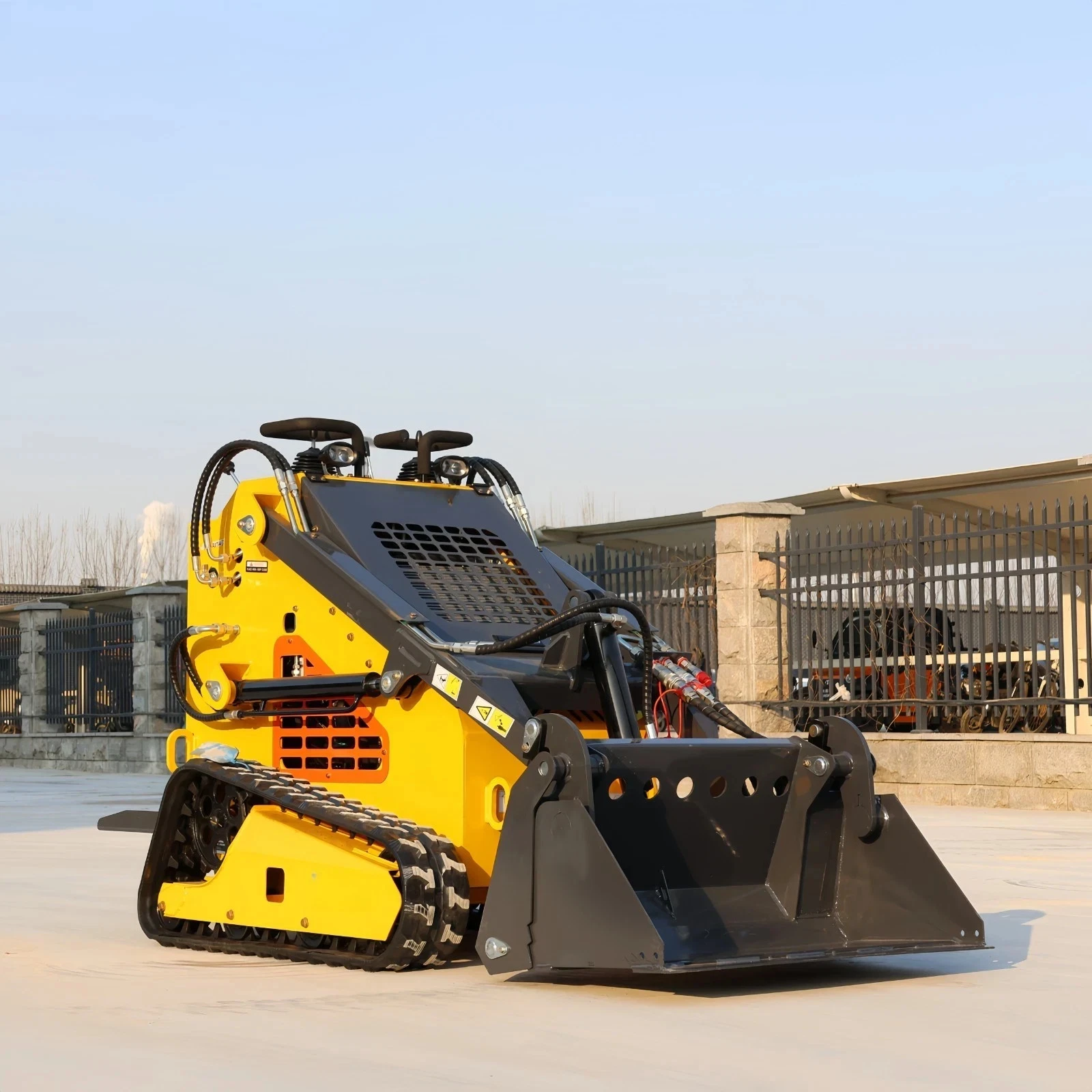

V380 Mini Track Skid Steer Loader 24HP RATO740‑1 Engine
Compact Track Skid Steer Loader 375kg Max Lifting Capacity For Multiple Attachments
📋 Product Introduction
V380 mini tracked skid steer loader is compact‑size multi‑functional construction machine, powered by genuine RATO740‑1 24HP gasoline engine. Adopts tracked propulsion design for excellent cross‑country performance. Matches a wide range of quick‑change attachments for digging, loading, snow removing, site grading and landscaping. New upgraded cooling system greatly improves heat dissipation, keeps stable performance under long‑hour heavy‑duty work. Small body fits narrow‑space operation for farm, backyard, construction sites.
⭐ Main Features
- RATO740‑1 Heavy‑duty Engine: 24HP(16.8kW) high‑power gasoline engine, stable output, reliable power supply

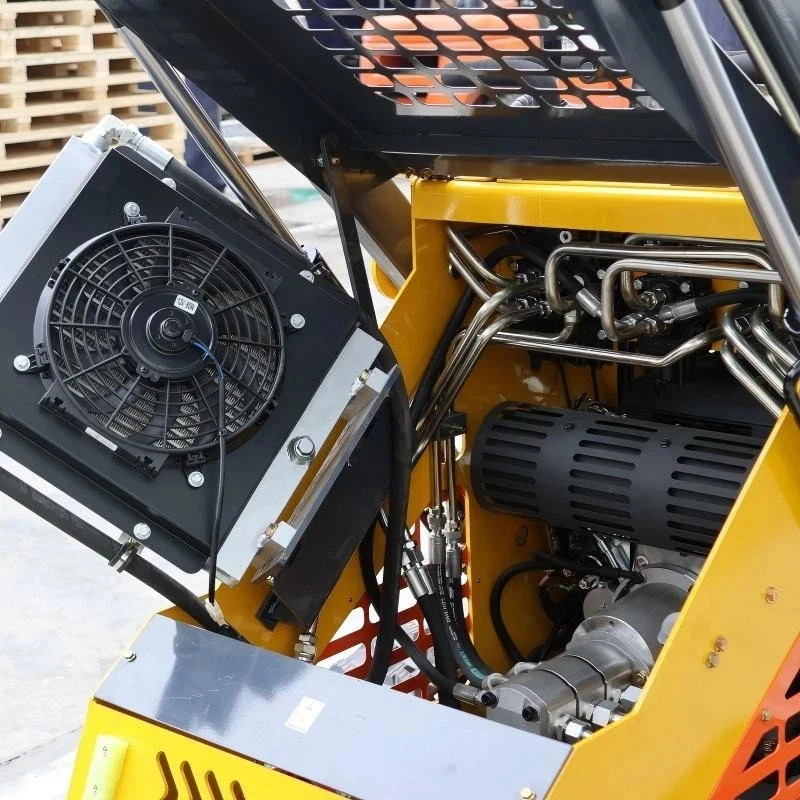

- Upgraded Cooling System: 50% higher heat dissipation efficiency, effectively prevent overheating during long‑time continuous operation
- Tracked Propulsion: Strong grip, good adaptability for mud, grassland, slope ground, gradeability up to 30°
- 375kg Max Lifting Capacity: Strong loading capacity for daily heavy‑load operation
- Quick‑change Interface: Supports multiple attachments: bucket, auger, bulldozer blade, snow plow etc.
- Compact Dimension: Small footprint, suitable for narrow‑site work such as backyard, greenhouse, small construction site
- Electric Start: Easy start‑up operation, simple maintenance, rated working pressure 17MPa for stable hydraulic output
📐 Specifications
| Item | Unit | Parameter |
|---|---|---|
| Model | ‑ | V380 |
| Bucket Capacity | m³ | 0.15 |
| Max.Lift Capacity | Kg | 375 |
| Operating Speed | Km/h | 0‑6 |
| Rated Pressure | MPa | 17 |
| Gradeability | Degree | 30 |
| Driving Style | ‑ | Tracked Propulsion |
| Operating Weight | Kg | 890 |
| Machine Dimensions(L*W*H) | mm | 1750*1100*1250 |
| Fuel Consumption | L/H | ＜6.7 |
| Engine Model | ‑ | R740‑1(RATO 739cc) |
| Starting Method | ‑ | Electric Start |
| Max.Engine Power | kW/HP | 16.8kW / 24HP |
🏗️ Application Scenarios
This compact track skid‑steer loader fits various working conditions:

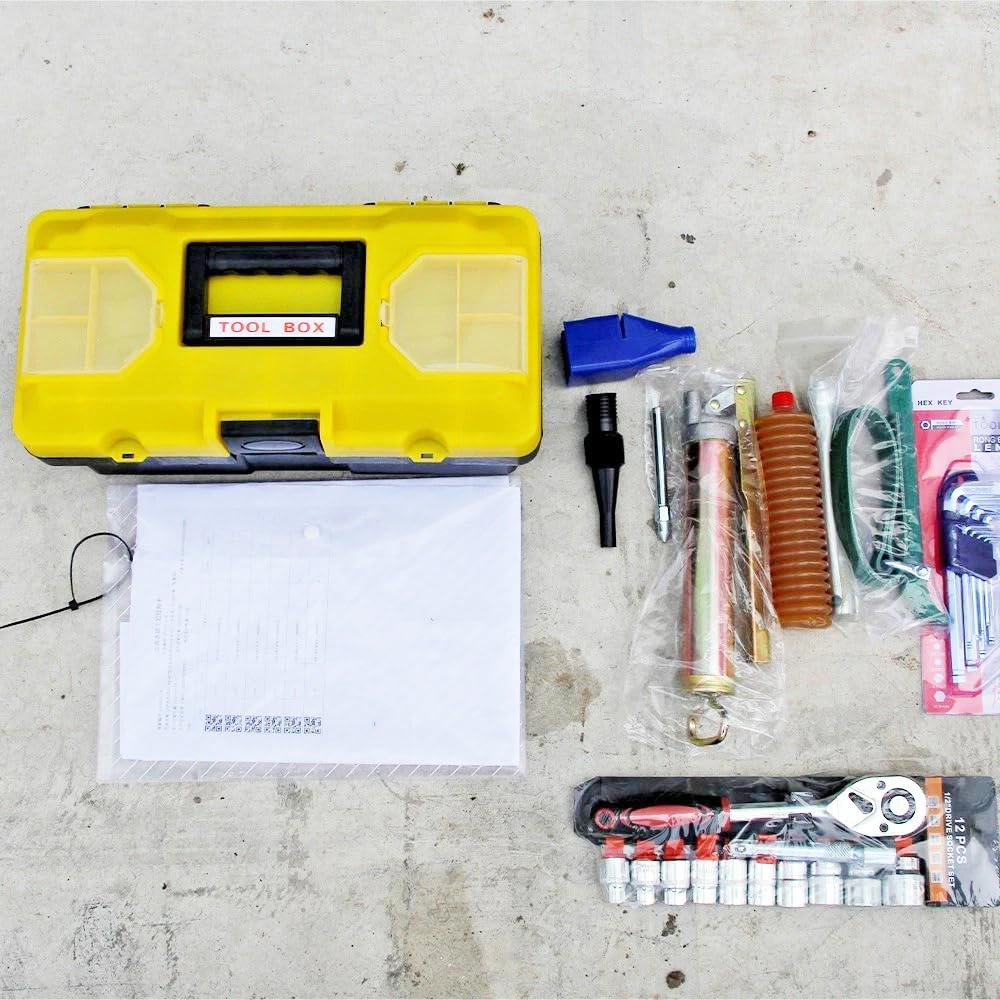

📦 What’s Included
- 1 × V380 Mini Track Skid Steer Loader (with standard bucket)
- Operation Manual & Maintenance Instruction
- Export‑grade Plywood Wooden Crate Packaging
Note: Other attachments shown in pictures are for demonstration only, NOT included unless you choose corresponding bundle option.
🚚 Shipping & 🛡️ Warranty
A. SHIPPING INFORMATION
- Machine is securely packed in fumigated export plywood crate.
- Item is shipped via LTL freight. Commercial address with forklift / loading dock is required.
- Residential address delivery may generate extra surcharge, please contact us before purchase.
- Tracking information will be provided after shipment.
- Please inspect crate upon receipt. Report damage to us immediately if any packaging breakage found.
B. WARRANTY POLICY
- Warranty covers manufacturing defects of main machine and engine.
- Warranty does NOT cover wear‑parts, improper operation, overloading, man‑made damage.
- Please save your order information for warranty application.
- Please contact our customer service first for technical trouble‑shooting, we will provide fast support solution.
🏭 About Us
We are a professional manufacturer focused on mini construction machinery, including mini skid steer loaders, mini excavators and full‑series supporting attachments. Every unit goes through strict factory inspection before delivery. We commit to deliver high‑quality, cost‑effective compact machines for global dealers and end‑users. If you have questions about machine parameters, attachment compatibility or customization, please send us message, we will reply promptly during business hours.
