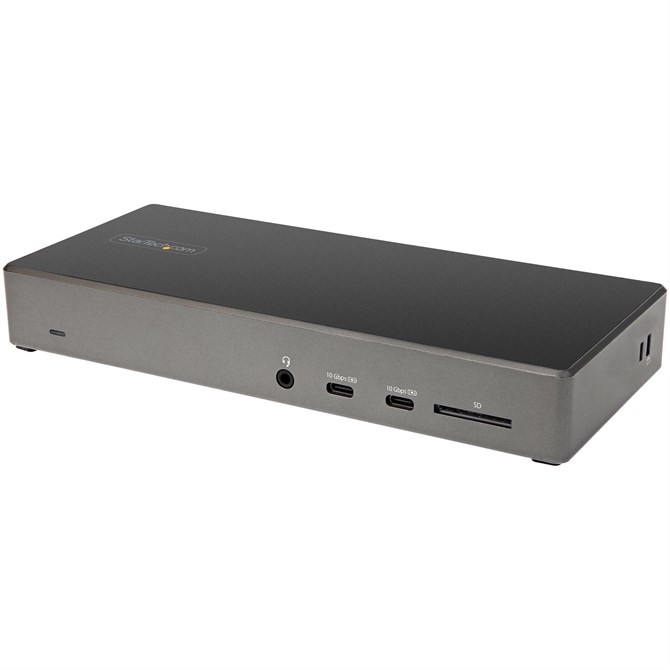

StarTech.com USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Po
USB Type-C Docking Station| Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports
This USB-C Gen 2 10Gbps docking station turns your USB-C � or Thunderbolt� 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.
HDMI & DisplayPort for Multiple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.
DP 1.4 HBR3 with DSC Enabled
DP 1.4 HBR3 (without DSC)
DP 1.2 HBR2
Triple Display
Up to 4096 x 2160 @ 30Hz
Up to 1920 x 1080 @ 60Hz
Up to 1600 x 900 @ 60Hz
Dual Display
Up to 4096 x 2160 @ 60Hz*
*HDMI port + DP port or 2 DP ports
Up to 2560 x 1440 @ 60Hz
Up to 1920 x 1080 @ 60Hz
Single Display
Up to 4096 x 2160 @ 60Hz
Up to 3840 x 2160 @ 60Hz
Up to 3840 x 2160 @ 30Hz
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD 3.0 UHS-I card reader for media storage.
� 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
� 2x USB-A 3.2 Gen 1 - 5 Gbps
� 2x USB-A 2.0 - 480 Mbps
� SD 3.0 UHS-I Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.
Additional Security Features
This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.
Enhance Productivity and Device Management with the StarTech Connectivity Tools Application
Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
�
Advanced Windows Layout Utility : To setup and save custom windows layouts.
�
Mac Address Pass-Through Utility : To improve network security.
�
USB Event Monitoring Utility : To track and log connected USB devices
�
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech Connectivity Tools application, please visit: StarTech /Connectivity-Tools
The StarTech Advantage
Specs
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
2
USB Power Delivery (USB PD)
USB Power Delivery up to
0 W
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
HDMI version
2.0
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
2
DisplayPort version
1.4
Combo headphone/mic port
Headphone outputs
Number of sockets /ports where headphones are connected.
1
Headphone connectivity
How headphones connect to a device e.g. wirelessly or via a cable and connector.
3.5 mm
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s
Copper ethernet cabling technology
BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Performance
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards
Types of memory cards which can be used with this product.
MMC, SD
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
Gbit/s
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
The number of displays that can be used with this product.
3
Maximum refresh rate
60 Hz
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Performance
Product colour
The colour e.g. red, blue, green, black, white.
Black, Grey
LED indicators
Certification
CE, FCC, RoHS
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
0 - 240 V
Power plug type
Type M
Compatible power plug types
EU, UK
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mobile operating systems supported
The operating systems e.g. Android, iOS, that can be used with the mobile device.
Android 10, Android 9.0, iPadOS
Other operating systems supported
ChromeOS
Weight & dimensions
Width
The measurement or extent of something from side to side.
210 mm
Depth
The distance from the front to the back of something.
90 mm
Height
The measurement of the product from head to foot or from base to top.
30 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
300 g
Packaging data
Package width
The distance from one side of the packaging to the other.
270 mm
Package depth
The distance from the front to the back of the packaging.
0 mm
Package height
The distance from the top to the bottom of the packaging.
94 mm
Package weight
Weight of the packaged product.
1.4 kg
Packaging content
Cables included
USB Type-C to USB Type-C
AC adapter included
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Logistics data
Products per master (outer) case
4 pc(s)
Master (outer) case width
390 mm
Master (outer) case length
282 mm
Master (outer) case height
5 mm
Harmonized System (HS) code
84733020
Other features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Cypress - CYPD4236, Synaptics - VMM5320BJG-R
