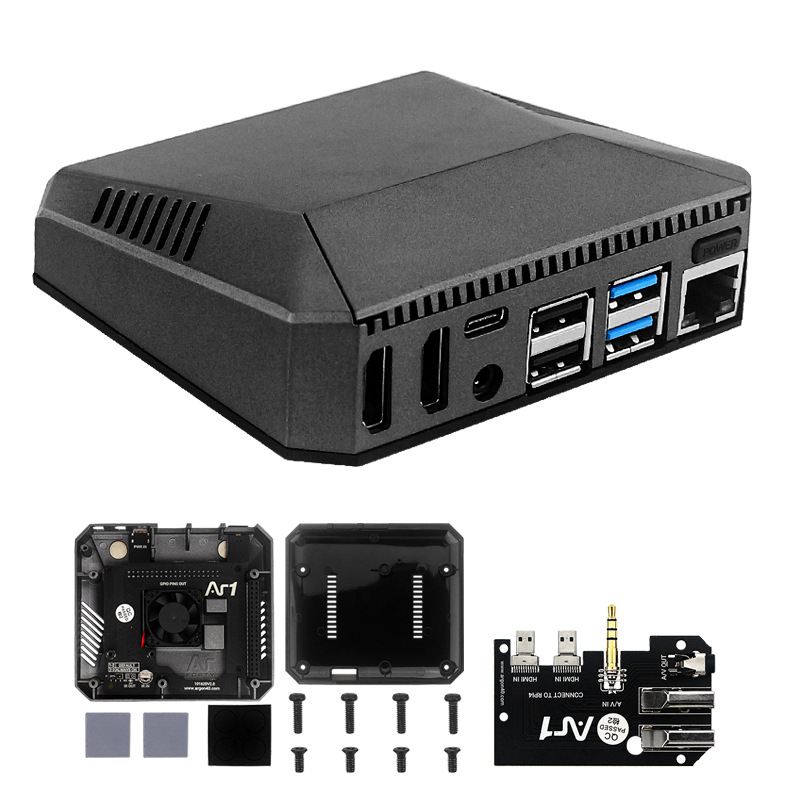

Aluminum Case for Raspberry Pi 4B Built‑in Cooling Fan GPIO Expansion Board Metal Protective Enclosure
Magnetic Removable Lid | Independent Power Switch | Full Port Cutouts | Complete Installation Kit
Product Overview
This premium aluminum enclosure is specially designedexclusively for Raspberry Pi 4 Model B. It integrates active cooling solution, GPIO breakout, and full‑interface port cutouts, ideal for home server, media center, IoT and DIY maker projects.
⚠️ Important Note:Raspberry Pi 4B main board is NOT included in package.
Key Features
- Dual‑material Housing: Main shell made of aluminum‑alloy for heat dissipation; bottom base is ABS plastic.
- Built‑in Cooling System: Equipped with cooling pillars + temperature‑controlled cooling fan for effective thermal management under heavy load.

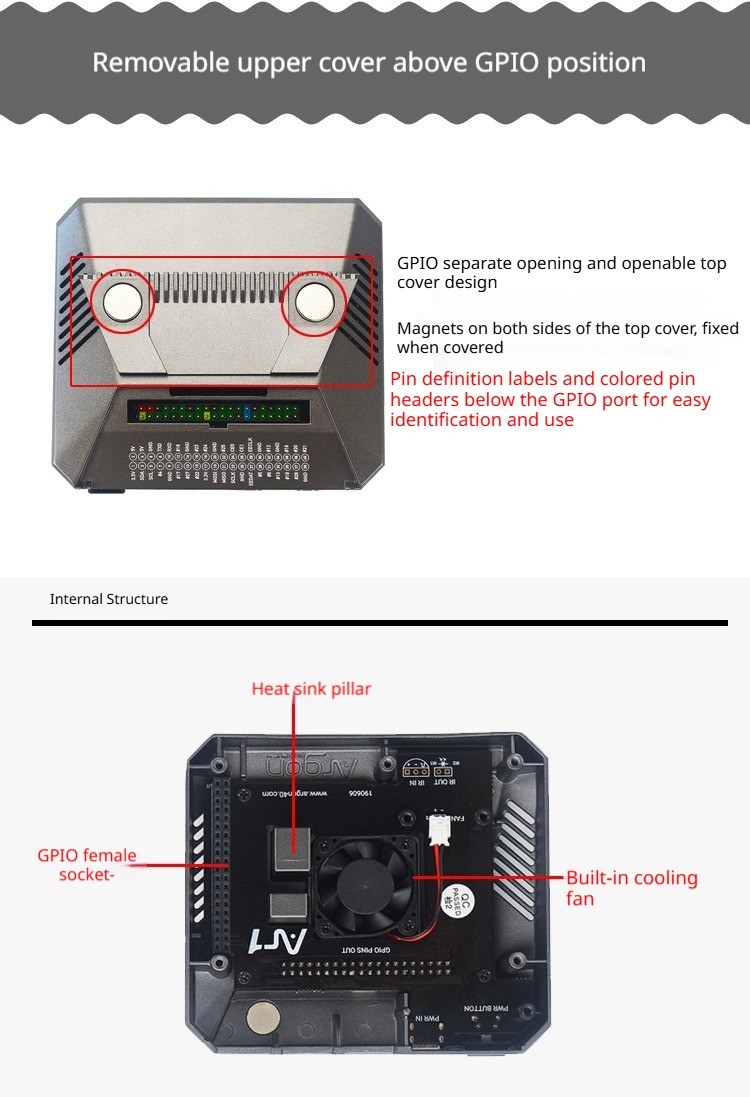

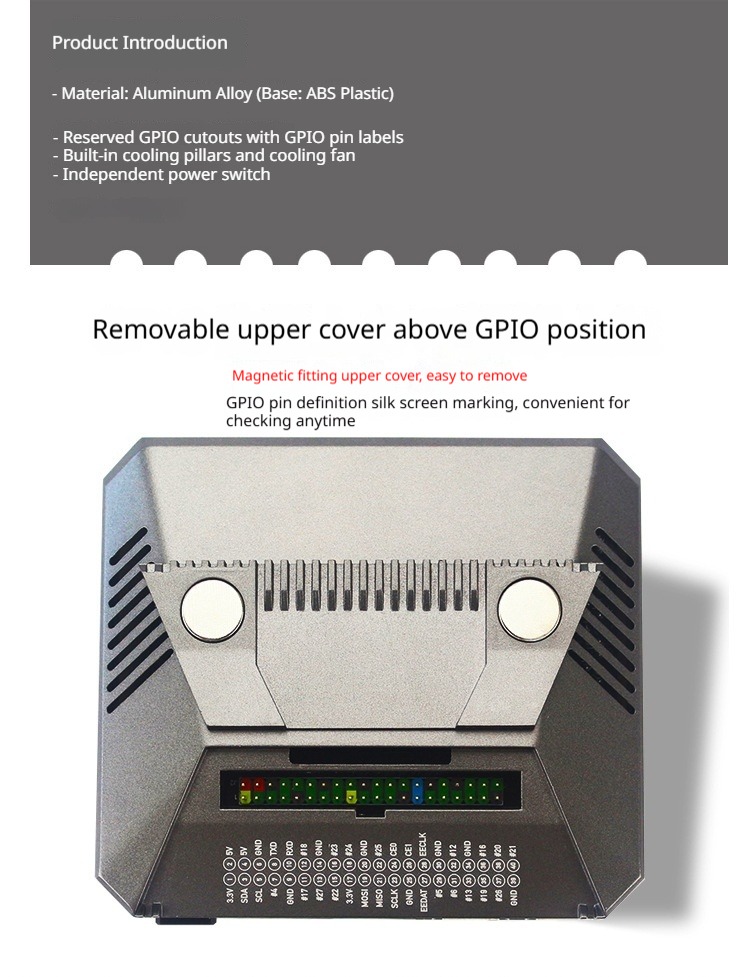

- Magnetic Removable GPIO Top Lid: Magnet‑attached cover above GPIO header, quick access for wiring without full disassembly. Silkscreen GPIO pin labels printed for easy reference.
- Independent Power Button: Physical power switch for safe power‑on / power‑off operation.

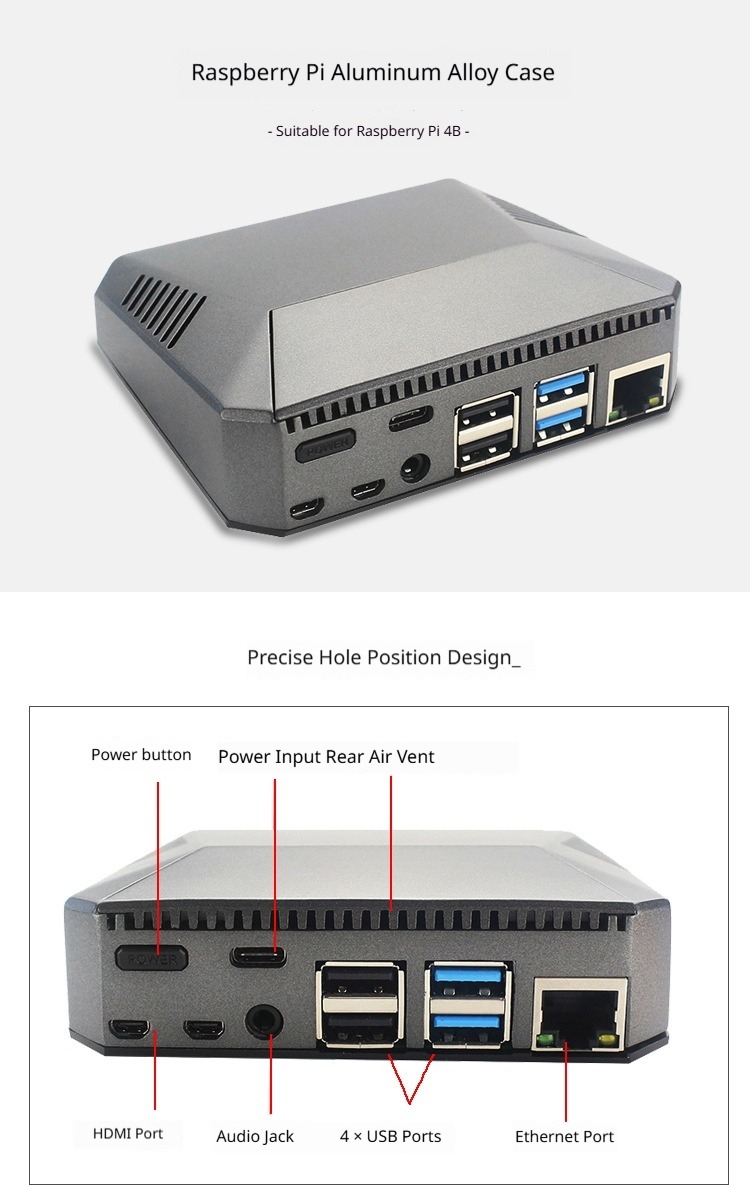

- Precision Port Cutouts: Perfect cutouts for HDMI, 4×USB ports, Ethernet, Audio Jack, Power Input. Rear air vents ensure smooth airflow.
- GPIO reserved cutouts with pin marking, support external GPIO wiring.

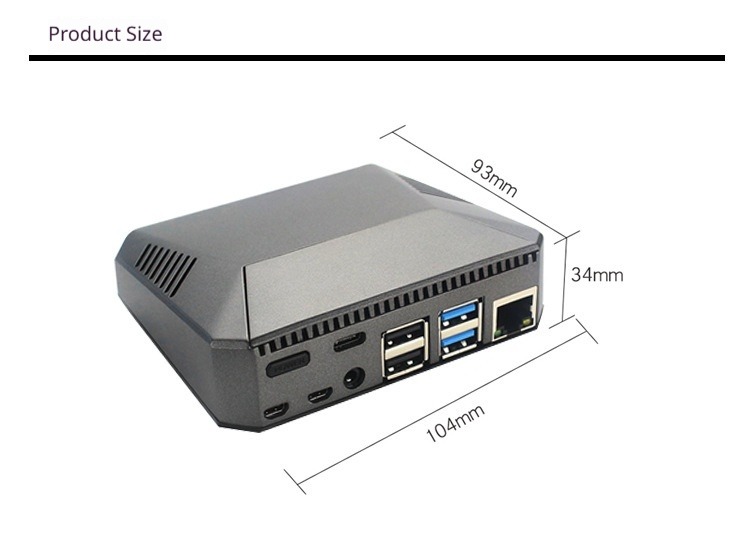

Product Dimensions
104 mm × 93 mm × 34 mm

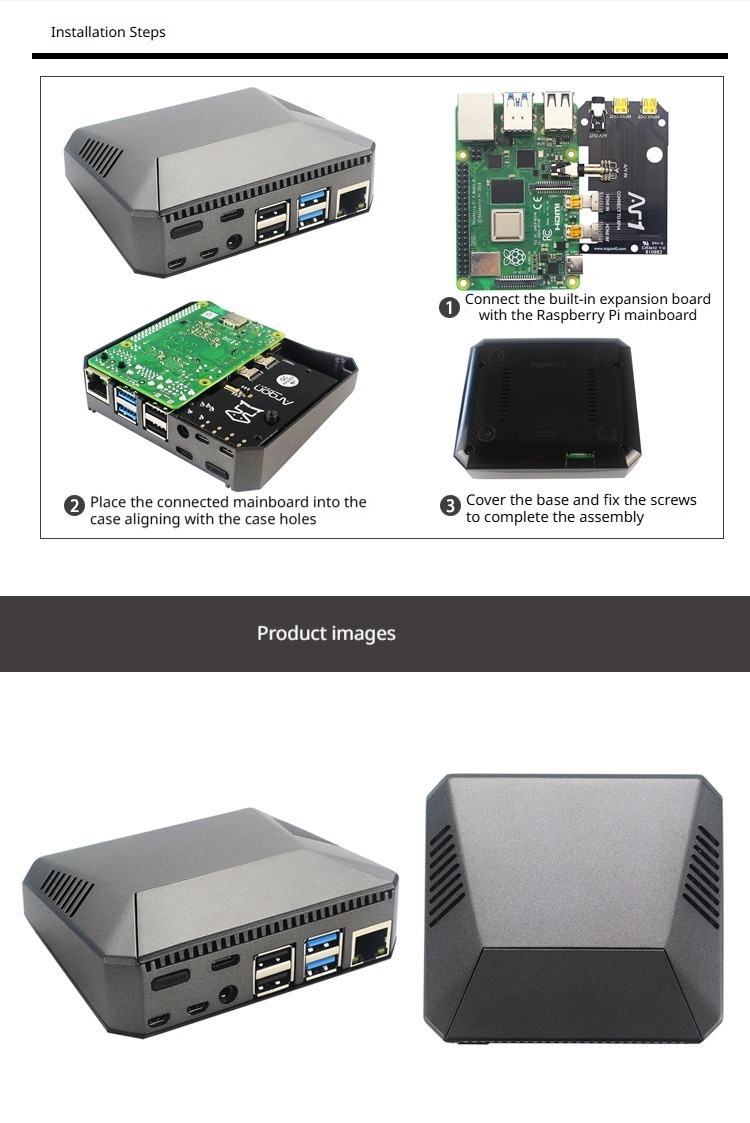

Installation Steps
- Connect the included internal expansion adapter board to Raspberry Pi 4B mainboard.
- Place the assembled board into the case, align all ports with shell cutouts.
- Attach bottom base and fasten with supplied screws, installation finished.

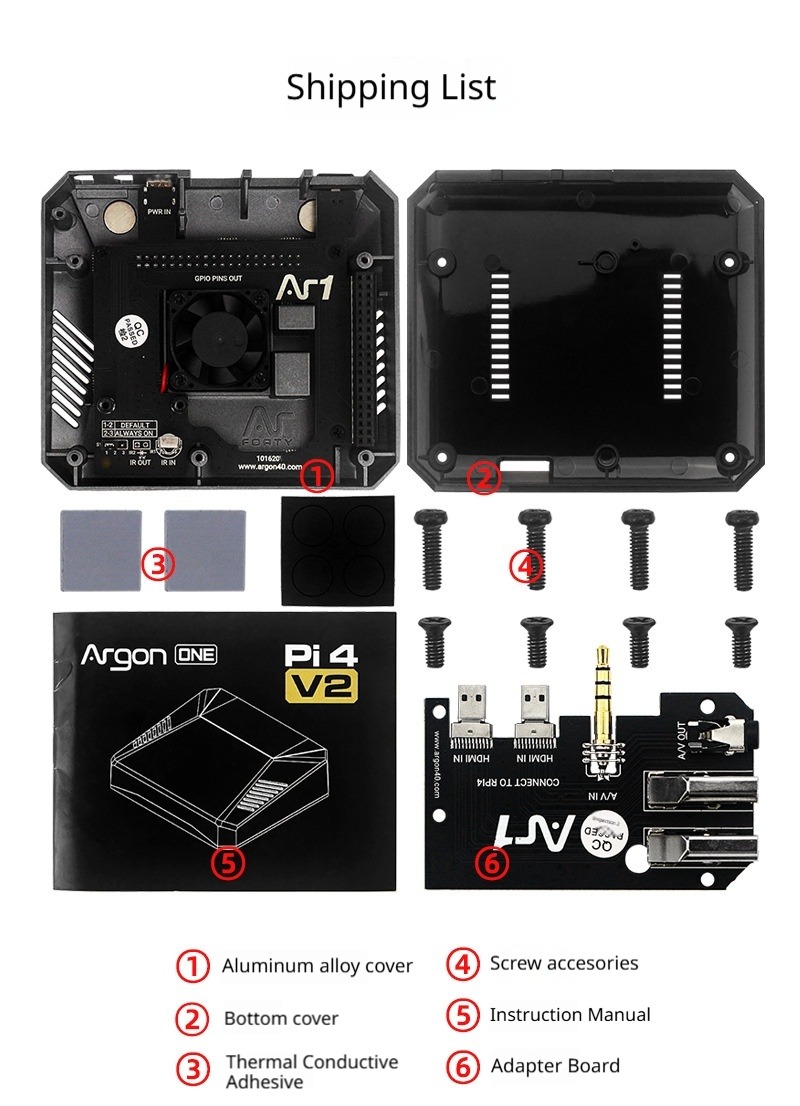

📋 What You Get (Package List)
1 × Aluminum Alloy Top Cover
1 × ABS Bottom Base
Thermal Pads
Screws
User Manual
1 × Expansion Adapter Board
Raspberry Pi 4B board, power supply and other accessories areNOT included.
Raspberry Pi 4B board, power supply and other accessories areNOT included.
Compatibility
Fits: Raspberry Pi 4 Model B
NOT compatible with Raspberry Pi 3B / 3B+ / 5 / other single‑board computers
| Attribute | Value |
|---|---|
| Type | Protective Enclosure / Case |
| Material | Aluminum Alloy + ABS Plastic |
| Compatible Model | Raspberry Pi 4 Model B |
| Features | Built‑in Cooling Fan, GPIO Expansion, Magnetic Lid, Power Switch |
| Dimensions | 104×93×34 mm |
| Included | Case, Expansion Board, Thermal Pads, Screws, Manual |
| Country/Region of Manufacture | China |
This metal enclosure is custom‑built for Raspberry Pi 4 Model B. The aluminum protective shell comes with built‑in cooling fan, GPIO expansion adapter board and magnetic removable top lid, great for maker, home server and media center projects. Raspberry Pi 4B mainboard is not included.
