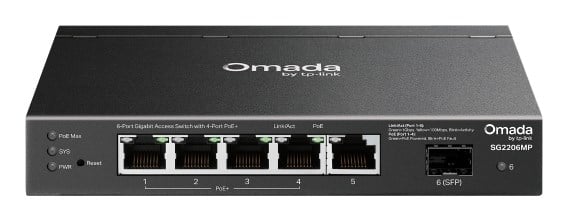

TP-Link SG2206MP Network Switch L2 Gigabit Ethernet 10/100/1000 Power over Ether
Multiple Application Scenarios
Wi-Fi Coverage
Works with Access Points
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Specs
Management features
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
5
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
5
Installed SFP modules quantity
An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.
1
Network
Port mirroring
Routing entries
230
Link aggregation
Rate limiting
Spanning tree protocol
Active link detection
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
Gbit/s
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
Jumbo frames support
Jumbo frames
9
Packet buffer memory
4.1 MB
Security
DHCP features
DHCP relay, DHCP server
IGMP snooping
Security
Loop protection
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Stackable
Devices can be placed on top of each other.
Power
Power source
What is providing power for the product e.g. mains electricity.
DC
Power supply included
There is a power supply with this product.
Number of power supply units
1
DC input voltage
53.5 V
Input current
1.31 A
Power consumption (max)
The maximum amount of power used by the device.
73.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
63 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
8 mm
Depth
The distance from the front to the back of something.
0.7 mm
Height
The measurement of the product from head to foot or from base to top.
25.4 mm
