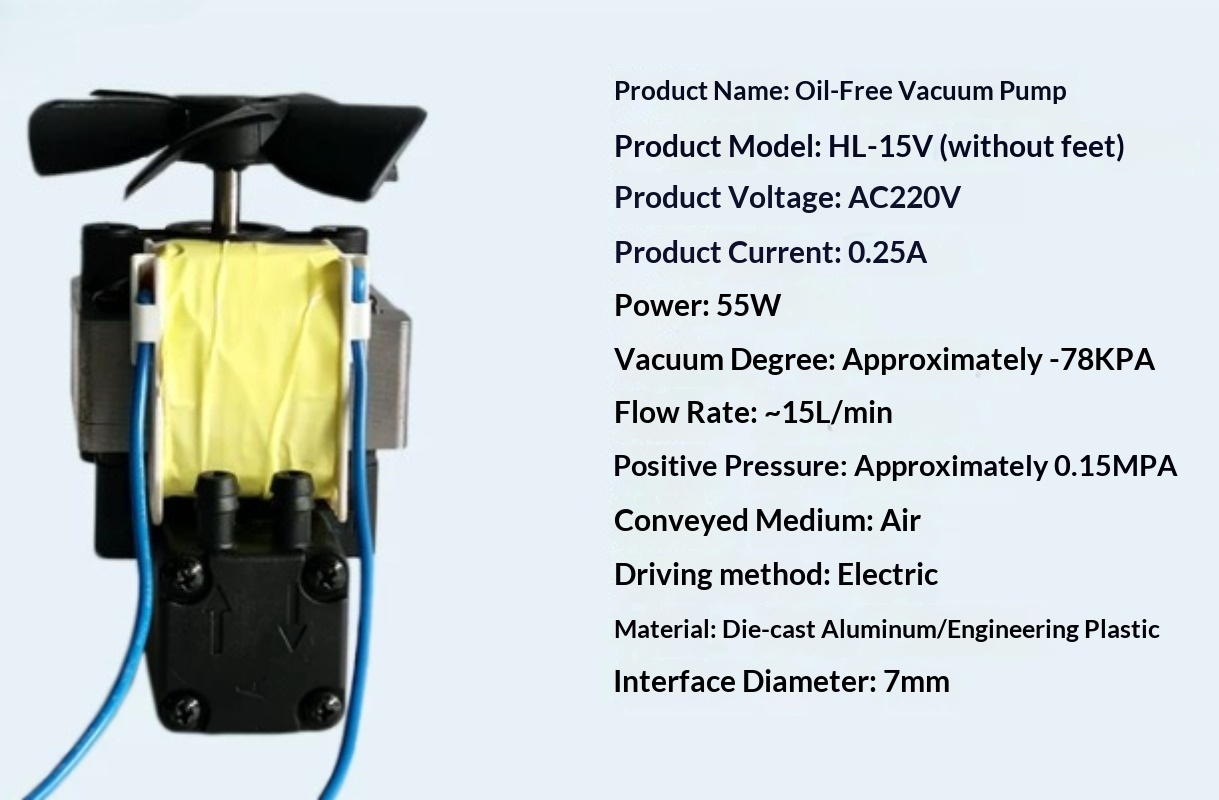

# HL-15V (Without Feet) Oil-Free Vacuum Pump Specifications Summary

### Electrical Specifications

- Supply Voltage: AC 220V

- Operating Current: 0.25A

- Rated Power: 55W

### Airflow Performance

- Ultimate Vacuum: Approx. -78 kPa

- Gas Flow Rate: Approx. 15 L/min

- Output Positive Pressure: Approx. 0.15 MPa

- Pumped Medium: Air

- Connection Diameter: 7 mm

### Construction and Drive

- Drive Type: Electric

- Main Body Material: Cast Aluminum + Engineering Plastic

- Model: Version without feet

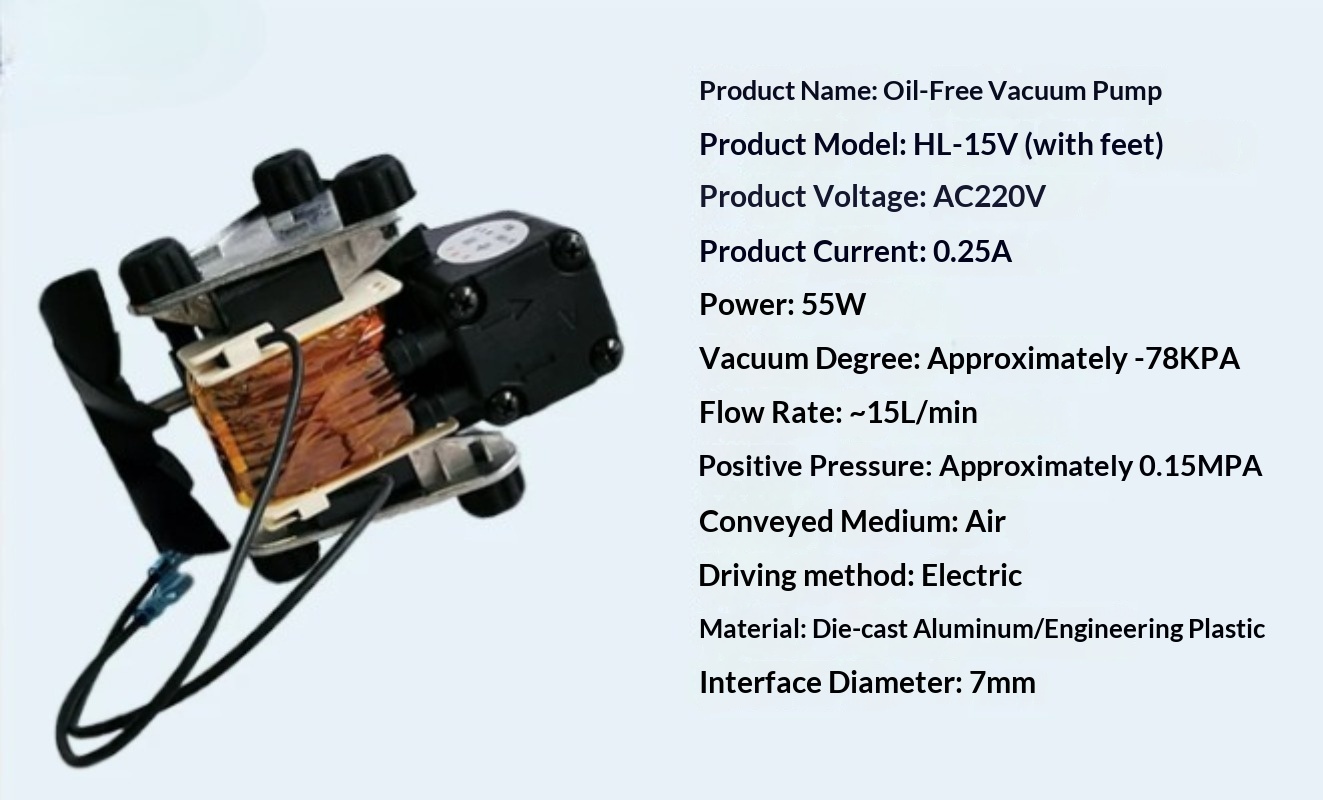

# HL-15V (with feet) Oil-Free Vacuum Pump Specifications

## Electrical Specifications

- Operating Voltage: AC 220 V

- Rated Current: 0.25 A

- Rated Power: 55 W

## Gas Circuit Performance Specifications

- Vacuum Level: Approx. -78 kPa

- Air Flow Rate: Approx. 15 L/min

- Output Positive Pressure: Approx. 0.15 MPa

- Conveyed Medium: Air

- Pipe Connection Diameter: 7 mm

## Structure and Drive

- Drive Type: Electric

- Housing Material: Cast Aluminum + Engineering Plastic

- Model Configuration: With mounting feet
