Product Description
Introduction:
AWC7824 Double Heads Laser controller system AWC7824, AWC7824 laser motion control system.
It is the latest research and development of a new generation of motion controller. The controller adopts the new CPU, faster and more stable.
AWC7824 is an independent DSP laser controller used for the laser cutting and engraving systems.

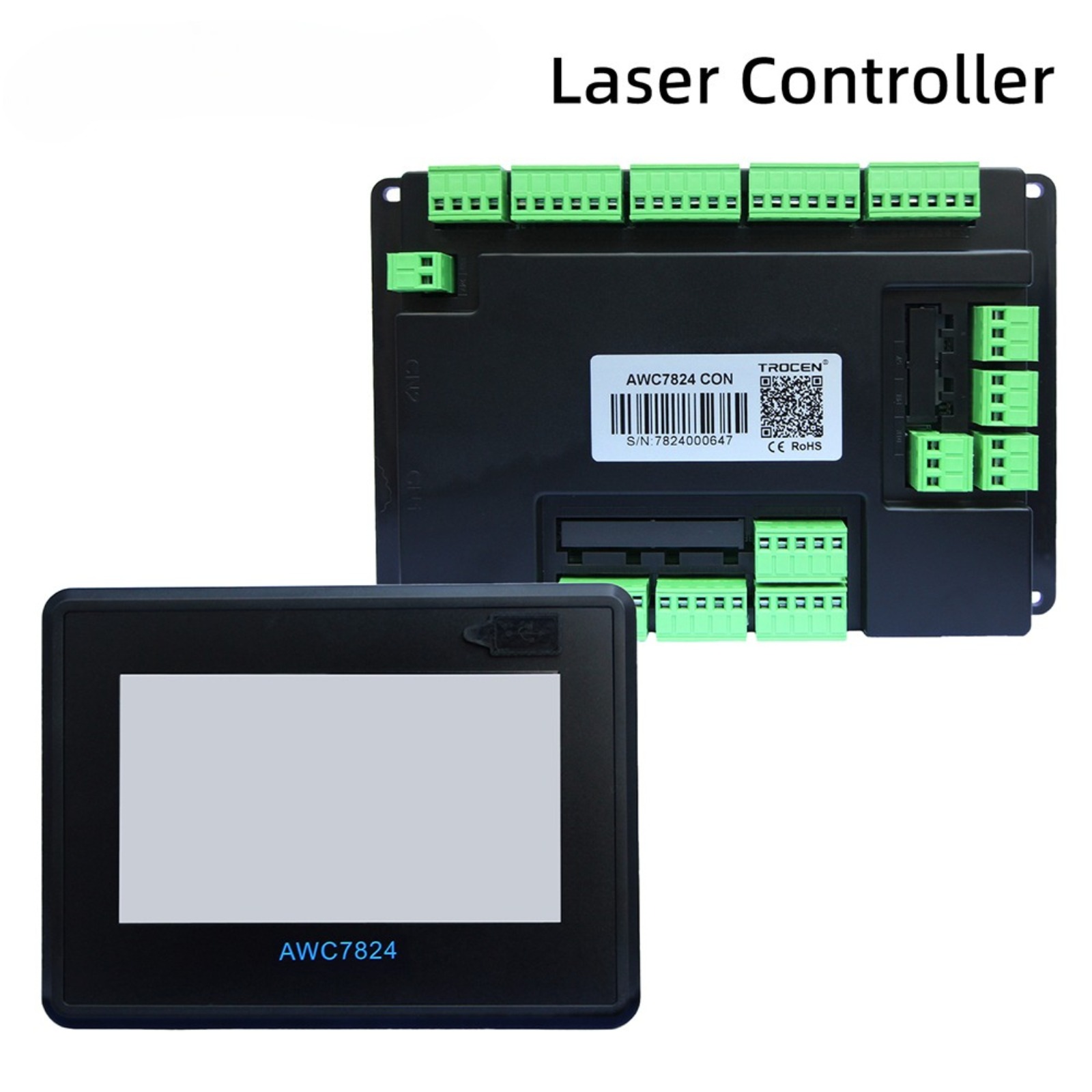

AWC7824 Controller board with Aluminum case.
Specifications:
Power Model:AWC 7824 (Replacement of AWC 708C lite)
Power supply:DC 24V,3A
Input : 6 roads
Output: 6 roads
Control axes:X YZU axis
Laser power:0-100%,0.01% continuous adjustment
Accuracy:±0.001mm
Laser Source Type:Various AC/DC Excitation and RF CO2 laser & Solid medium
Application:Laser cutting machine, Laser engraving machine, etc.
Environment:Operating temperature: (-10~40) C, Relative humidity: ≤90%
Support format: DST. PLT. BMP. DXF. DWG. AI

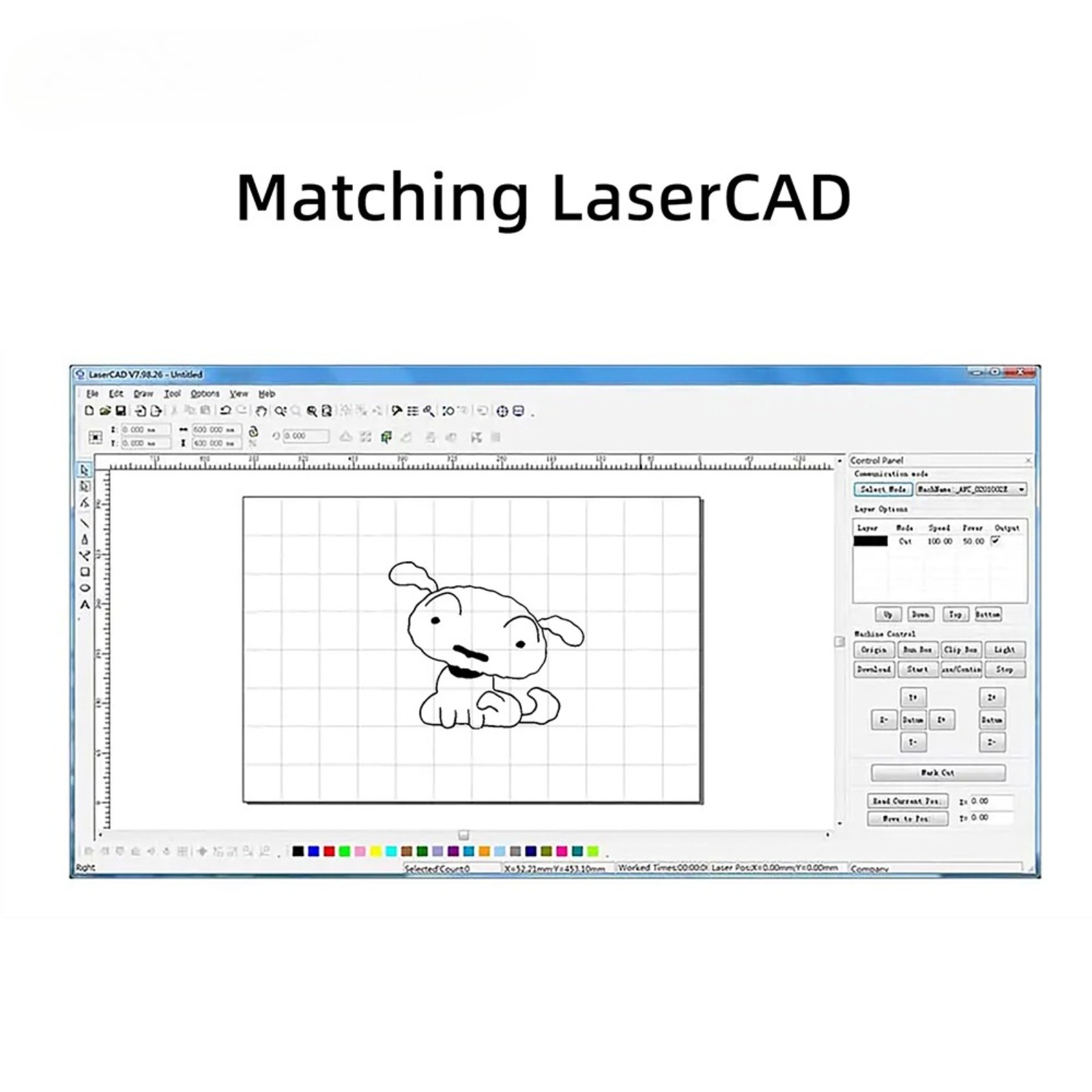

Support software:Laser CAD
AWC7824 have some improvements as below
1.The controller adopts the new CPU, faster and more stable.
2. Equipped with a higher resolution image display, display intuitive, new dynamic track display, anchor point returns the humanized function such as pattern, make the machine in operation at the same time can be seamlessly switch machine, effectively improve the control precision machine, and ensure the safety of the machine, at the same time, retain the AWC608 series classic way of human-computer interface.
Main Features

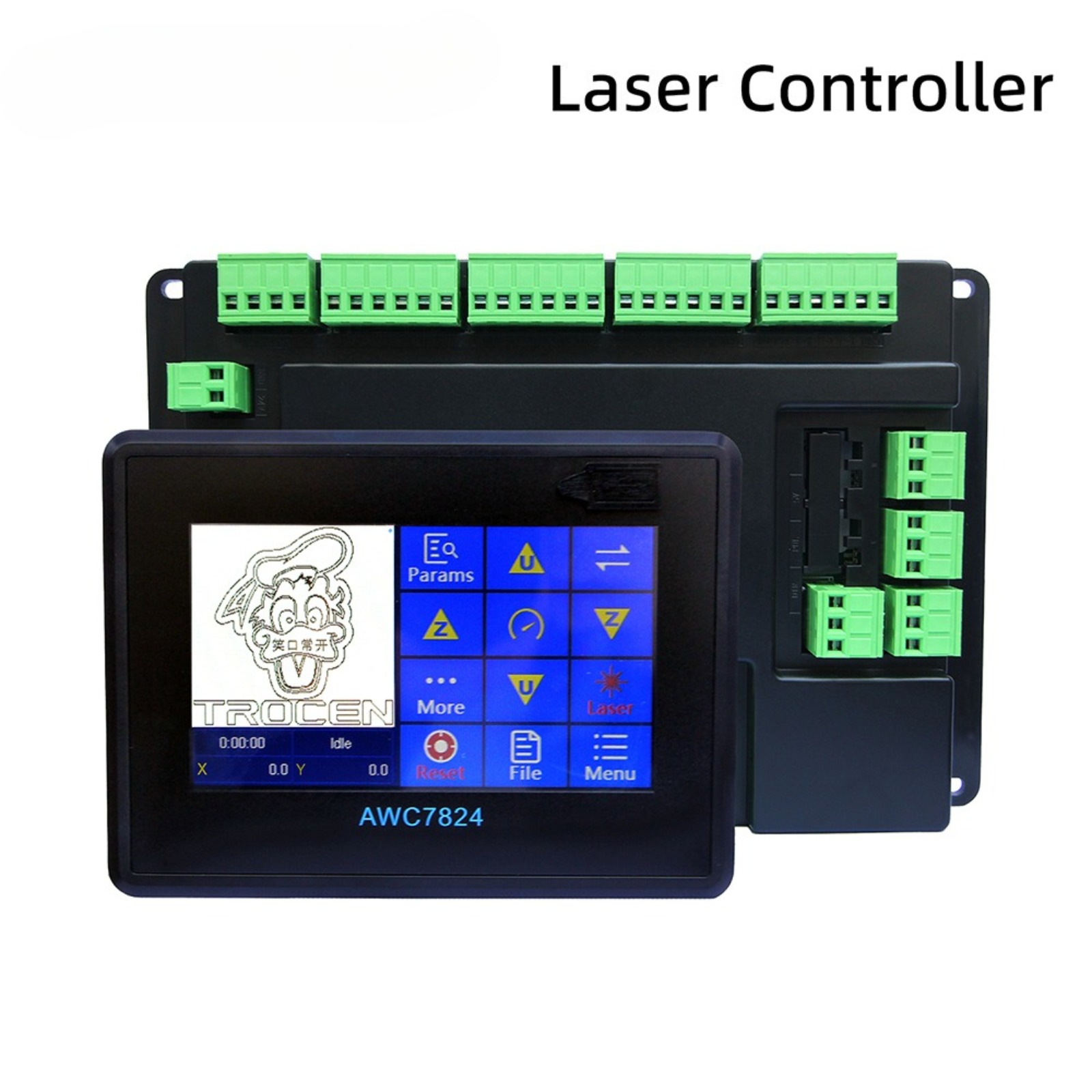

1. The true color screen, display content more abundant;
2. Adopt new 32-bit high speed CPU; make the system run faster and more stable;
3. The system comes with the clock display, encryption function more perfect and humanity;
4. Support U disk offline files preview function, real-time display laser trajectory;
5. Can be completely separated from the PC Settings equipment parameters;
6. The whole light coupling is completely isolated outside electromagnetic interference, anti-static resistance is strong, make the system work more stable and reliable;
7. Support for perfect power carved function;
8. Support high speed interface, U disk read and write files more stable and can identify various brand of U disk;
9. Support network communication and USB communication, transmission speed faster, more stable;
10. Support the dual laser control, adjustable power alone, and can control various laser; Support double shift each cutting.
AWC7824 Double Heads Laser controller system AWC7824, AWC7824 laser motion control system.
It is the latest research and development of a new generation of motion controller. The controller adopts the new CPU, faster and more stable.
AWC7824 is an independent DSP laser controller used for the laser cutting and engraving systems.
AWC7824 Controller board with Aluminum case.
Specifications:
Power Model:AWC 7824 (Replacement of AWC 708C lite)
Power supply:DC 24V,3A
Input : 6 roads
Output: 6 roads
Control axes:X YZU axis
Laser power:0-100%,0.01% continuous adjustment
Accuracy:±0.001mm
Laser Source Type:Various AC/DC Excitation and RF CO2 laser & Solid medium
Application:Laser cutting machine, Laser engraving machine, etc.
Environment:Operating temperature: (-10~40) C, Relative humidity: ≤90%
Support format: DST. PLT. BMP. DXF. DWG. AI
Support software:Laser CAD
AWC7824 have some improvements as below
1.The controller adopts the new CPU, faster and more stable.
2. Equipped with a higher resolution image display, display intuitive, new dynamic track display, anchor point returns the humanized function such as pattern, make the machine in operation at the same time can be seamlessly switch machine, effectively improve the control precision machine, and ensure the safety of the machine, at the same time, retain the AWC608 series classic way of human-computer interface.
Main Features
1. The true color screen, display content more abundant;
2. Adopt new 32-bit high speed CPU; make the system run faster and more stable;
3. The system comes with the clock display, encryption function more perfect and humanity;
4. Support U disk offline files preview function, real-time display laser trajectory;
5. Can be completely separated from the PC Settings equipment parameters;
6. The whole light coupling is completely isolated outside electromagnetic interference, anti-static resistance is strong, make the system work more stable and reliable;
7. Support for perfect power carved function;
8. Support high speed interface, U disk read and write files more stable and can identify various brand of U disk;
9. Support network communication and USB communication, transmission speed faster, more stable;
10. Support the dual laser control, adjustable power alone, and can control various laser; Support double shift each cutting.
-
