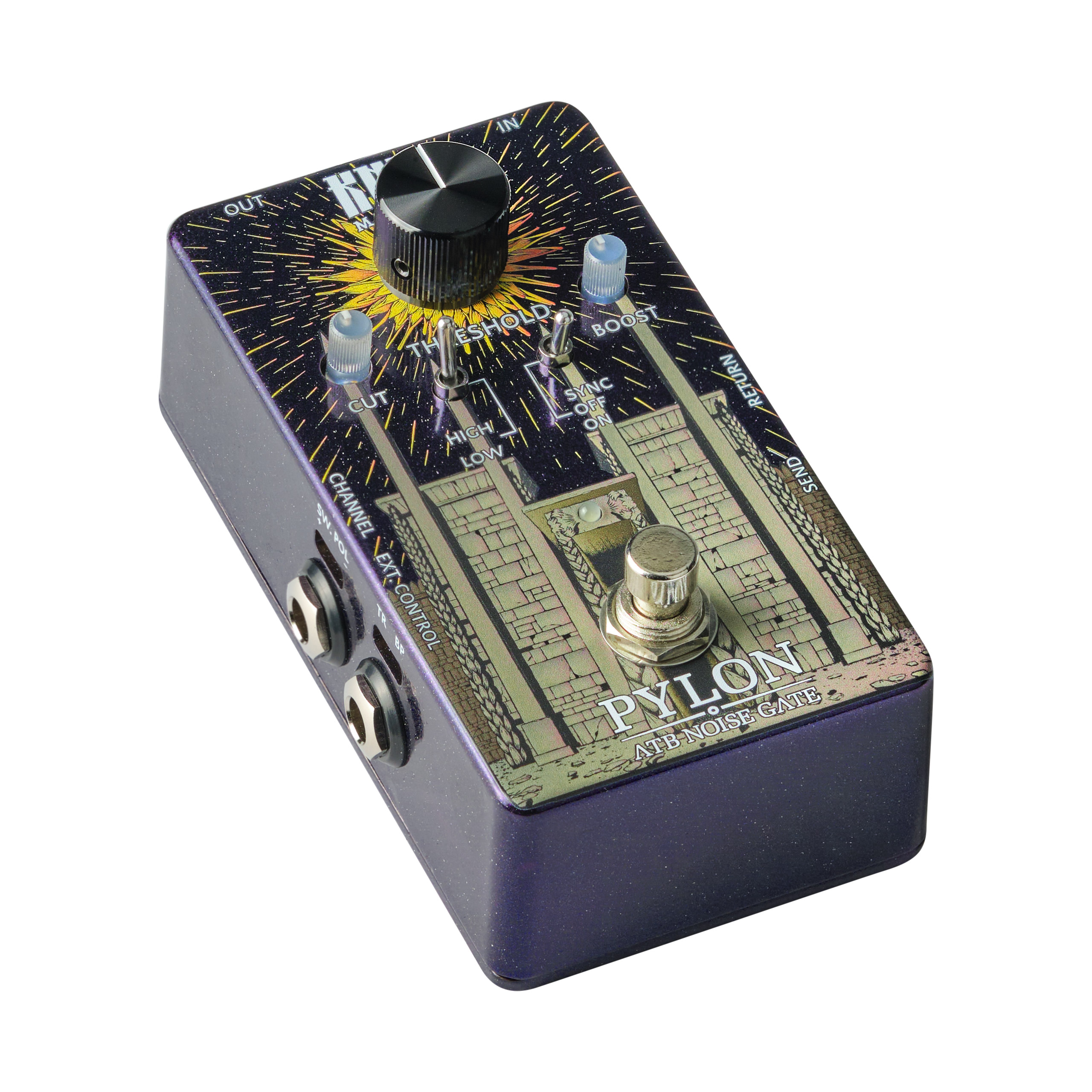

KMA Machines PYLON ATB Noise Gate Effects Pedal (NEW)
The KMA Machines PYLON ATB Noise Gate is more than just a utility pedal – it’s a multi-functional, tone-enhancing tool that eliminates unwanted noise while strengthening and shaping your sound. Combining a lightning-fast Blackmer® VCA-based noise gate with an integrated transformer boost, external trigger options, and amp channel switching, PYLON gives you total control over your rig.
From taming hiss and buzz caused by high-gain pedals to adding up to 30 dB of boost with adjustable low-end cut, PYLON helps your tone remain tight, punchy, and noise-free. Its audio-grade transformer not only balances your signal but adds extra warmth and harmonic depth, giving guitars, basses, and synths more weight without phase issues. Designed in Berlin and packed with routing flexibility, PYLON isn’t just a noise gate – it’s a complete rig enhancer.
Main Features
- ATB (Advanced Transformer Boost) Noise Gate Pedal – silence and tonal reinforcement
- Blackmer® VCA Noise Gate – ultra-fast, precise, and transparent operation
- Integrated Audio Transformer – adds warmth, heft, and balance to your signal
- Switchable Boost/Attenuation – up to +30 dB of gain or cut
- Variable Frequency CUT Control – tighten lows (65–730Hz) for focused tone
- EXT Trigger Input – external control for gate/bypass or creative triggering (e.g. synced to a kick drum)
- Channel Relay Output – switch your amp’s gain channel in sync with the pedal
- FX Loop – supports 4-cable method and flexible signal chain integration
- Ground Lift Control – for eliminating hum and noise issues
- Relay-Based Soft Switching – selectable Gate/Boost modes
- Built in Berlin, Germany – boutique engineering and reliability
- Power: 9V DC (centre -, 2.1 mm, >140mA, PSU not included)
Performance Highlights
- Ultra-Responsive Gate – choose between HIGH or LOW detection ranges for tight palm-mutes or smooth note decay
- Boost Section – push amps into saturation, shape midrange focus, or tame low end for precise chugs and solos
- Transformer Warmth – enhance core tone with subtle harmonic richness
- External Control – trigger the gate from external audio or use remote bypass switching
- Amp Channel Switching – control your amp’s gain channel directly from the pedal
- Flexible Integration – works with pedalboards, amp FX loops, and even as a studio tool
Specifications
- Circuit: Blackmer® VCA Noise Gate with Transformer Boost
- Boost Gain: Up to +30 dB (with selectable attenuation)
- Cut Frequency: 65–730Hz variable
- Connections: In/Out, Send/Return, EXT Trigger, Channel Relay
- Controls: Threshold, Boost, Cut, Detection Range, Mode switches
- Bypass: Relay-based soft switching
- Power: 9V DC, centre -, >140mA
- Build: Handmade in Berlin, Germany
The KMA PYLON ATB Noise Gate – silence unwanted noise, boost your tone, and control your rig with precision. A noise gate that doesn’t just suppress, but enhances.
Listing correct at time of upload errors and omissions excepted.
This is brand new item and comes with a full UK warranty and VAT receipt.
