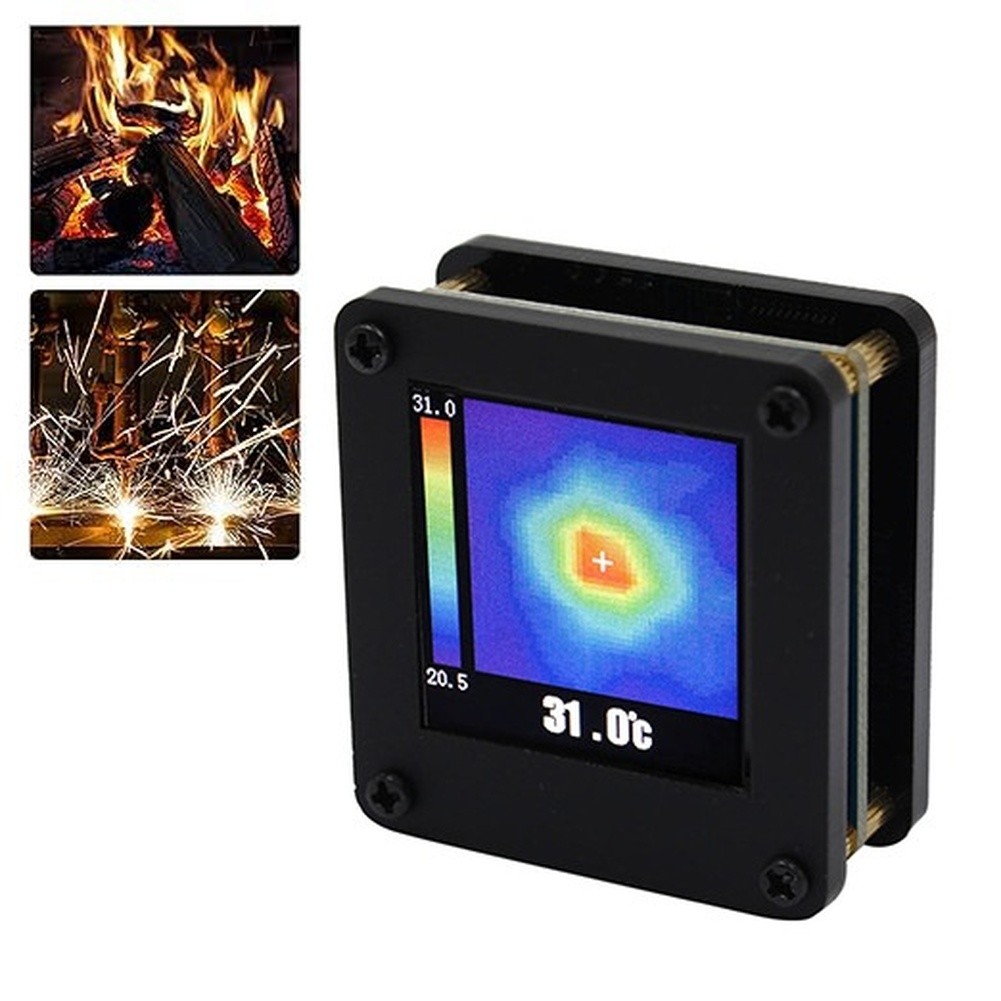

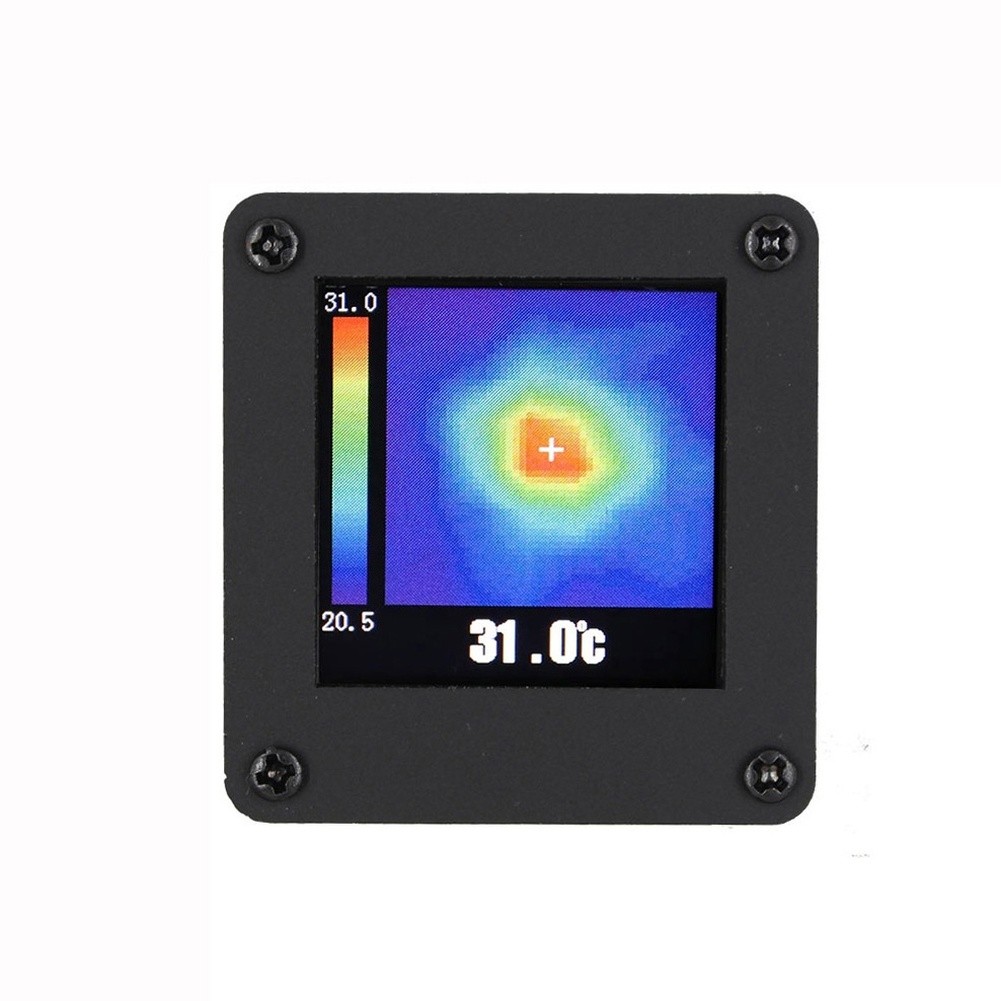

Infrared Thermal Sensor AMG8833 for 8X8 Thermal Imaging and Temperature Reading
DESCRIPTION

Features:

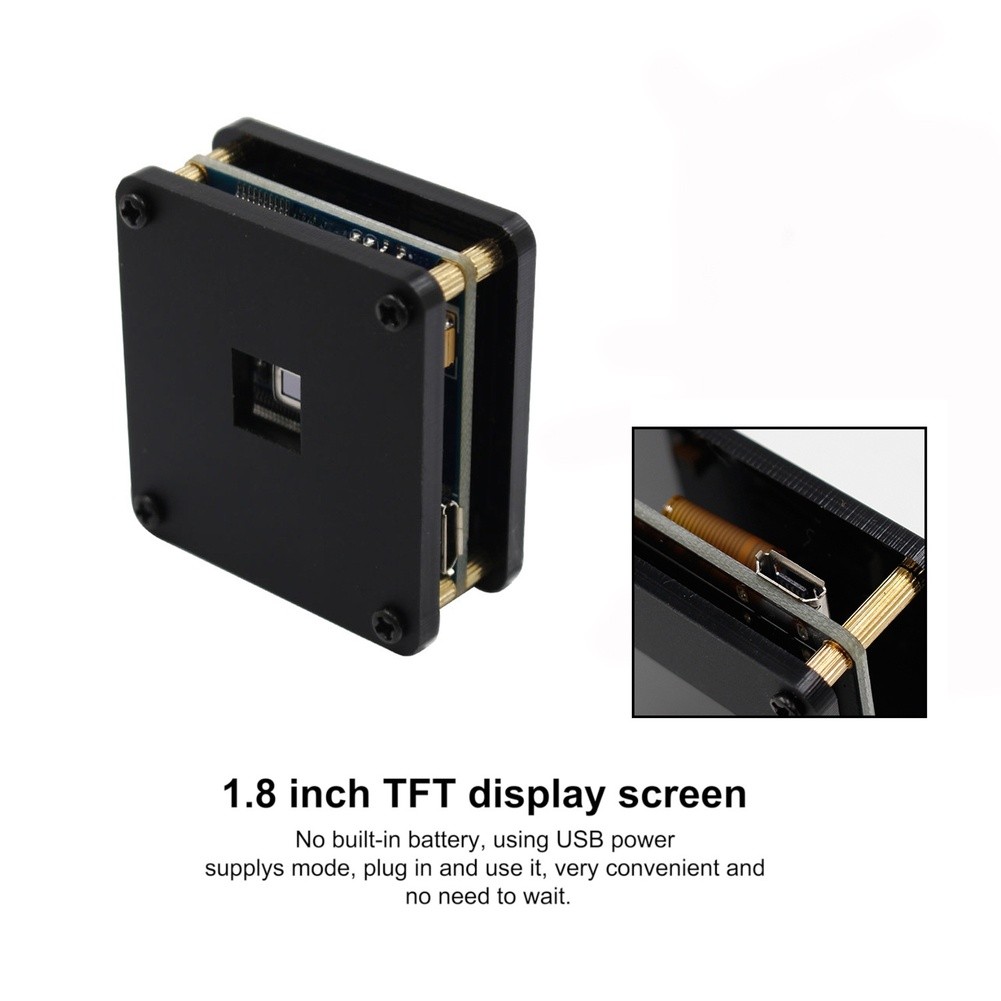

* The module can be powered directly by USB 5V to produce infrared images.
* Use AMG8833 infrared thermal sensor. Resolution is 8*8, and the maximum detection distance is 7 meters.
* Can be applied to inspect electronic products.
* Portable and compact, high performance, easy to use.

Specifications:
Part name: Thermal imager
Material: PCB
Color: Black
Temperature accuracy;
High performance high gain: typical value ±2.5℃±4.5℉
High performance low gain: typical value ±3.0℃±5.4℉
Human body detection distance: below 7m (reference value) 22.966 feet
NETD;
Typical value 0.05℃32.900℉1Hz
Typical value 0.16℃ 32.288℉ 10Hz
Viewing angle: typical 60°
Optical gap: typical within ±5.6°
Current consumption;
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (standby mode)
Setup time;
Typical 50ms (time to enable communication after setup)
Typical 15s (time to stabilize output after setup)
Number of pixels: 64 (vertical 8*horizontal 8 for matrix)
External interface: 1²C (fast mode)
Frame rate: typical 10 frames/second or 1 frame/second
Operation mode: normal, sleep, standby (10 seconds or 60 seconds interval)
Output mode: temperature output
Calculation mode: no for moving average or two for moving averages
Temperature output resolution: 0.25℃/32.45℉
Number of sensor addresses: 2 (1²C Slave for address)
Thermistor output temperature range: 0℃~80℃ (32℉~176℉)
Thermistor output resolution: 0.0625℃/32.1125℉

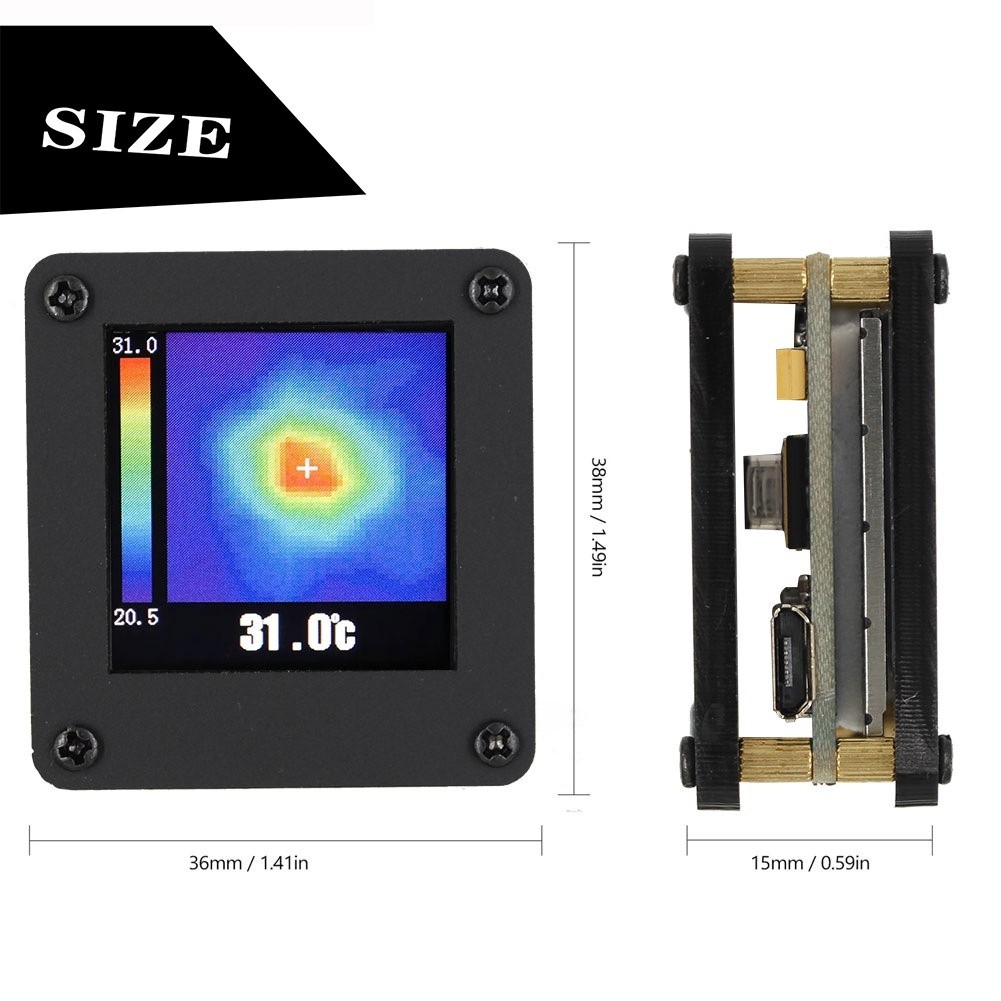

Product size: 38 * 36 * 17mm / 1.5 * 1.4 * 0.7in
Product weight: 17g / 0.6oz
Package size: 90 * 80 * 20mm / 3.5 * 3.1 * 0.8in
Package weight: 19g / 0.7oz
Note;
Adapter and USB cable are not included, thank you for your understanding.

Package Contents:

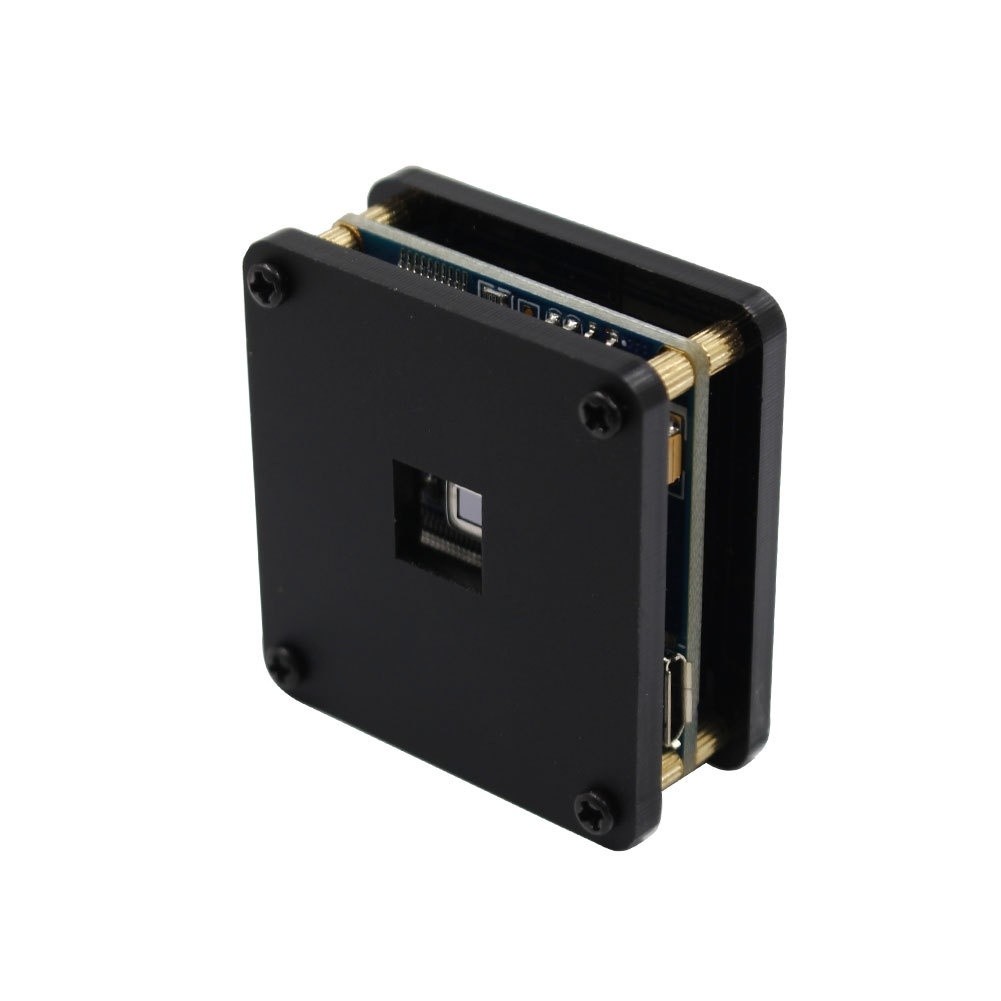

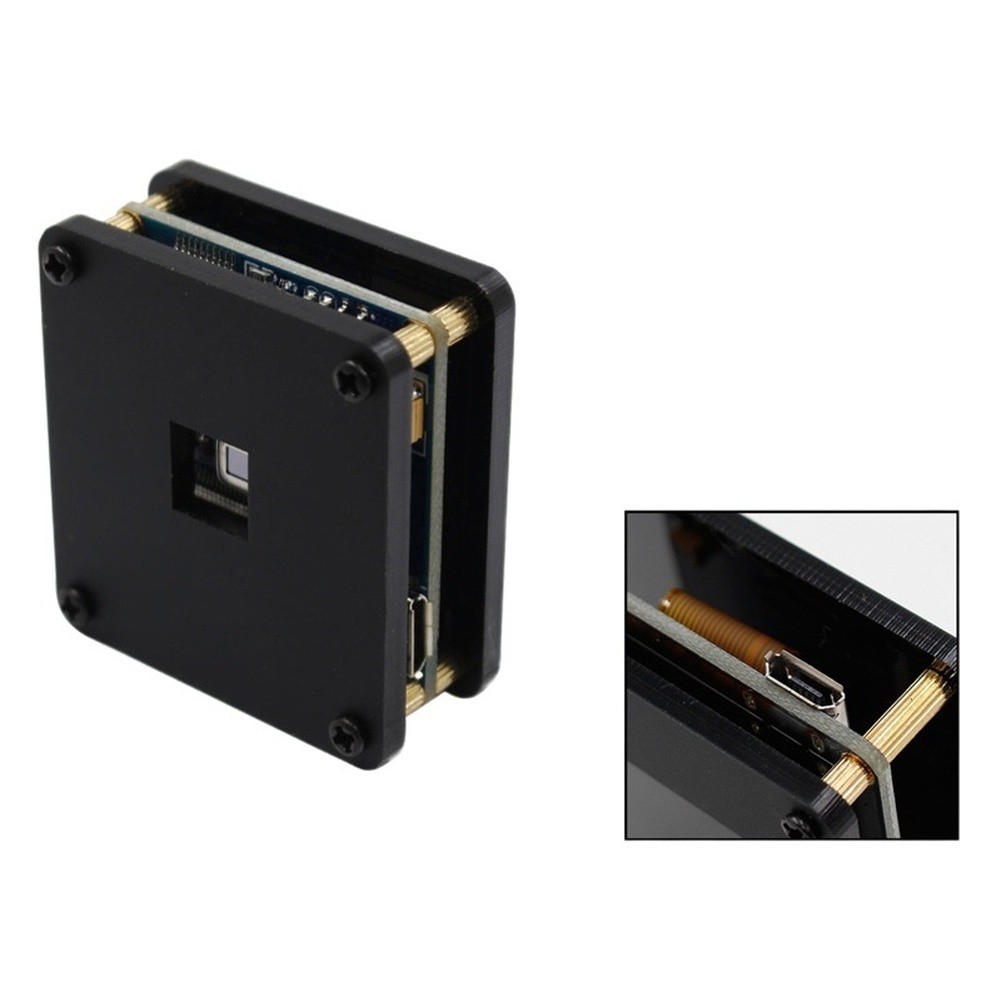

1 x AMG8833 Thermal Imager (with case)
