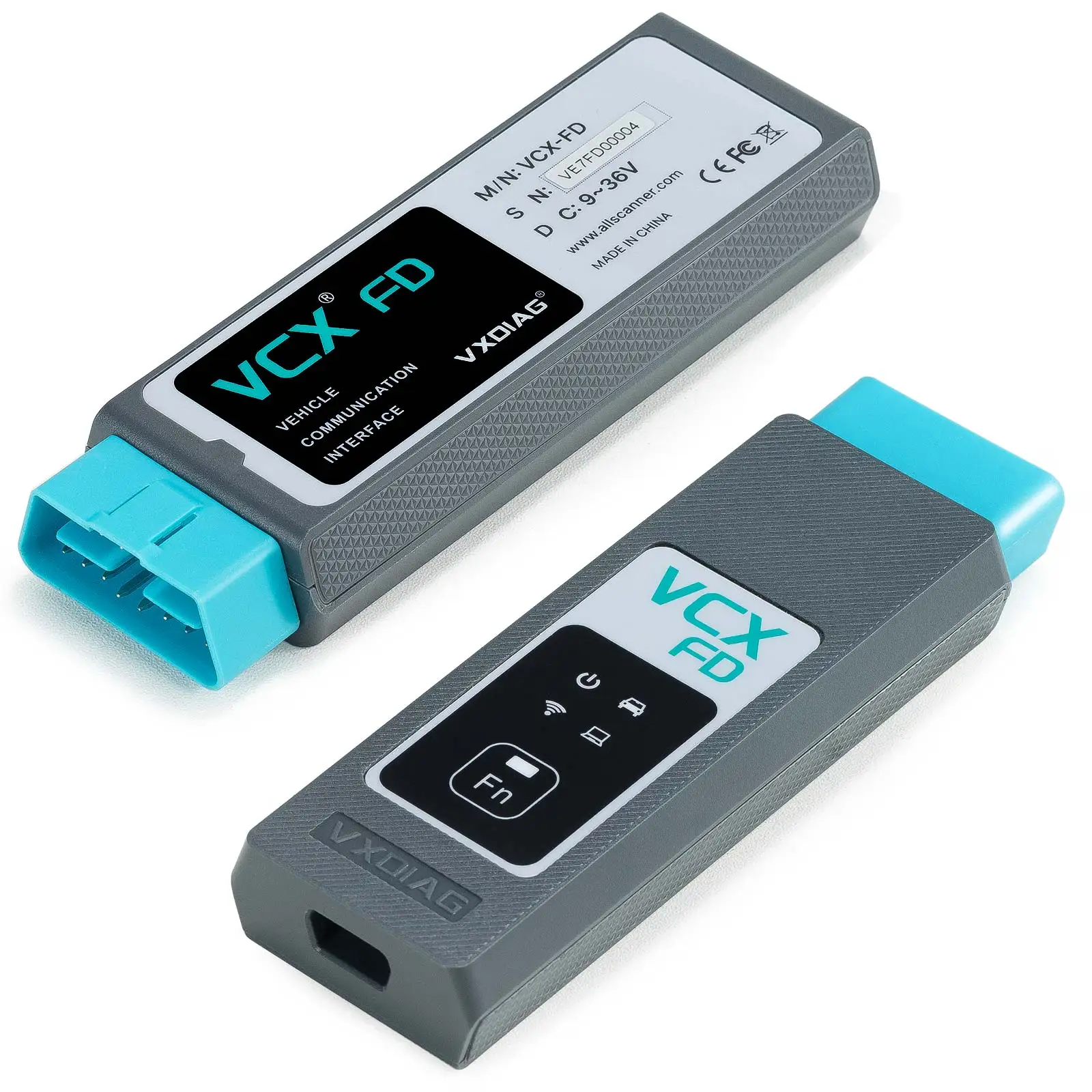

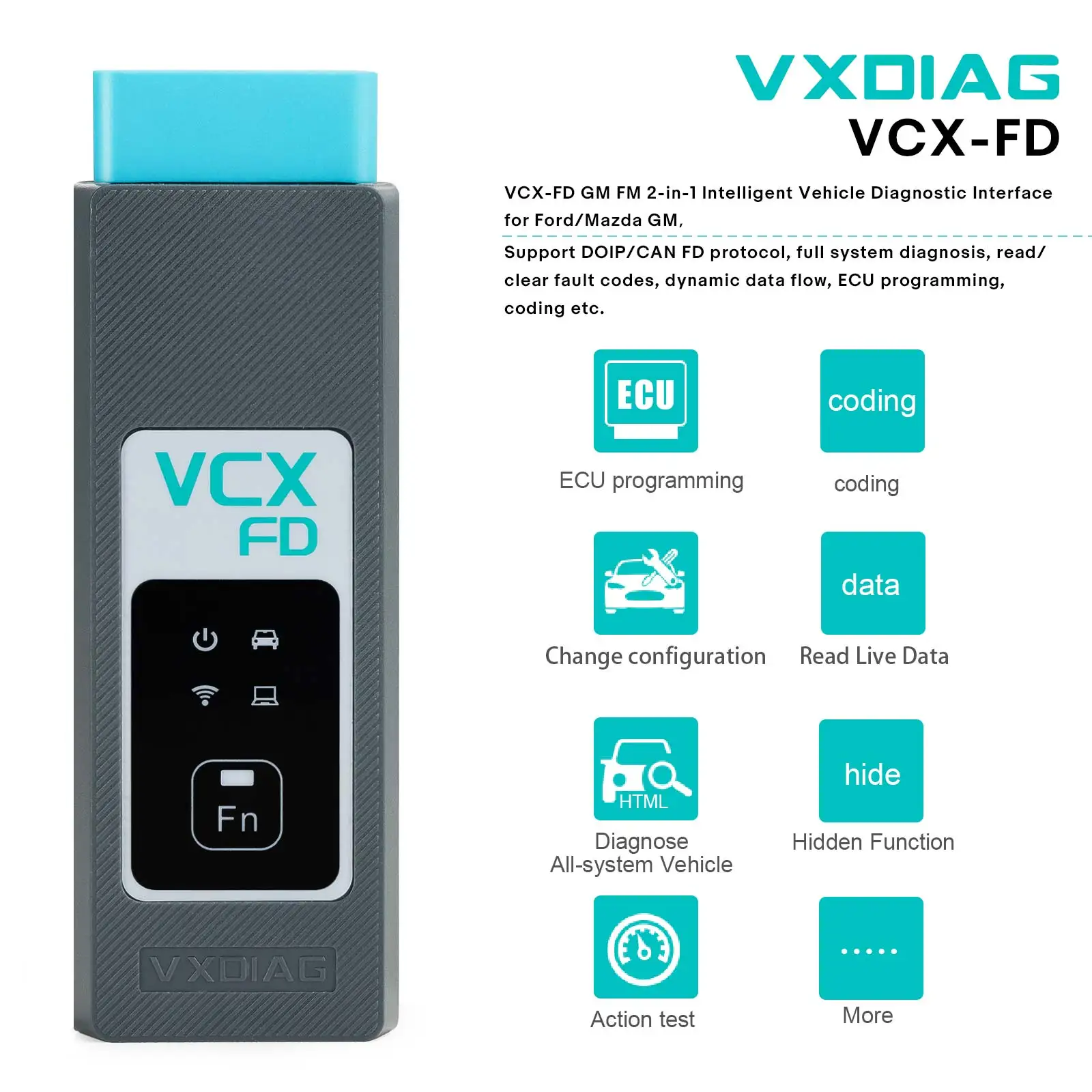

VXDIAG VCX CAN FD Diagnostic tool for GM & for Ford/Mazda 2 in 1


VCX-FD is a smart vehicle diagnostic interface designed by ALLSCANNER VXDIAG, which represents the diagnostic technology of the next generation. The product uses a newly upgraded dual-core high-speed processor to fully support multi-channel CAN-FD / DOIP and traditional diagnostic protocols, and compatible with more original diagnostic software.

VCX-FD also supports local and super remote dual-mode diagnosis to provide users with excellent diagnosis experience.


Supported Software:
For GM GDS2 V2023.10.19 Tech2WIN 16.02.24
For Ford IDS V130
For MAZDA IDS V131


Not support add other vehicle license


Advantages of VCX-FD Hardware:

VCX-FD is Extreme Performance Vehicle Diagnostic Interface

1. Dual -core architecture coordinated work, more communication performance

The 550MHz ARM protocol processor implements CAN-FD and all traditional vehicle BUS protocols.
The 560MHz MIPS network processor realizes the DOIP super diagnostic gateway.
Dual -core processors communicate through the Ethernet, high bandwidth and low latency.
The diagnostic communication speed has been several times more than the previous generation of products.

2. Dual operating system, the software is more stable

The RTOS real -time operating system guarantees the vehicle bus protocol multi -task and the communication.
OpenWRT network operating system flexibly connects a variety of network interfaces and vehicles.

3. Support more comprehensive vehicle BUS protocol

Integrate OBD intelligent protocol multi -router chips, all pins can intelligently switch any protocol.
Support 3-channel CAN-FD multi-channel complication, up to 5M BPS high-speed communication.
Support ISO-13400 standard dual-road DOIP interface Option 1 and Option 2.

4. Flexible and easy -to -use connection method

The host communication interface supports multiple connections such as USB / RJ45 / WLAN, which is flexible and easy to use.
Built -in wireless route mode, diagnostic computers can wirelessly connect devices.
Support the wireless workstation mode, the device can access the wireless LAN, and any computer can connect the device.
Support the vehicle DOIP Ethernet into WLAN to achieve wireless DOIP diagnosis.

5. Brand New Design

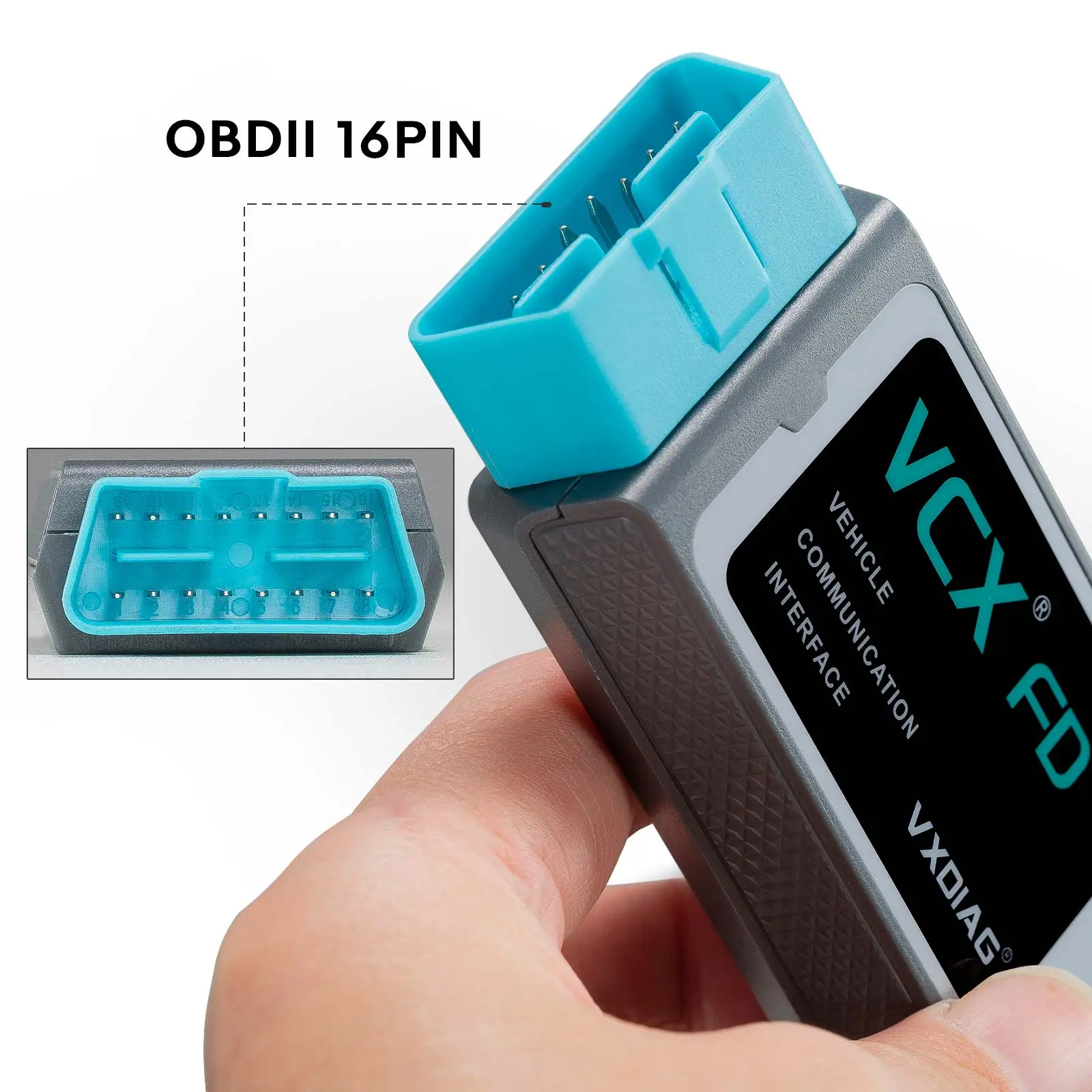

Adopt an integrated design of integrated OBD-II interface, which is convenient to plug and play.

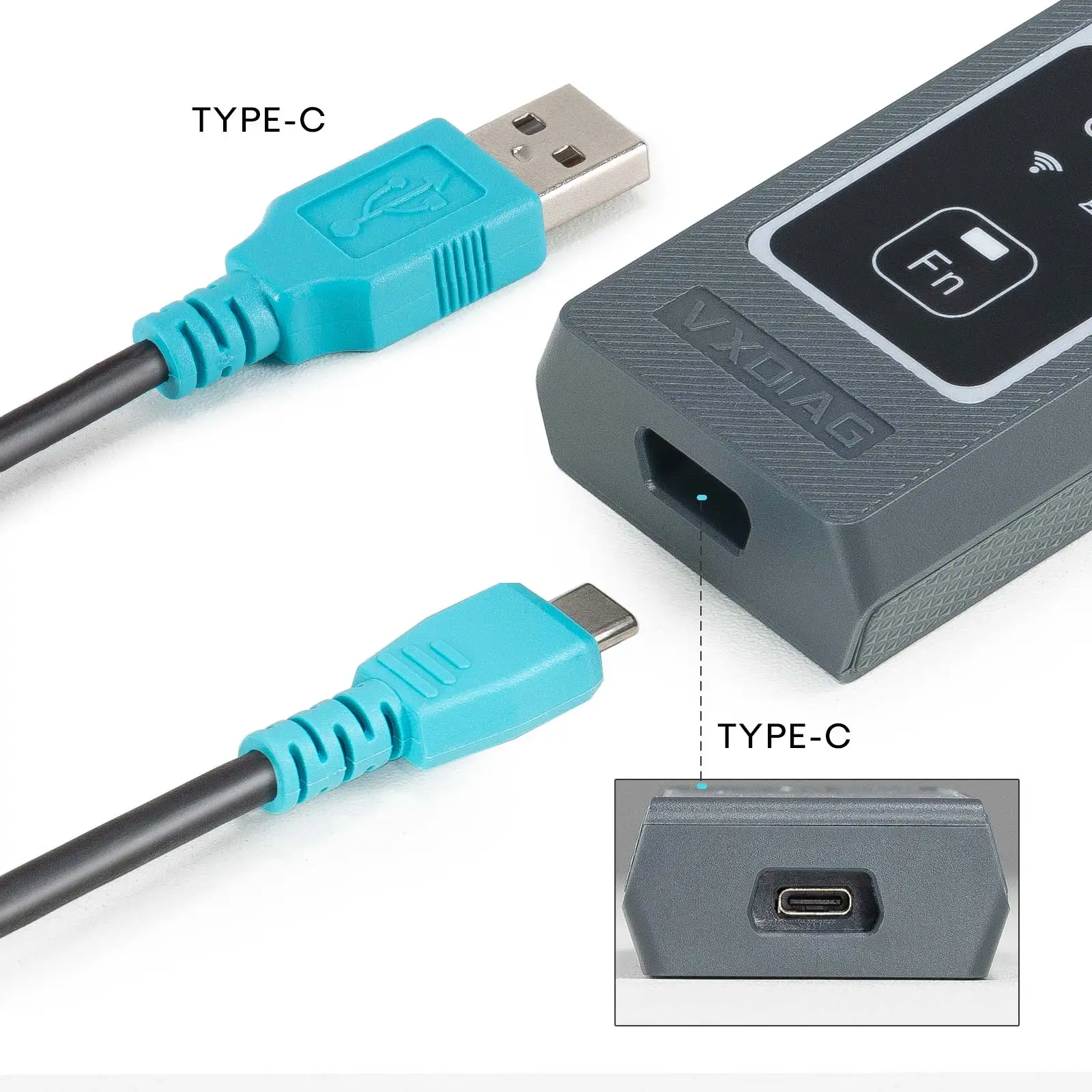

The reinforced Type-C interface can prevent shaking and falling off, and the connection is more reliable.


VCX-FD is More Powerful Vehicle Diagnostic Equipment

1. More comprehensive original vehicle diagnosis

The original diagnostic model brands that VCX-FD are now adapted to have 15 species.
After the hardware update, it fully supports new models and new original diagnostic software based on CAN-FD and DOIP.
Various advanced diagnosis and programming functions have reached the original level, and the speed even exceeds the original equipment.
Support one -click installation, uninstall and upgrade the original factory support driver, easy to use.

2. Upgraded international standard API interface

SAE-J2534-1/2 PASSTHRU V04.04 & V05.00
ISO-22900 D-PDU API for MVCI
RP-1210A/B/C API for VDA

3. Support J2534 Original Online ECU Programming (Needs original online account)

ECU software upgrade and calibration.
ECU replacement and programming.

Support BUS Protocol

ISO-15765 CAN / CANFD

VAG TP16 CAN

ISO-13400 DoIP Option1/2

VAG KW81 (SAE J2818)

ISO-9141 K-Line

SAE-J2610 SCI (Chrysler)

ISO-14230 K-Line

SAE-J1567 CCD BUS (Chrysler)

ISO-17987 LIN BUS

SAE-J2740 GM ALDL

SAE-J1850-VPW (GM Class2)

SAE-J2809 HONDA DIAG-H

SAE-J1850-PWM (FORD SCP)

For NISSAN DDL UART with CLOCK

ISO-11898-2 DWCAN

For BMW DS2

ISO-11898-3 DWFTCAN

For FORD UBP

SAE-J2411 SWCAN (GMLAN)

For BENZ KWFB

VAG TP20 CAN (SAE-J2819)

For BENZ MB-ISO

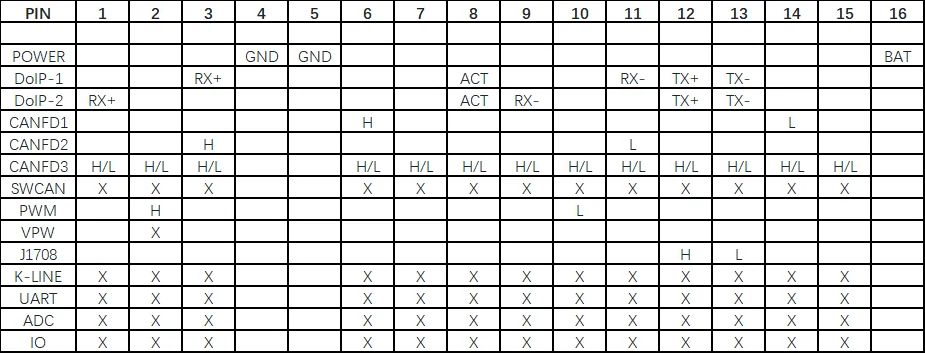

OBD-II pin BUS Protocol Coverage

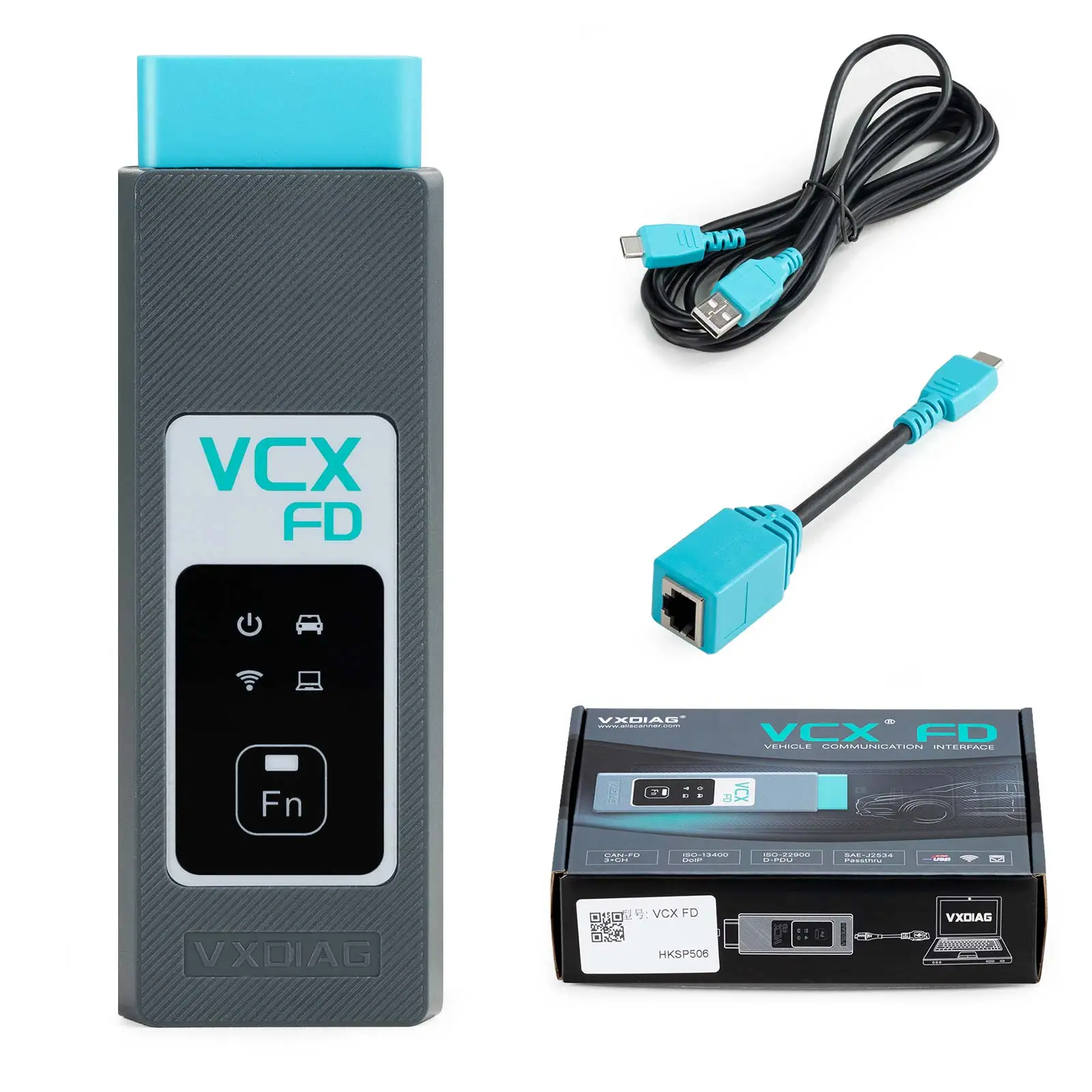

Package List:

1pc x VCX-FD Interface

1pc x Type-C USB Cable

1pc x RJ45 Lan Converter

1pc x Paper Case
