ProfiNET series module Parameter Table

PN1-IO8R-A

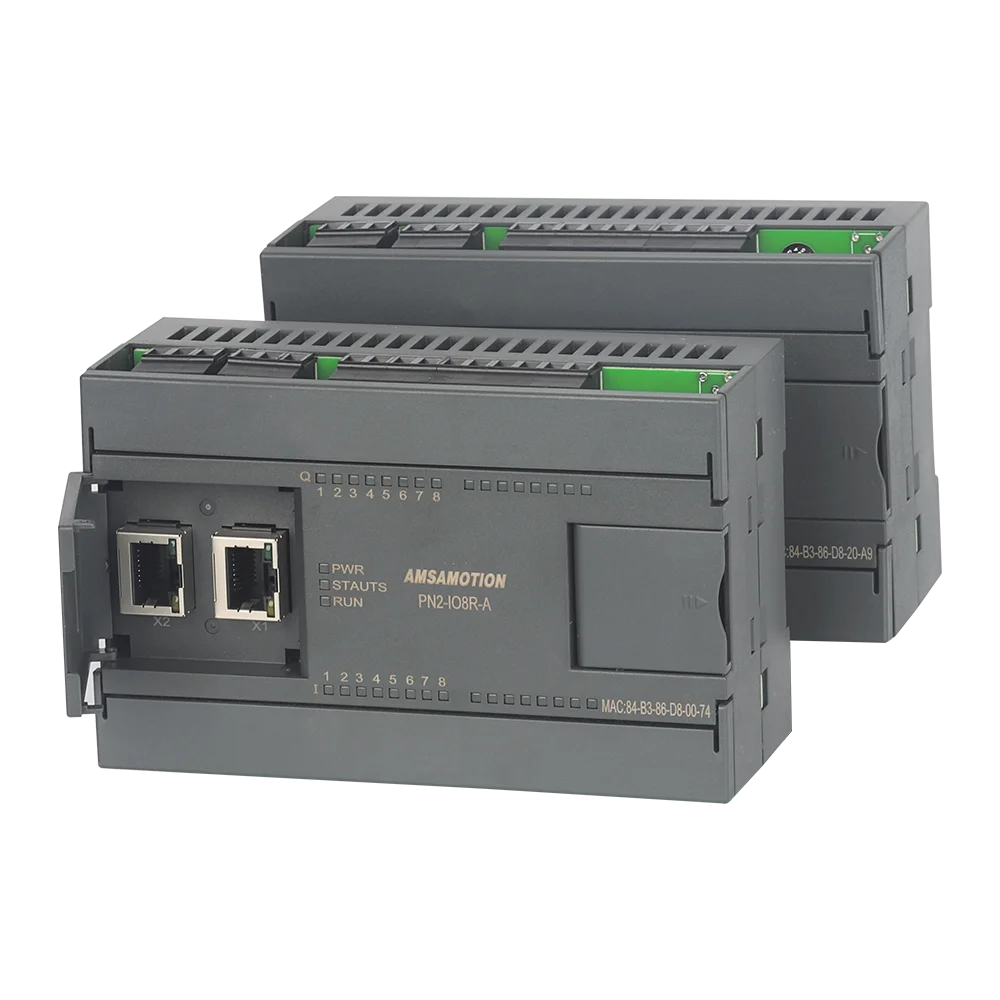

PN2-IO8R-A

PN1-IO16R

PN2-IO16R

PN1-IO16T

PN2-IO16T

Number of network port

1

2

1

2

1

2

Digital input

Input points

8

16

Input type

NPN/PNP

Input voltage

DC 20-28V

Insulated circuit

Optocoupler isolation

Digital onput

Output points

8

16

Input type

Relay output, normally open contact

PNP transistor

Output capacity

2A/bit

0.5A/bit

Insulated circuit

Mechanical insulation

Optocoupler isolation

Analog input

Input points

6

Input type

Voltage or current

Input range

0-10V or 0-20MA

Analog-to-digital conversion

0-10V corresponds to 0-10000
0-20MA corresponds to 0-20000

Conversion precision

12 bits

Error

1.2%FS

Analog output

output points

2

output type

Voltage or current

output range

0-10V or 0-20MA

Analog-to-digital conversion

0-10V corresponds to 0-10000
0-20MA corresponds to 0-20000

Conversion precision

12 bits

Error

1.2%FS
