Auto Trans Shifter Cross Shaft Linkage Bushing Spring Kit For Chevy OE:1377083
Specification:
Material: Metal
Color: Shown as pictures
Manufacturer Part Number:M463GB, 10236109, 10040797, 492346
Interchange Part Number:1377083, JO121, 15538092, 1380549, 12338114, 9423919, 3824159
Type:Spring, Bushing
Fitment Type: Direct Replacement
Feature:
Offering a new Automatic Transmission Shift Linkage Bushing and Spring Kit.
Bushing is made of hard white nylon. Replaces #1377083.
Spring measures 2 3/4" x 5/8". Replaces #10236109, 15538092, 1380549.
Measurements of bushing:
0.240" (6.25mm) Tall
0.4465" (11.5mm) Inside Diameter
1.0470" (26.65mm) Outside Diameter
Washer 3/4" OD x 7/16" ID x .060 thick
(Please allow 1-3 mm measuring deviation due to manual measurement.)
Hair Pin clip # 12338114 Old # 10040797

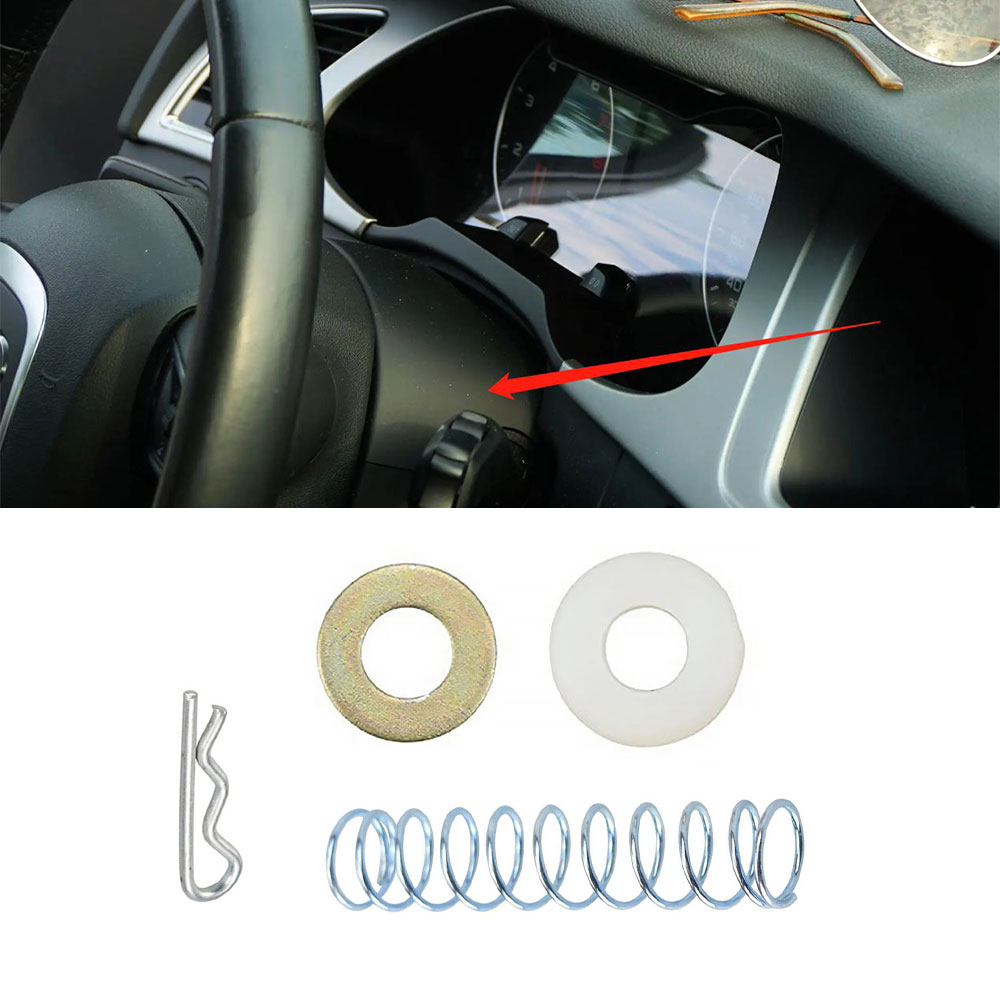

These Parts are located under the driver's side firewall at a bracket assembly bolted to the frame.
The range selector equalizer shaft end contains the spring with a washer mounted up against the white
plastic bushing that sits in the bracket.
This fits all GMA & G Body Cars along with most RWD
cars and trucks with automatic transmissions from 1967 - 1996.
Fitment:
This spring kit Fits (but not limited to) the following GMA & G Body models:
Fit For Regal / Grand National 1973 - 1987
Fit For Century 1973 - 1980
Fit For Skylark / GS 1967 - 1972
Fit For Chevrolet For Malibu 1967 - 1983
Fit For Chevrolet El Camino 1967 - 1987
Fit For Caballero / Sprint 1971 - 1987
Fit For Pontiac Grand Prix 1969 - 1987
Fit For Pontiac Grand Am 1973 - 1980
Fit For Pontiac LeMans / GTO1967 - 1981
Fit For ADDITIONAL APPLICATIONS:
Fit For Electra 1982-1986
Fit For Estate Wagon 1982, 1983, 1987, 1991
Fit For Lesabre 1982-1990
Fit For Regal 1982-1987
Fit For Roadmaster 1991-1996
Fit For Fleetwood 1982-1996
Fit For SPECIAL 1982-1984
Fit For Chevrolet For BLAZER 1982-1994
Fit For Chevrolet C10 1985-1986
Fit For Chevrolet C1500 1990-1994
Fit For Chevrolet C20 1985-1986
Fit For Chevrolet C2500 1990-1994
Fit For Chevrolet C30 1985-1986
Fit For Chevrolet C3500 1990-1994
Fit For Chevrolet For Caprice 1982-1996
Fit For Chevrolet El Camino 1982-1988
Fit For Chevrolet For HEARSE/LIMO 1991-1994
Fit For Chevrolet K10 1985-1986
Fit For Chevrolet K1500 1990-1994
Fit For Chevrolet K20 1985-1986
Fit For Chevrolet K2500 1990-1994
Fit For Chevrolet K30 1985-1986
Fit For Chevrolet K3500 1990-1994
Fit For Chevrolet Malibu 1982-1983
Fit For Chevrolet P20 1985-1990
Fit For Chevrolet P30 1985-1990
Fit For Chevrolet R10 1987-1991
Fit For Chevrolet R1500 1987-1991
Fit For Chevrolet R20 1987-1991
Fit For Chevrolet R2500 1987-1991
Fit For Chevrolet R30 1987-1991
Fit For Chevrolet R3500 1987-1991
Fit For Chevrolet S10 1982-1994
Fit For Chevrolet SUBURBAN 1985-1994
Fit For Chevrolet Tahoe1992-1994
Fit For Chevrolet V10 1987-1991
Fit For Chevrolet V20 1987-1991
Fit For Chevrolet V30 1987-1991
Fit For Chevrolet V3500 1987-1991
Fit For C10 1985-1986
Fit For C1500 1990-1994
Fit For C20 1985-1986
Fit For C2500 1990-1994
Fit For C30 1985-1986
Fit For C3500 1990-1994
Fit For Forward Control 1985-1991
Fit For K10 1985-1986
Fit For K1500 1990-1994
Fit For K20 1985-1986
Fit For K2500 1990-1994
Fit For K30 1985-1986
Fit For K3500 1992-1994
Fit For P2500 1985-1990
Fit For P3500 1985-1990
Fit For Pickup 1982-1994
Fit For Postal 1987-1995
Fit For R1500 1987-1989
Fit For R2500 1987-1989
Fit For Sierra 1992-1994
Fit For TYPHOON 1991-1994
Fit For V1500 1987-1989
Fit For V2500 1987-1989
Fit For YUKON 1992-1994
Fit For Pontiac Grand Prix 1982-1987
Fit For Pontiac Parisienne 1982-1986
Fit For Pontiac Safari 1987-1989
Package Include:

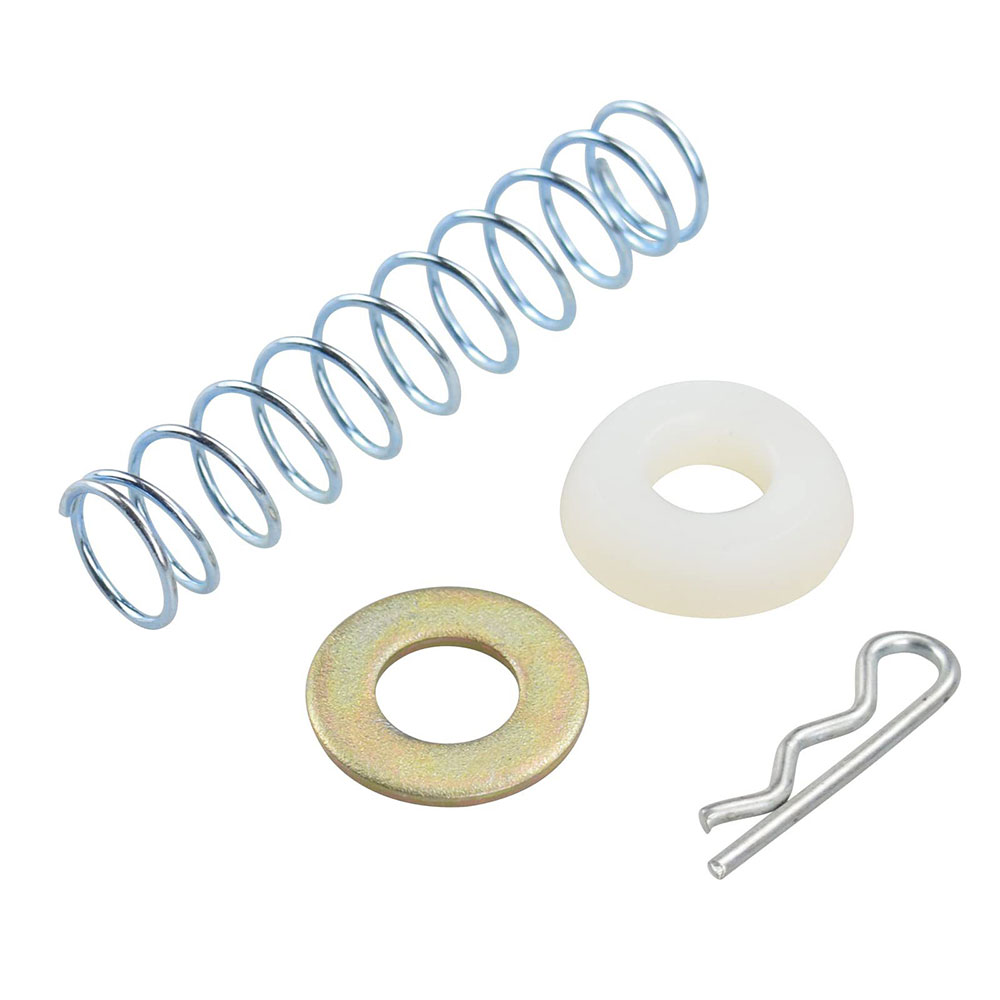

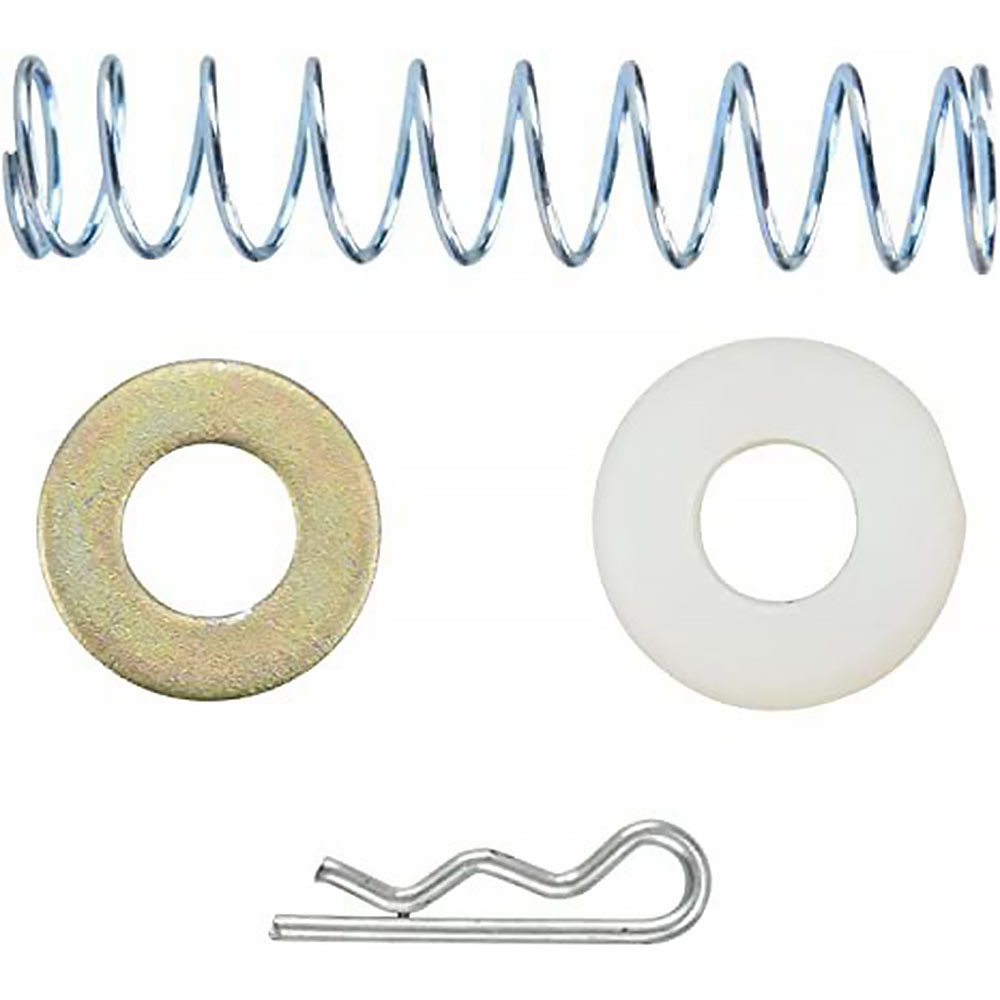

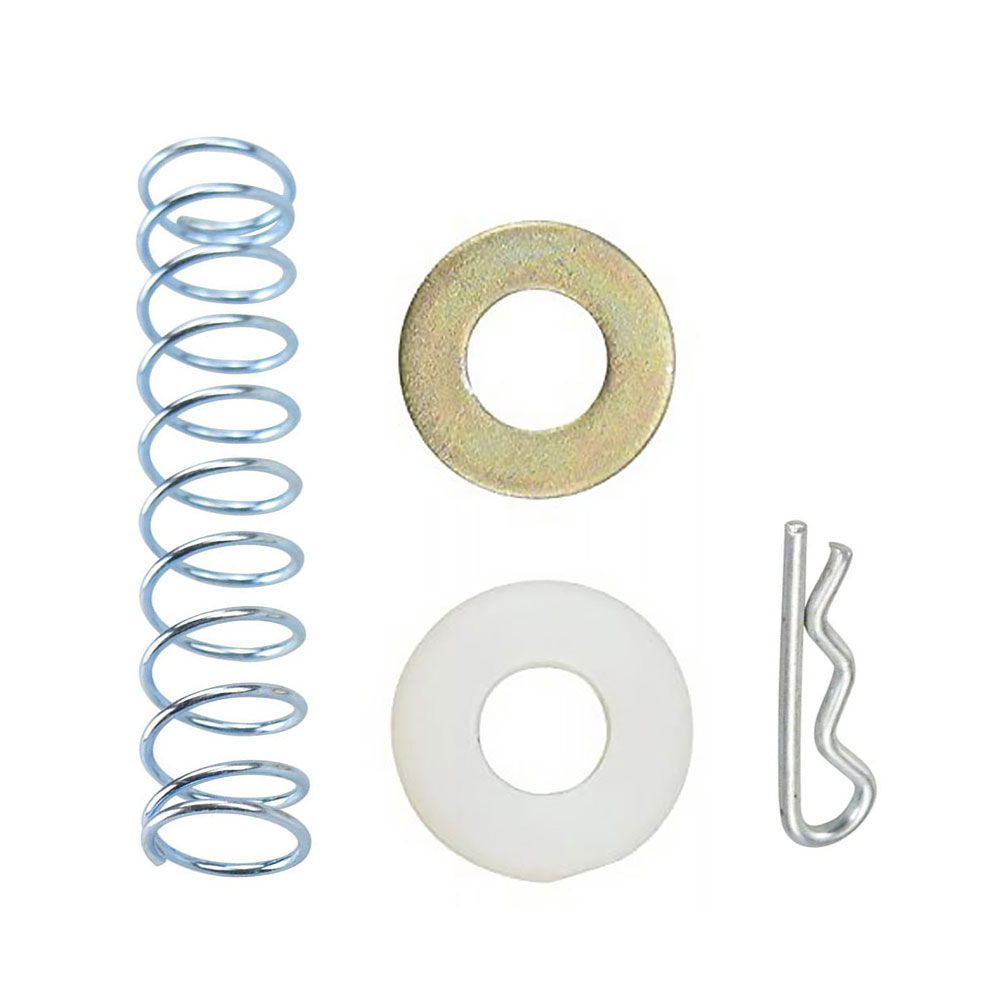

1 Set Auto Trans Shifter Cross Shaft Linkage Bushing Spring Kit (show as pictures)
(instruction manual is not included.)
