The design reduces aero drag, is more laterally stiff, and has 30% greater impact resistance.
1.If you’re looking for a premium all-rounder that is easy to handle, and offers a lightweight feel with sharp handling, look no
further than the pro 40 disc
2.PRO 50mm disc’s are a great choice if you want a fast mid-depth rim that will give you an edge over the competition.
3.Compared to the smooth sidewalls of traditional rims, the new waved profile features reduced aero drag, boosted lateral
stiffness, and have 30% greater impact resistance.
Rider feedback shows that these laterally stiff rims feel smooth yet responsive, and are FAST!
4.All Rims XL premium lighter model,and with our high-end hub ,build with sapim cx-ray spokes,to make the wheels lighter!
For bike store after you order and test the first wheels,then you know the quality ,the others all we have discount price for more
order,please contact me to Co-operation.
At DFS, we make high-performance rims and other cycling parts from premium carbon fiber.
1.The special material formula makes the rim stiffer, the quality more stable, and it will not deform after long-term use (general
rims will deform in about a year, which will appear as bulging spoke holes, bending, and deflection of the rim)
2.The unique production process optimizes the finished product and further enhances the strength of the rim.
3.Lighter rims are made of T700 and T800, with reinforcements at key positions, which not only reduces weight but also increases
strength, achieving both rigidity and softness.
Our materials are Toray T700/T800, better ratio, better design, stronger resin, more scientific stacking, so that our carbon fiber
rims have good enough quality!
If you're looking for or looking for carbon fiber wheels, try ours, our rims are competition grade. One day you will look at the
wheels on the car and exclaim, "It's been a few years, I can't find a reason to change to a new wheel!"
any question just text me !
Description
Material:carbon fiber-toray T700
Size:700C
Finish: UD matte
Rim depth:40/50mm
Rim width:28mm
Rim type:tubuless
Decal:If you need decals, you can contact me
HUb:R2 DISC rachet system only 286g hub black
Center Lock fit with :
Thrux Axle:12*100-12*142
Spoke Holes:24-24H
Spoke color:black
Nipple color: sapim cx-ray
Brake line :No brake line(rim brake with novatec hub)
Max Tire Pressure (with 25C): Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar
Spoke Tension: 120~135kgf front disc side and rear drive side
Yaw:0.2mm
Max Cyclist Weight (on flat ground): 130kg/ 287lbs
Fit frame:for road bike
free hub :HG OR XDR (extra $20)
Warranty:1 year
Weight wheelset :
40mm 1290g+-30g
45mm 1358g+-30g
50mm 1386g+-30g
Recommended Tire Width:23C~43C

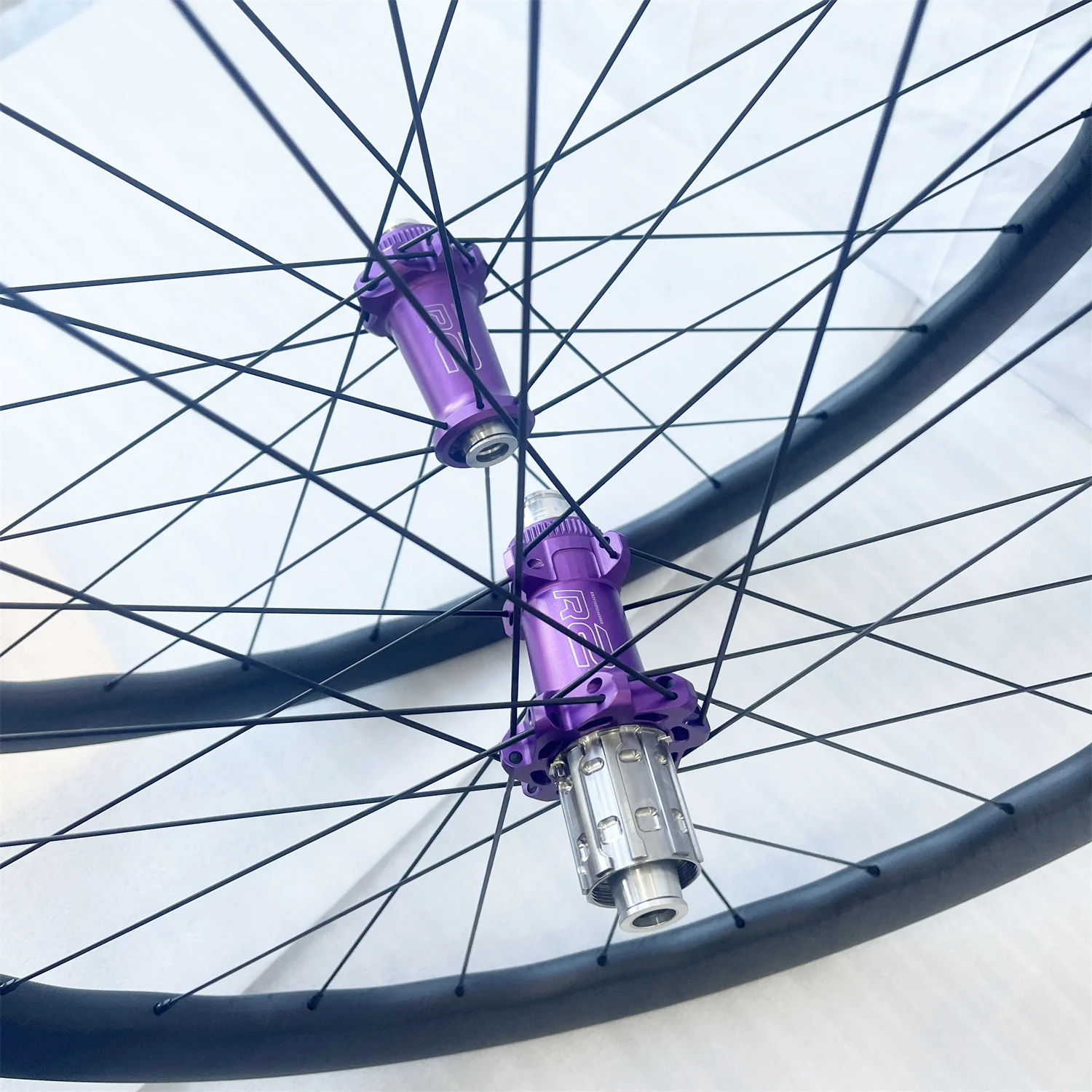

About the hub
why choose R2 ？
1.Professional competition hub, DFS R2
2..More streamlined, more efficient and smoother SSF patented ratchet structure;
3.Imported 7075 T651 aluminium alloy + TC4 titanium alloy precision CNC processing; 、4.Super lightweight at 280+g. Those that are
lighter than it don't have as good geometry and are not as durable;
5.74mm large flange 2:1 direct pull. Ultra-wide bearing spacing and flange distance, significantly enhancing driving rigidity and
lateral rigidity;
6.Preload adjustment design effectively increases lubricity and extends bearing life;
7.45/72T high-density ratchets are optional;
8.EZO sealed contact steel ball bearings / CEMA single-sided sealed contact steel ball bearings / Enduro AC15 angular contact
bearings / Enduro XD15 ceramic bearings / CS ceramic bearings are optional; 6903 + 6803*5 large-size bearing configuration;
9.Supports customization of various colors, both single color and gradient color; Minimalist structure design, tool-free
disassembly and maintenance, extremely low failure rate;
10.Super strong warranty: Lifetime warranty except for bearings!
TECH
The latest advancement of our popular Pro All Road Series, our new wave profile offers significant performance benefits.
The design reduces aero drag, is more laterally stiff, and has 30% greater impact resistance.
AR50 disc’s are a great choice if you want a fast mid-depth rim that will give you an edge over the competition.
